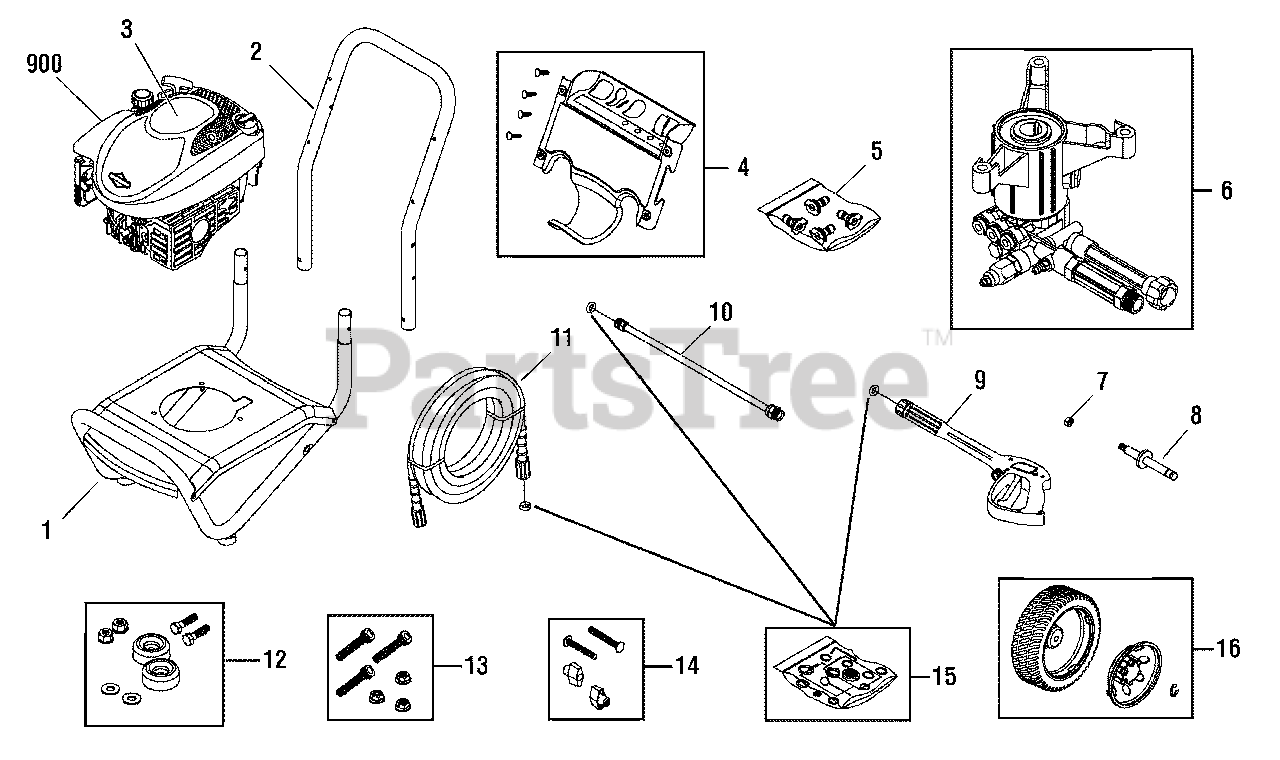

020420-1 - Briggs & Stratton 2,500 PSI Pressure Washer Main Unit (313645) Parts Diagram

2,500 PSI Pressure Washer

Main Unit (313645) Parts Diagram

  • Title

1

Briggs & Stratton 312028GS

BASE

$

$

Not available

2

Briggs & Stratton 199110BRGS

HANDLE

$80.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209144GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 310924GS

BILLBOARD

$61.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$4.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 204971GS

KIT, QC Nozzles

$

$

Not available

--

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AEGS

NOZZLE, QC, Red

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC, White

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983XGS

NOZZLE, QC, Yellow

$11.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 202274GS

PUMP
(Superseded to 207365GS)

$248.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 015X68MA

NUT
(Superseded to 703333)

$4.99

$

In Stock, Qty 15

0

8

Briggs & Stratton 313032GS

AXLE
(Superseded to 315134GS)

$30.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 204627GS

GUN
(Superseded to 84003228)

$

$

Not available

10

Briggs & Stratton 207784GS

EXTENSION, QC
(Superseded to 706595)

$50.99

$

In Stock, Qty 7

0

11

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$86.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 192310GS

MOUNT, Vibration

$10.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 203526GS

KIT, Hardware, Pump Mounting

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.99

$

In Stock, Qty 9

0

15

Briggs & Stratton 196002GS

KIT, O-Rings
(Superseded to 705001)

$19.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 209568GS

KIT, Wheel
(Superseded to 203083GS)

$45.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 313615GS

MANUAL, Operator's

Note: (Not Illustrated)

$

$

Not available

--

Murray 794693

LABEL, Warning

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$13.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 793191

COVER, Static Label

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199272GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory, Not Included)

$12.99

$

In Stock, Qty 20+

0
