020426-2 - Brute 2,400 PSI Pressure Washer Main Unit (313779) Parts Diagram

2,400 PSI Pressure Washer

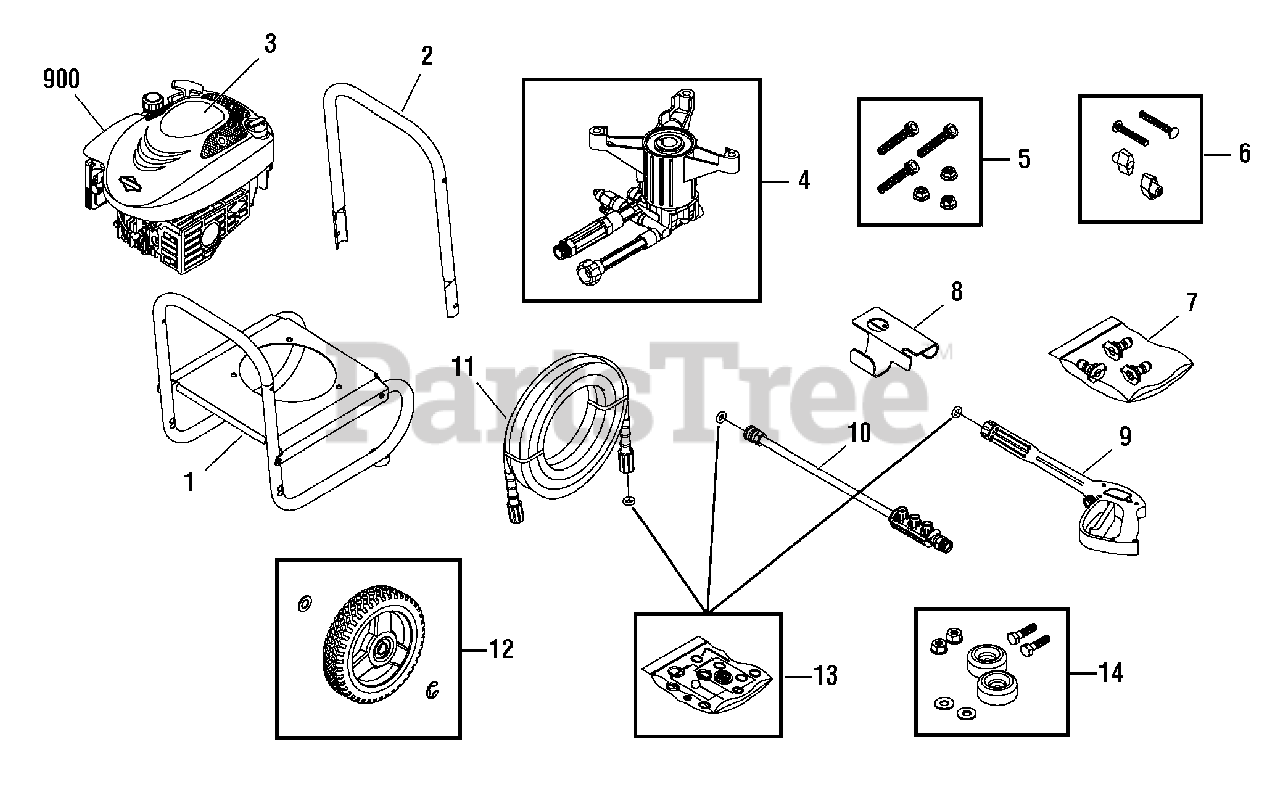

Main Unit (313779) Parts Diagram

  • Title

1

Briggs & Stratton 209222GS

BASE

$176.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 206781ZGS

HANDLE

$95.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 311044GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 311554GS

PUMP
(Superseded to 706385)

$253.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 203526GS

KIT, Hardware, Pump Mounting

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 2 left!

0

7

Briggs & Stratton 311136GS

KIT, QC Nozzles

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

NOZZLE, QC Green

$10.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 206813GS

HOLDER, ACC

$9.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 8

0

9

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 207790GS

EXTENSION, QC

$47.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 208619GS

KIT, Wheel

$34.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 196002GS

KIT, O-Ring
(Superseded to 705001)

$18.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 192310GS

KIT, Water Inlet

$9.99

$

In Stock, only 4 left!

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 313776GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 199272GS

OIL BOTTLE
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 312876GS

AXLE

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Murray 794693

LABEL, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311052GS

DECAL, Unit

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207289GS

DECAL, Brute

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0
