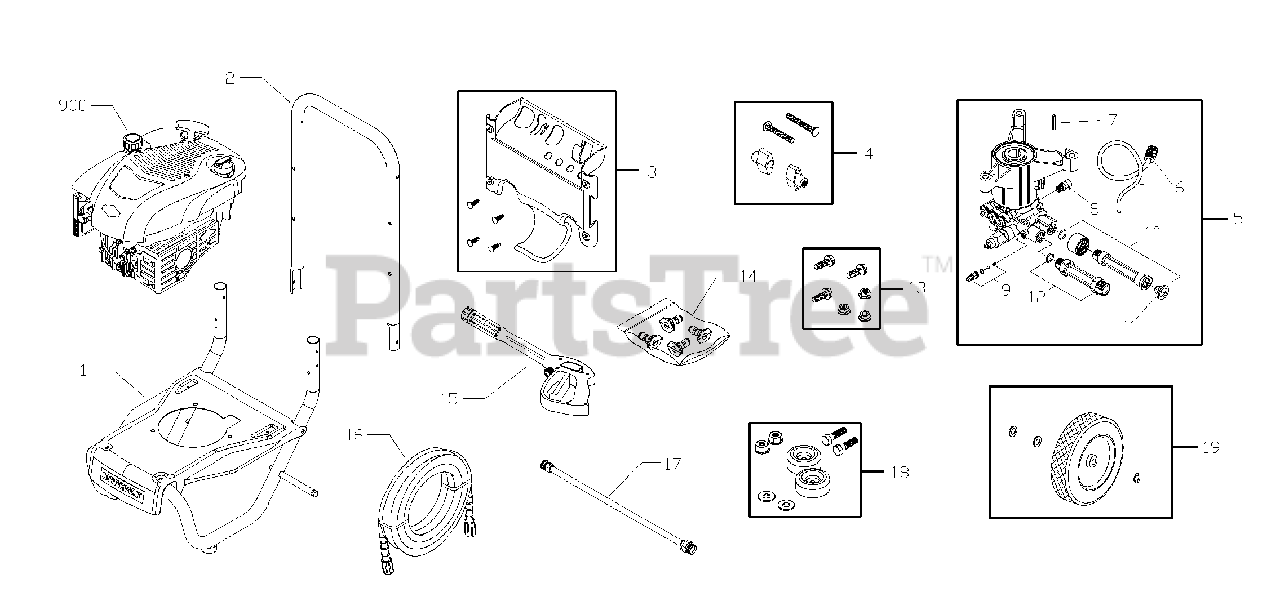

020431-0 - Craftsman 2,500 PSI Pressure Washer Main Unit Parts Diagram

2,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 206033GS

BASE

$

$

Not available

2

Briggs & Stratton R204650GS

HANDLE

$76.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 311094GS

BILLBOARD

$58.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS, Tree

$3.99

$

In Stock, Qty 8

0

4

Briggs & Stratton B2203GS

KIT, Hardware Handle

$5.49

$

In Stock, only 2 left!

0

5

Briggs & Stratton 202274GS

PUMP
(Superseded to 207365GS)

Note: (Includes Ref. Nos. 6, 7, 8, 9, 10, 11 & 12)

$234.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 189971GS

KIT, Chemical Hose

$

$

Not available

7

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 17

0

9

Briggs & Stratton 192914GS

KIT, Chemical Injection

$24.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 201496GS

KIT, Water Inlet

$46.99

$

In Stock, Qty 6

0

11

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 201497GS

FITTING

$28.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 203526GS

KIT, Hardware Pump Mounting

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204971GS

KIT, QC Nozzles

$35.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AEGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 195983XGS

NOZZLE, QC Yellow

$10.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

18

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

19

Briggs & Stratton 208797GS

KIT, Wheel

$54.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 7026257MA

WASHER, Wave

$4.49

$

In Stock, only 2 left!

0

900

-----

*ENGINE

$

$

Not available

--

Briggs & Stratton 311108GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 205411GS

AXLE

Note: (Not Illustrated)

$2.99

$

Usually ships in 2-12 days

0

--

Murray 794693

DECAL, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208648GS

DECAL, Shroud

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187

QUICK CONNECT, Garden Hose
(Superseded to 7175187GS)

Note: (Optional Accessory)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

ACCESSORY QUICK CONNECT
(Superseded to 312981GS)

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175124

ROTATING BRUSH KIT

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175122

REPLACEMENT HOSE, 30'

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O-RING REPAIR KIT
(Superseded to 196002GS)

Note: (Optional Accessory)

$18.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 7175129

NOZZLE, Turbo

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175121

EXTENSION HOSE, 25'

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174402

HOSE REEL
(Superseded to 192648GS)

Note: (Optional Accessory)

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174403

PUMP SAVER

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174404

Project Pro® PerfectMix™ Multi-Purpose and Vehicle Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174405

Project Pro® PerfectMix™ Concrete, Brick, and Tile Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174406

Project Pro® PerfectMix™ Mold and Mildew Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable
