020436-0 - Craftsman 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

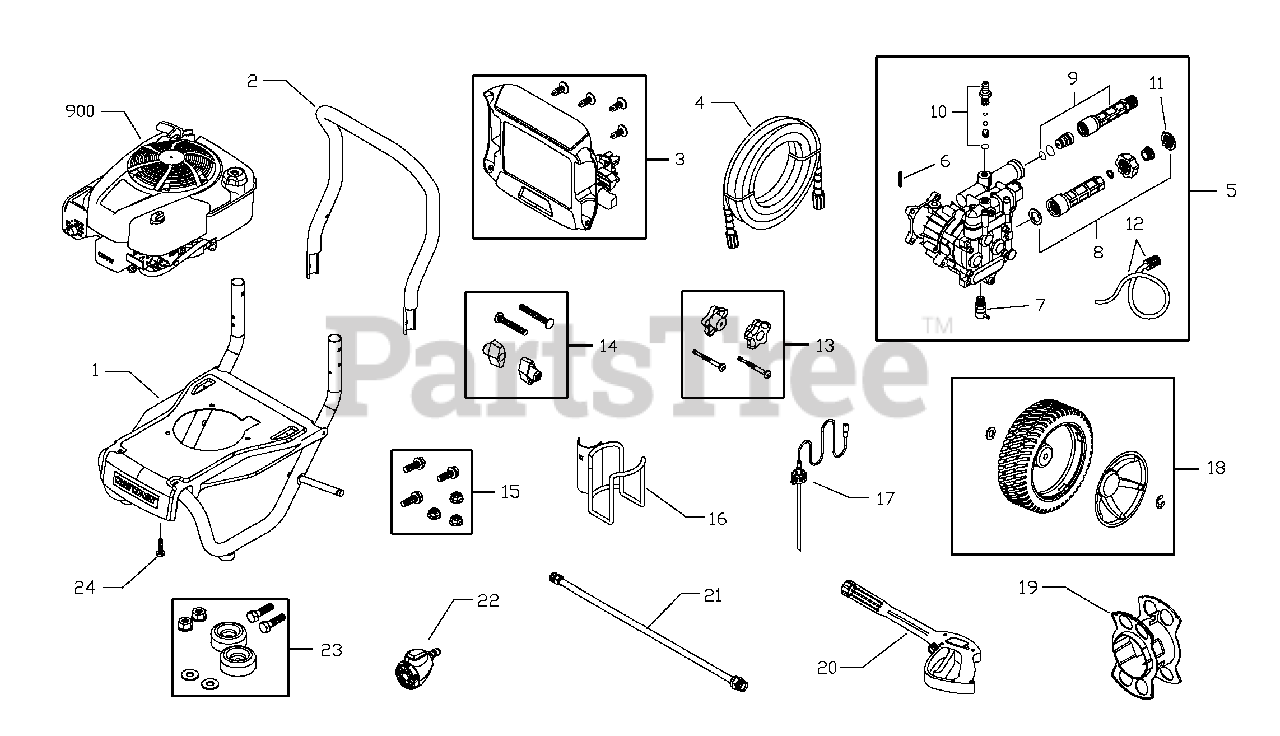

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 205961GS

BASE
(Superseded to 703860)

$421.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205413GS

AXLE
(Superseded to 312393GS)

$40.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B204257GS

HANDLE

$62.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 311147GS

BILLBOARD

$77.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 8

0

4

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 206376GS

PUMP

Note: (Includes Ref. Nos. 6, 7, 8, 9, 10, 11 & 12)

$385.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 16

0

8

Briggs & Stratton 206374GS

KIT, Water Inlet

$23.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 206375GS

KIT, Water Outlet

$120.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 190593GS

KIT, Chemical Injection

$

$

Not available

11

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 189971GS

KIT, Chemical Hose

$

$

Not available

13

Briggs & Stratton 205910GS

KIT, Hardware Handle

$22.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2203GS

KIT, Hardware Handle

$5.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 206566GS

WIREFORM

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 204658GS

HOSE

$30.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205964GS

KIT, Wheel

$

$

Not available

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 200517GS

HUBCAP

$16.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 204684GS

WRAP, Hose

$34.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

22

Briggs & Stratton 209093GS

NOZZLE, QC
(Superseded to 314509GS)

$

$

Not available

23

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 75246GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

900

-----

*ENGINE

$

$

Not available

--

Briggs & Stratton 311159GS

MANUAL, Operator's

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton AB3061BGS

OIL

$

$

Not available

--

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 208813GS

DECAL, Shroud
(Superseded to 314061GS)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 794693

DECAL, Warning

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187

QUICK CONNECT, Garden Hose
(Superseded to 7175187GS)

Note: (Optional Accessory)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

ACCESSORY QUICK CONNECT
(Superseded to 312981GS)

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175124

ROTATING BRUSH KIT

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175122

REPLACEMENT HOSE, 30'

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O-RING REPAIR KIT
(Superseded to 196002GS)

Note: (Optional Accessory)

$18.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 7175129

NOZZLE, Turbo

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175121

EXTENSION HOSE, 25'

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174402

HOSE REEL
(Superseded to 192648GS)

Note: (Optional Accessory)

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174403

PUMP SAVER

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7133386

CARTRIDGE, Fresh Start

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174404

Project Pro® PerfectMix™ Multi-Purpose and Vehicle Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174405

Project Pro® PerfectMix™ Concrete, Brick, and Tile Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174406

Project Pro® PerfectMix™ Mold and Mildew Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable
