020467-0 - Craftsman 2,500 PSI Pressure Washer Main Unit (314257) Parts Diagram

2,500 PSI Pressure Washer

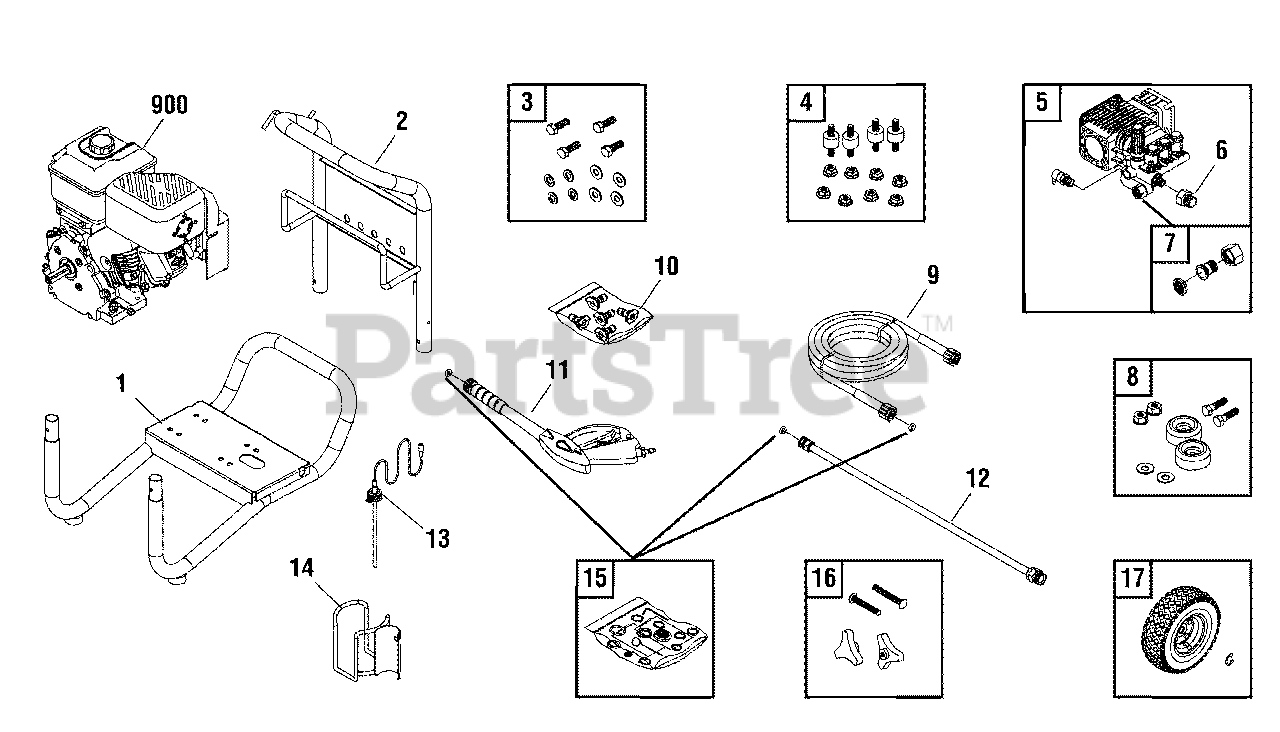

Main Unit (314257) Parts Diagram

  • Title

1

Briggs & Stratton 313188BTGS

BASE

$

$

Currently unavailable

2

Briggs & Stratton 313186BTGS

HANDLE

$

$

Currently unavailable

3

Briggs & Stratton 202771GS

KIT, Hardware, Pump Mounting

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 314816GS

PUMP

$620.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 314605GS

ADAPTER

$19.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 199310GS

ADAPTER, Garden Hose

$12.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 209283GS

HOSE

$106.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 314826GS

KIT, QC Nozzles

$

$

Currently unavailable

--

Briggs & Stratton 195983SGS

NOZZLE, QC Red

$9.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

NOZZLE, QC Green

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 195846ZZGS

NOZZLE, QC Black

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 193814GS

EXTENSION, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 204658GS

HOSE, Chemical

$30.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 206566GS

WELDMENT

$27.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 196002GS

O-RINGS
(Superseded to 705001)

$18.99

$

In Stock, Qty 6

0

16

Briggs & Stratton 203040GS

KIT, Hardware, Handle

$6.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 311470GS

KIT, Wheel

$65.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 15T212-0111-F8

* ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 314253GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 191267ABGS

AXLE

Note: (Not Illustrated)

$22.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139DGS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 30809GS

GROMMET

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton AB3061GS

OIL
(Superseded to BB3061GS)

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 314247GS

DECAL, Engine

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 314248GS

DECAL, Air Cleaner

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187

GARDEN HOSE QUICK CONNECT
(Superseded to 7175187GS)

Note: (Optional Accessory)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

ACCESSORY QUICK CONNECT
(Superseded to 312981GS)

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175124

ROTATING BRUSH KIT

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175122

30' REPLACEMENT HOSE

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O-RING REPAIR KIT
(Superseded to 196002GS)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 6

0

--

Briggs & Stratton 7175129

TURBO NOZZLE

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175121

25' EXTENSION HOSE

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174402

HOSE REEL
(Superseded to 192648GS)

Note: (Optional Accessory)

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174403

PUMP SAVER

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7133386

CARTRIDGE, Fresh Start

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174404

Project Pro® PerfectMix™ Multi-Purpose & Vehicle Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174405

Project Pro® PerfectMix™ Concrete, Brick & Tile Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174406

Project Pro® PerfectMix™ Mold and Mildew Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable
