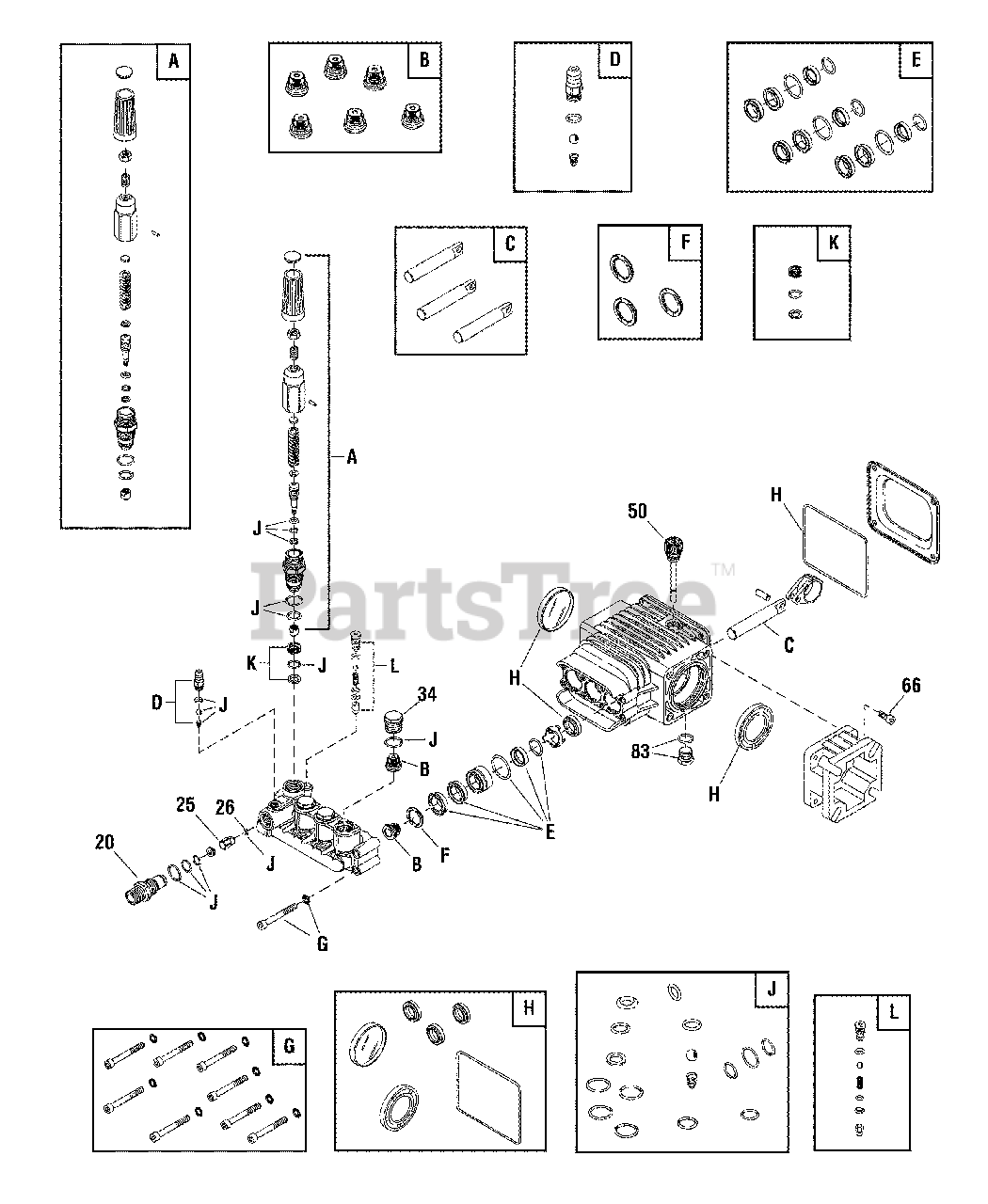

020467-0 - Craftsman 2,500 PSI Pressure Washer Pump (202302) Parts Diagram

2,500 PSI Pressure Washer

Pump (202302) Parts Diagram

  • Title

20

Briggs & Stratton 198851GS

INJECTER-DETERGENT

$48.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 204860GS

JET

$

$

Not available

26

Briggs & Stratton 204859GS

O-RING

$5.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 198850GS

CAP-CHECK VALVE

$21.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 198849GS

DIPSTICK

$35.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 198297GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 203034GS

PLUG, Drain

$15.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 198736GS

* KIT, Unloader

$142.99

$

In Stock, only 4 left!

0

B

Briggs & Stratton 198843GS

* KIT, Check Valve

$91.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 198844GS

* KIT, Piston

$303.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 192914GS

* KIT, Chemical Injection

$26.99

$

In Stock, only 3 left!

0

E

Briggs & Stratton 198845GS

* KIT, Water Seal

$174.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 198848GS

* KIT, Support Ring

$14.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton 198852GS

* KIT, Hardware

$34.99

$

In Stock, only 1 left!

0

H

Briggs & Stratton 198846GS

* KIT, Oil Seals

$107.99

$

Usually ships in 2-12 days

0

J

Briggs & Stratton 198847GS

* KIT, O-Ring

$28.99

$

In Stock, only 2 left!

0

K

Briggs & Stratton 202902GS

* KIT, Unloader Seat

$161.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 202800GS

* KIT, Unloader

$73.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B2384GS

FILTER, Garden Hose

Note: (Not Illustrated)

$4.99

$

In Stock, Qty 9

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6033

OIL

Note: (Optional Accessory)

$24.99

$

Usually ships in 2-12 days

0
