020476-0 - Briggs & Stratton 2,700 PSI Pressure Washer Main Unit (315258) Parts Diagram

2,700 PSI Pressure Washer

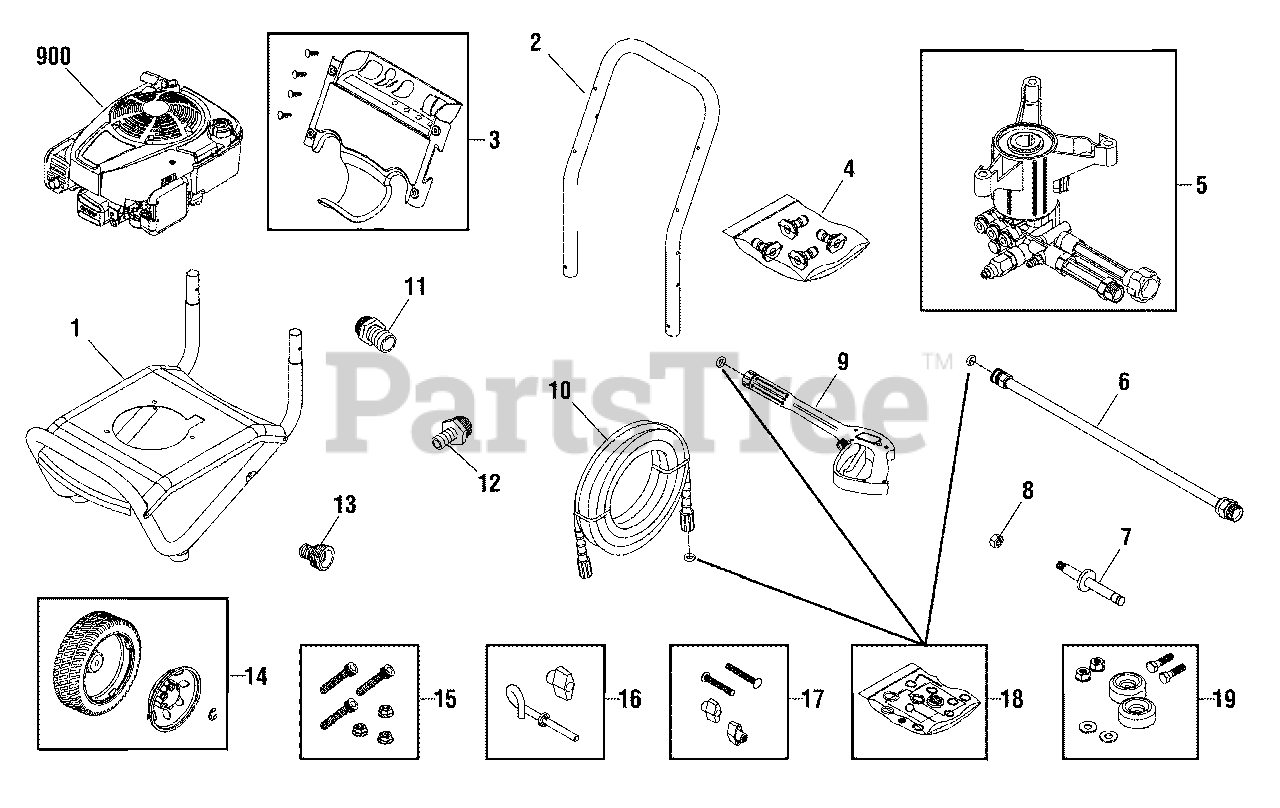

Main Unit (315258) Parts Diagram

  • Title

1

Briggs & Stratton 315575GS

BASE

$322.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 199110BSGS

HANDLE

$75.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 315250GS

BILLBOARD

$100.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 6

0

4

Briggs & Stratton 315399GS

KIT, QC Nozzles

$34.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983UGS

NOZZLE, QC Green

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 311553GS

PUMP

$289.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 207784GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 8

0

7

Briggs & Stratton 313032GS

AXLE

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 7091585SM

NUT
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

9

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 202017GS

HOSE

$

$

Not available

11

Briggs & Stratton 192015GS

FITTING, 3/4

$8.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192014GS

FITTING, 1/2

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 95456GS

QC, Male
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 209568GS

KIT, Wheel
(Superseded to 203083GS)

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 315139GS

KIT, Hardware, Pump Mounting

$9.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205912GS

GUIDE, Rope

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 2 left!

0

18

Briggs & Stratton 196002GS

KIT, O-Rings
(Superseded to 705001)

$18.99

$

In Stock, Qty 5

0

19

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, only 4 left!

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 315255GS

MANUAL, Operator

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200171GS

TAG, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315367GS

DECAL, Shroud

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 199272GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0
