020477-0 - Briggs & Stratton 3,000 PSI Pressure Washer Main Unit (315267) Parts Diagram

3,000 PSI Pressure Washer

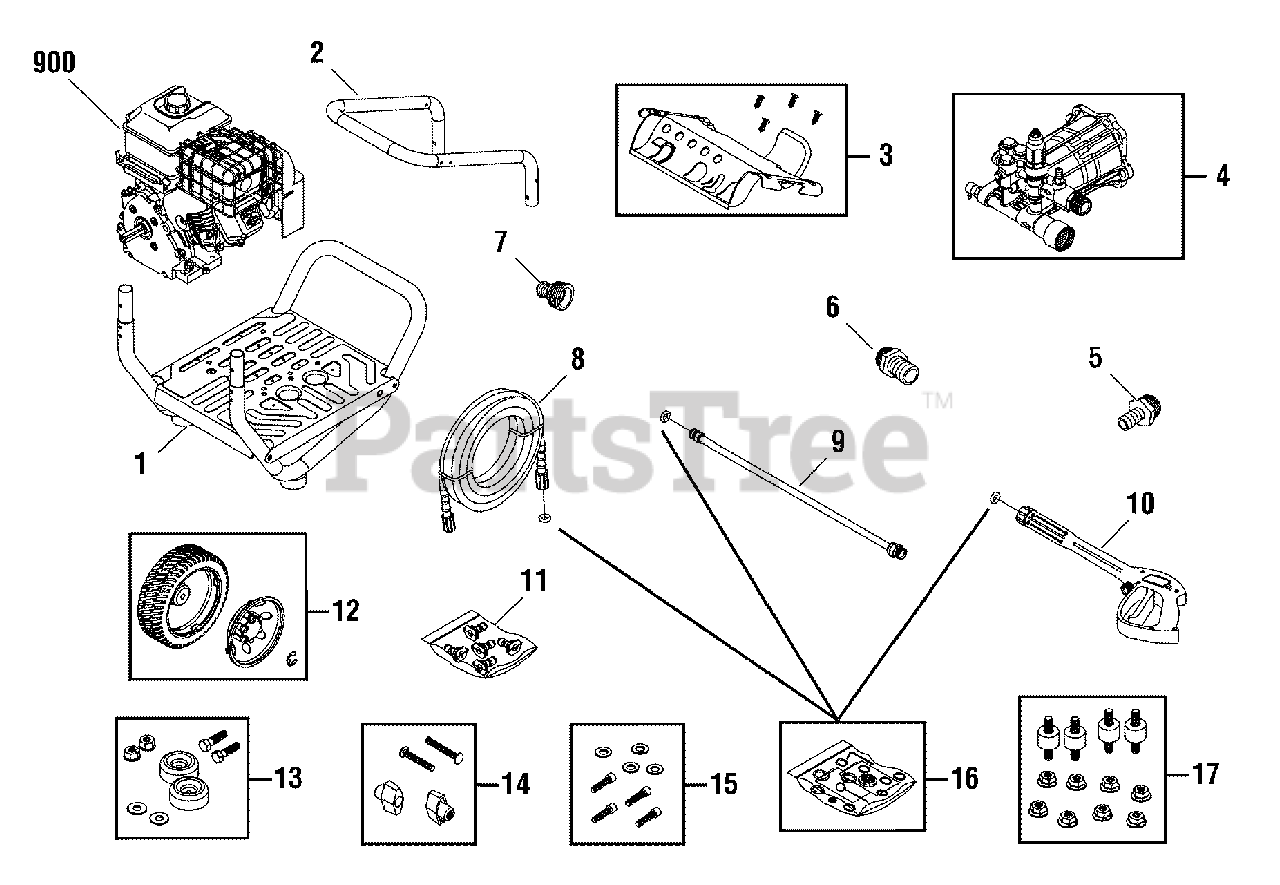

Main Unit (315267) Parts Diagram

  • Title

1

Briggs & Stratton 314563GS

BASE

$397.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 201499BSGS

HANDLE

$106.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 315259GS

BILLBOARD

$94.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS

$3.99

$

In Stock, Qty 8

0

4

Briggs & Stratton 318112GS

PUMP

$551.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192014GS

FITTING, 1/2

$7.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192015GS

FITTING, 3/4

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 95456GP

QC, Male

$

$

Currently unavailable

8

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 207784GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

10

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 315280GS

KIT, QC Nozzles

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983SGS

NOZZLE, QC Red

$9.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983UGS

NOZZLE, QC Green

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983VGS

NOZZLE, QC White

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 203083GS

KIT, Wheel

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 192553GS

MOUNT, Vibration

$16.99

$

In Stock, Qty 8

0

14

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 196002GS

KIT, 0-Ring
(Superseded to 705001)

$18.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

In Stock, only 2 left!

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 315264GS

MANUAL, Operator

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139DGS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207500GS

DECAL, Engine

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207502GS

DECAL, Air Cleaner

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208673GS

VALVE, Thermal Relief

Note: (Not Illustrated)

$14.99

$

In Stock, Qty 16

0

--

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 201314GS

AXLE

Note: (Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 695755

KNOB, Throttle

Note: (Not Illustrated)

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 200171GS

TAG, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0
