020478-0 - Briggs & Stratton 3,200 PSI Pressure Washer Main Unit (315277) Parts Diagram

3,200 PSI Pressure Washer

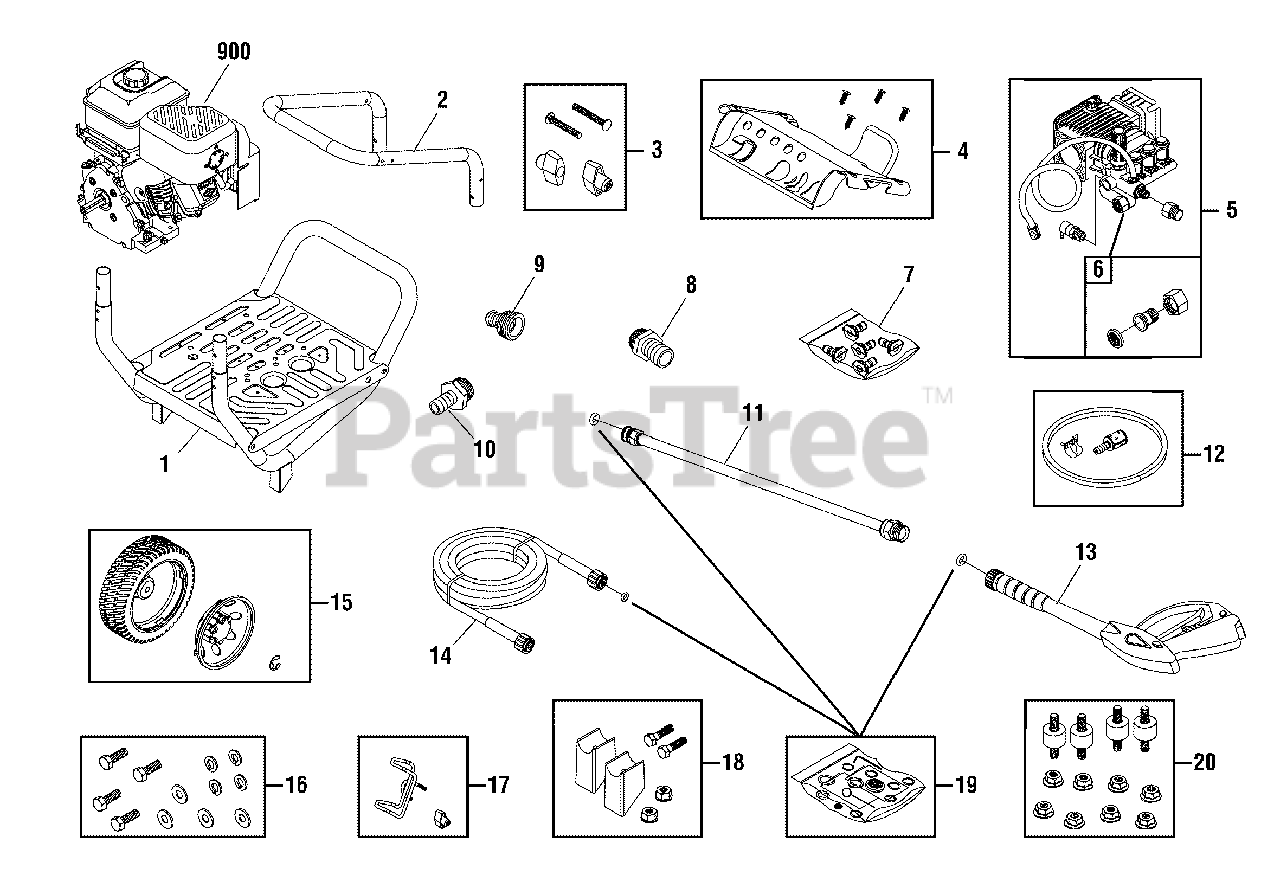

Main Unit (315277) Parts Diagram

  • Title

1

Briggs & Stratton 315563GS

BASE

$

$

Not available

2

Briggs & Stratton 201499BSGS

HANDLE

$106.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 2 left!

0

4

Briggs & Stratton 315269GS

BILLBOARD

$

$

Currently unavailable

--

Briggs & Stratton B1797GS

CLIPS

$3.99

$

In Stock, Qty 8

0

5

Briggs & Stratton 314816GS

PUMP

$620.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 15

0

--

Briggs & Stratton 314605GS

CONNECTOR

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 199310GS

ADAPTER, Garden Hose

$12.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 315280GS

KIT, QC Nozzles

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983SGS

NOZZLE, QC Red

$9.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983UGS

NOZZLE, QC Green

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983VGS

NOZZLE, QC White

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192015GS

FITTING, 3/4

$8.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 95456GS

QC, Male
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 192014GS

FITTING, 1/2

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 207785GS

EXTENSION, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 192796GS

HOSE, Chemical

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 209283GS

HOSE

$106.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 203083GS

KIT, Wheel

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 202771GS

KIT, Hardware, Pump Mounting

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 201661GS

WIREFORM

$36.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 209884GS

KIT, Vibration Mount

$15.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 196002GS

KIT, 0-Ring
(Superseded to 705001)

$18.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

In Stock, only 2 left!

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 315274GS

MANUAL, Operator

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199272GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 201314GS

AXLE

Note: (Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 695755

KNOB, Throttle

Note: (Not Illustrated)

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 23139DGS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 276928

DECAL, Recoil

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 202517GS

DECAL, Engine

Note: (Not Illustrated)

$22.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202518GS

DECAL, Air Cleaner

Note: (Not Illustrated)

$22.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200171GS

TAG, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0
