020488-00 - Troy-Bilt 2,800 PSI Pressure Washer Main Unit (316071) Parts Diagram

2,800 PSI Pressure Washer

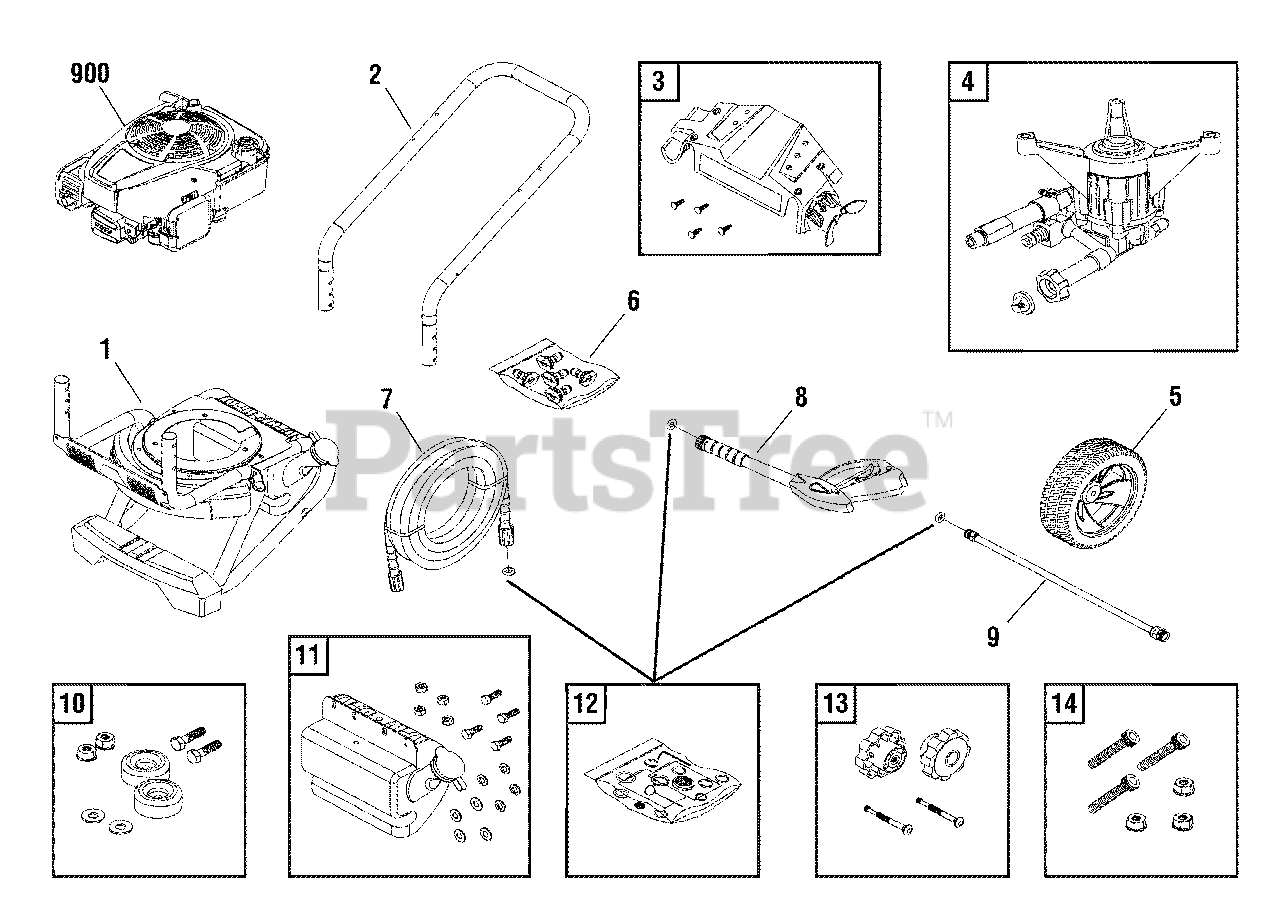

Main Unit (316071) Parts Diagram

  • Title

1

Briggs & Stratton 316946GS

BASE

$266.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 310628BWGS

HANDLE

$117.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 316048GS

BILLBOARD

$90.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 311966GS

PUMP

$315.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 16

0

--

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, only 3 left!

0

5

Briggs & Stratton 313837GS

WHEEL

$55.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 317051GS

KIT, QC Nozzles

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983WGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983YGS

NOZZLE, QC Green

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983ZGS

NOZZLE, QC White

$10.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 195983APGS

NOZZLE, QC Cyan

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AQGS

NOZZLE, QC Magenta
(Superseded to 706155)

$11.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 310741GS

HOSE
(Superseded to 708723)

$59.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 209094GS

GUN
(Superseded to 704310)

$116.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207784GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

10

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 316061GS

TANK, Chemical

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310805GS

CAP, Chemical Tank
(Superseded to 312369GS)

$5.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 196002GS

KIT, O-Rings
(Superseded to 705001)

$18.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 312099GS

KIT, Hardware, Handle

$25.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 315139GS

KIT, Hardware, Pump Mounting

$9.99

$

Usually ships in 2-12 days

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 316068GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199272GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315543GS

PUSHNUT

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton A1040RGS

HOSE, Chemical

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 311281GS

DECAL, Tank

Note: (Not Illustrated)

$9.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311247GS

DECAL, Gun

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL, Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314957GS

AXLE

Note: (Not Illustrated)

$15.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
