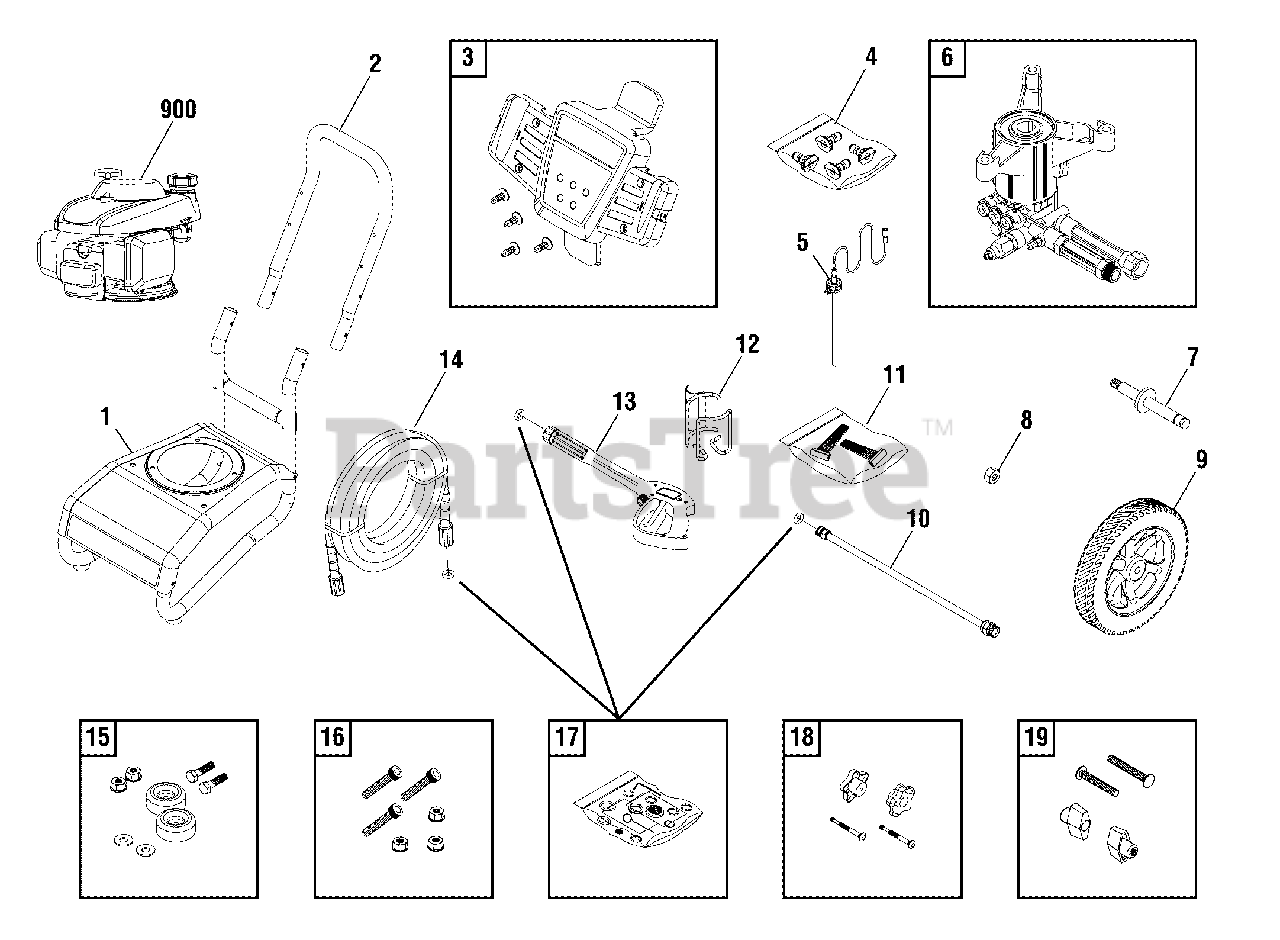

020549-00 - Craftsman 2,700 PSI Pressure Washer Main Unit (319244) Parts Diagram

2,700 PSI Pressure Washer

Main Unit (319244) Parts Diagram

  • Title

1

Briggs & Stratton 317098GS

BASE
(Superseded to 704064)

$263.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 314787BNGS

HANDLE

$86.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 319863GS

BILLBOARD

$86.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 208041GS

KIT, QC Nozzle

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AKGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AJGS

NOZZLE, QC Red

$9.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983AMS

NOZZLE, QC White

$

$

Currently unavailable

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 204658GS

HOSE

$30.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 311553GS

PUMP

$289.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 315134GS

AXLE

$28.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 703347

NUT

$4.99

$

In Stock, Qty 17

0

9

Briggs & Stratton 313835GS

WHEEL

$64.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 207784GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

11

Briggs & Stratton 317099GS

KIT, Strap

$8.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 206566GS

WIREFORM

$27.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 315033GS

KIT, Hardware, Pump Mounting

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 196002GS

KIT, 0-Ring
(Superseded to 705001)

$18.99

$

In Stock, Qty 7

0

18

Briggs & Stratton 205910GS

KIT, Handle

$22.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B2203GS

KIT, Handle

$5.49

$

In Stock, only 2 left!

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 319241GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

Note: (Not Illustrated)

$4.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 317999GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 189332GS

PLUG-HOLE

Note: (Not Illustrated)

$3.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 208538GS

DECAL, Warning Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

TAG-WARNING
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 75187

Garden Hose Quick Connect

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75197

Accessory Quick Connect

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75138

Dual Action Brush Kit

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75122

30' Replacement Hose

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 75116

KIT, O-Ring Repair
(Superseded to 7075115YP)

Note: (Optional Accessory)

$10.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 75129

Turbo Nozzle

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75121

25' Extension Hose
(Superseded to 7075121YP)

Note: (Optional Accessory)

$40.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 75247

Surface Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74403

Pump Saver

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 33386

CARTRIDGE, Fresh Start

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75180

Detergent Siphon Hose & Filter

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74404

PerfectMix™ Multi-Purpose & Vehicle Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74405

PerfectMix™ Degreaser Cleaner
(Superseded to 7074405YP)

Note: (Optional Accessory)

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 74406

PerfectMix™ Mold & Mildew Cleaner
(Superseded to 7074406YP)

Note: (Optional Accessory)

$37.99

$

In Stock, only 1 left!

0
