020570-00 - Briggs & Stratton POWERflow+ 3,000 PSI Pressure Washer Main Unit (80008150) Parts Diagram

POWERflow+ 3,000 PSI Pressure Washer

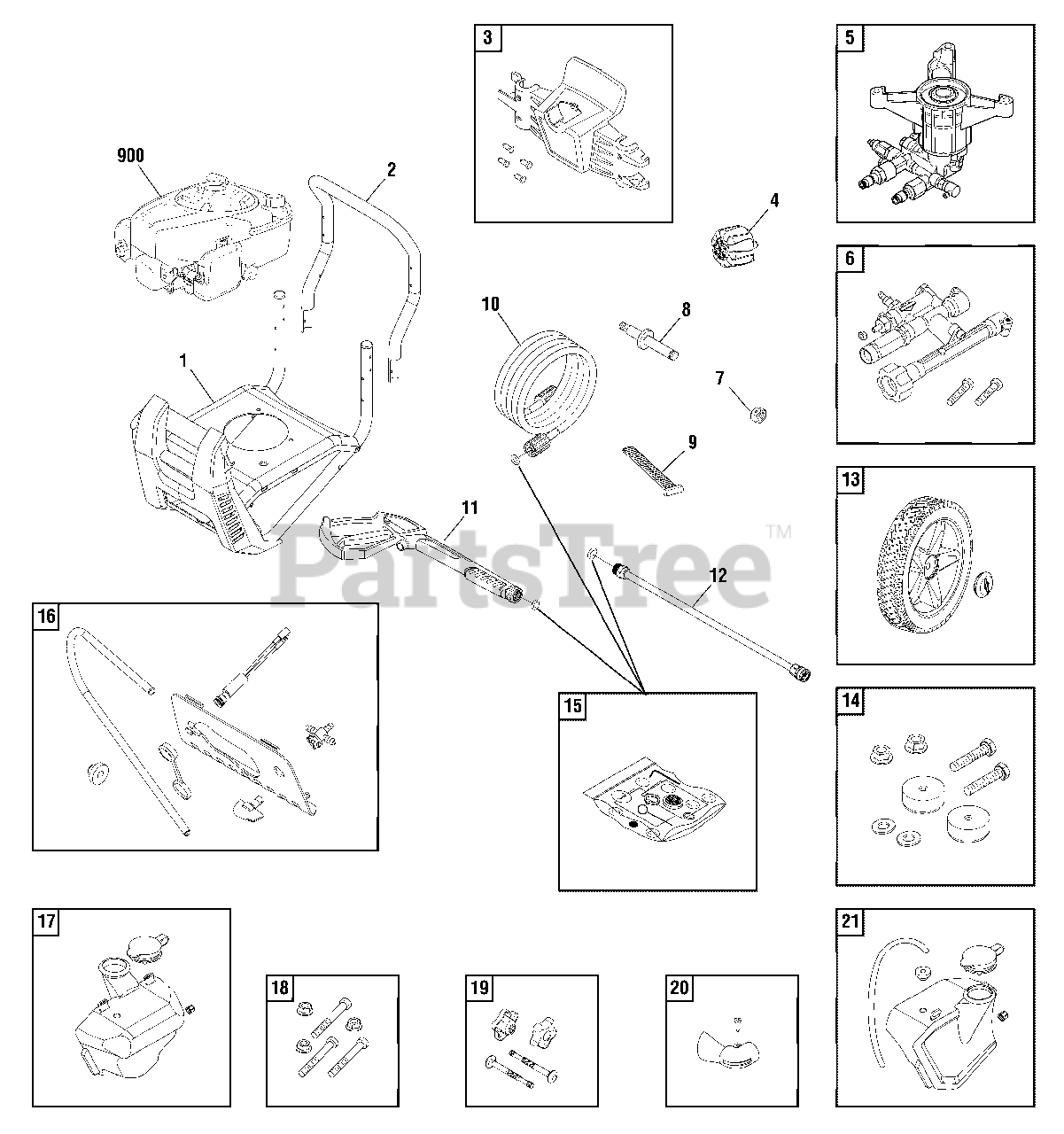

Main Unit (80008150) Parts Diagram

  • Title

1

Briggs & Stratton 705835

BASE

$493.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 705844

HANDLE

$57.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 705842

BILLBOARD

$92.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$4.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 317402GS

NOZZLE

$

$

Not available

5

Briggs & Stratton 705837

PUMP

$359.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 208673GS

VALVE-THERMAL RELIEF

$15.99

$

In Stock, Qty 15

0

6

Briggs & Stratton 705845

POWERFLOW
(Superseded to 707864)

$179.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705969

NUT

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 703347

NUT-AXLE

$4.99

$

In Stock, Qty 8

0

8

Briggs & Stratton 315134GS

AXLE

$30.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 705846

STRAP

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 705843

HOSE
(Superseded to 706833)

$218.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 705838

GUN
(Superseded to 708808)

$97.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 705373

EXTENSION-QC
(Superseded to 706595)

$50.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 705836

WHEEL

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705847

HUBCAP

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192310GS

MOUNT-VIBRATION

$10.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 705001

KIT-0-RING

$19.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 705862

PANEL-FRONT ASSY

$60.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 705863

PANEL

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315087GS

VALVE

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705864

KNOB
(Superseded to 315084GS)

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705871

BUSHING

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705071

DC JACK

$30.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312687GS

COVER-RUBBER

$6.49

$

In Stock, Qty 7

0

17

Briggs & Stratton 705865

TANK-CHEMICAL, LH

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705840

DRAIN

$16.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705849

CAP

$10.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 315139GS

KIT-HARDWARE PUMP MOUNTING

$10.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 705848

KIT-HARDWARE HANDLE

$13.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 705856

DEFLECTOR-EXHAUST

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 705841

TANK-CHEMICAL, RH

$

$

Not available

--

Briggs & Stratton 705840

DRAIN

$16.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705871

BUSHING

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705849

CAP

$10.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 704293

E-RING

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705852

DECAL-CHEM WARNING

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 705075

BATTERY
(Superseded to 707495)

Note: (Not Illustrated)

$68.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 317999GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 705850

HOSE-CHEMICAL

Note: (Not Illustrated)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 189332GS

PLUG-HOLE

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705851

DECAL-SPARK

Note: (Not Illustrated)

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705853

TAG-HANG, QUICKSTART

Note: (Not Illustrated)

$8.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705866

TAG-HANG, WARNING

Note: (Not Illustrated)

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGER
(Superseded to 705927)

Note: (Not Illustrated)

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 593483

SPARK ARRESTER

Note: (Optional Accessory - Not Included)

$37.99

$

Usually ships in 2-12 days

0
