020583-00 - Diamond 3,400 PSI Pressure Washer Main Unit (80008210) Parts Diagram

3,400 PSI Pressure Washer

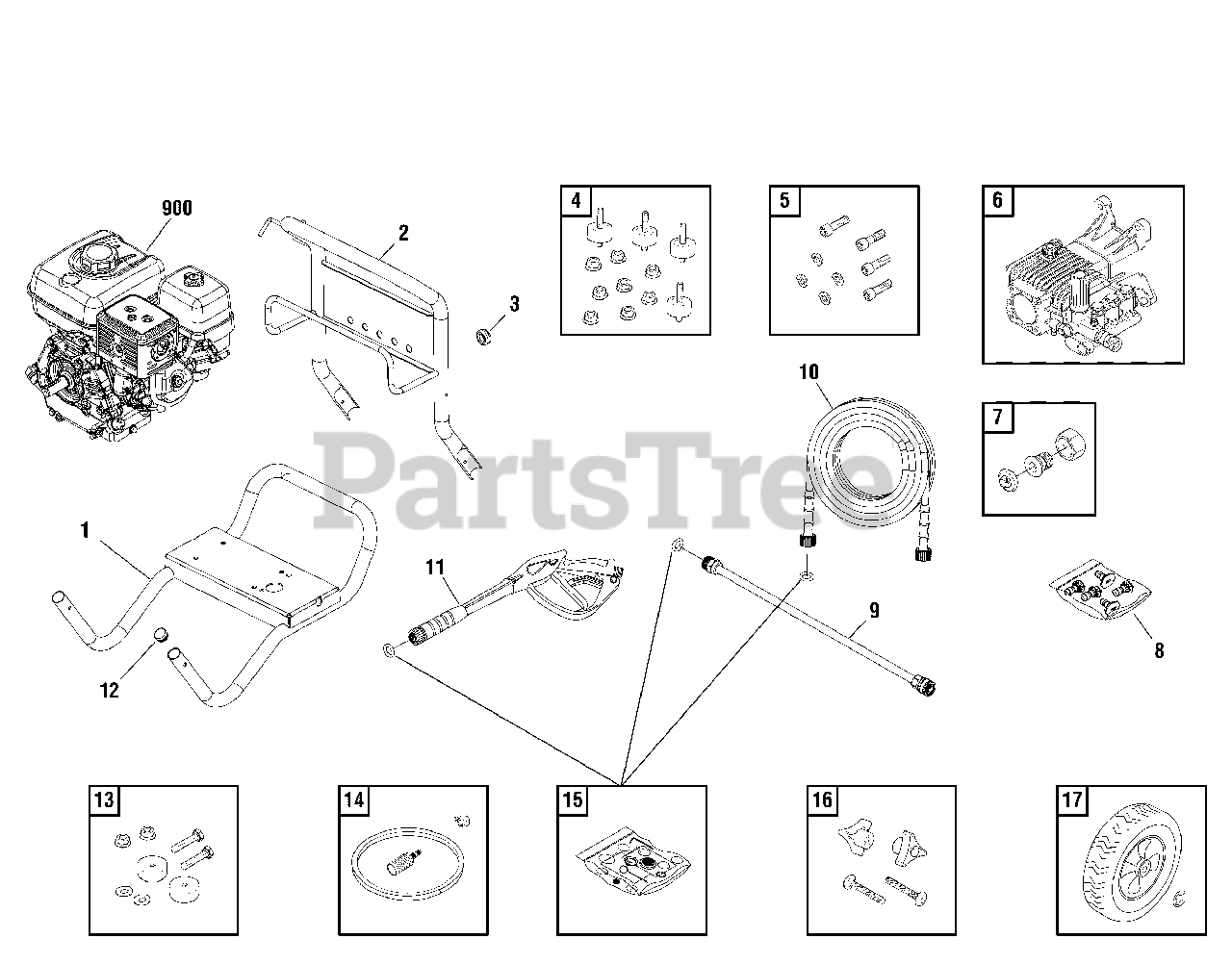

Main Unit (80008210) Parts Diagram

  • Title

1

Briggs & Stratton 315384BTGS

BASE

$

$

Currently unavailable

2

Briggs & Stratton 315383BTGS

HANDLE

$434.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192134GS

KIT-HRDWR ENGINE MOUNTING

$29.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 192132GS

KIT-HRDWR PUMP MOUNTING

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 705926

PUMP

$744.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 199310GS

ADAPTER-GARDEN HOSE

$12.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 317351GS

KIT-QC NOZZLES

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983EGS

NOZZLE-QC RED

$9.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983FGS

NOZZLE-QC YELLOW

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983GGS

NOZZLE-QC GREEN

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983HGS

NOZZLE-QC WHITE

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE-QC BLACK

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207785GS

EXTENSION-QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 209283GS

HOSE

$106.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 189332GS

PLUG

$3.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 192310GS

MOUNT-VIBRATION

$9.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 192796GS

HOSE-CHEMICAL

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 705001

KIT-O-RING

$18.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 203040GS

KIT-HARDWARE HANDLE

$6.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 204876GS

KIT-WHEEL

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 703977

E-RING

$4.99

$

In Stock, Qty 20+

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 191267GS

AXLE

Note: (Not Illustrated)

$44.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 317999GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

Briggs & Stratton 705753

KEY

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705752

TAG-WARNING

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705868

TAG-WARNING, FRNCH

Note: (Not Illustrated)

$7.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, only 2 left!

0
