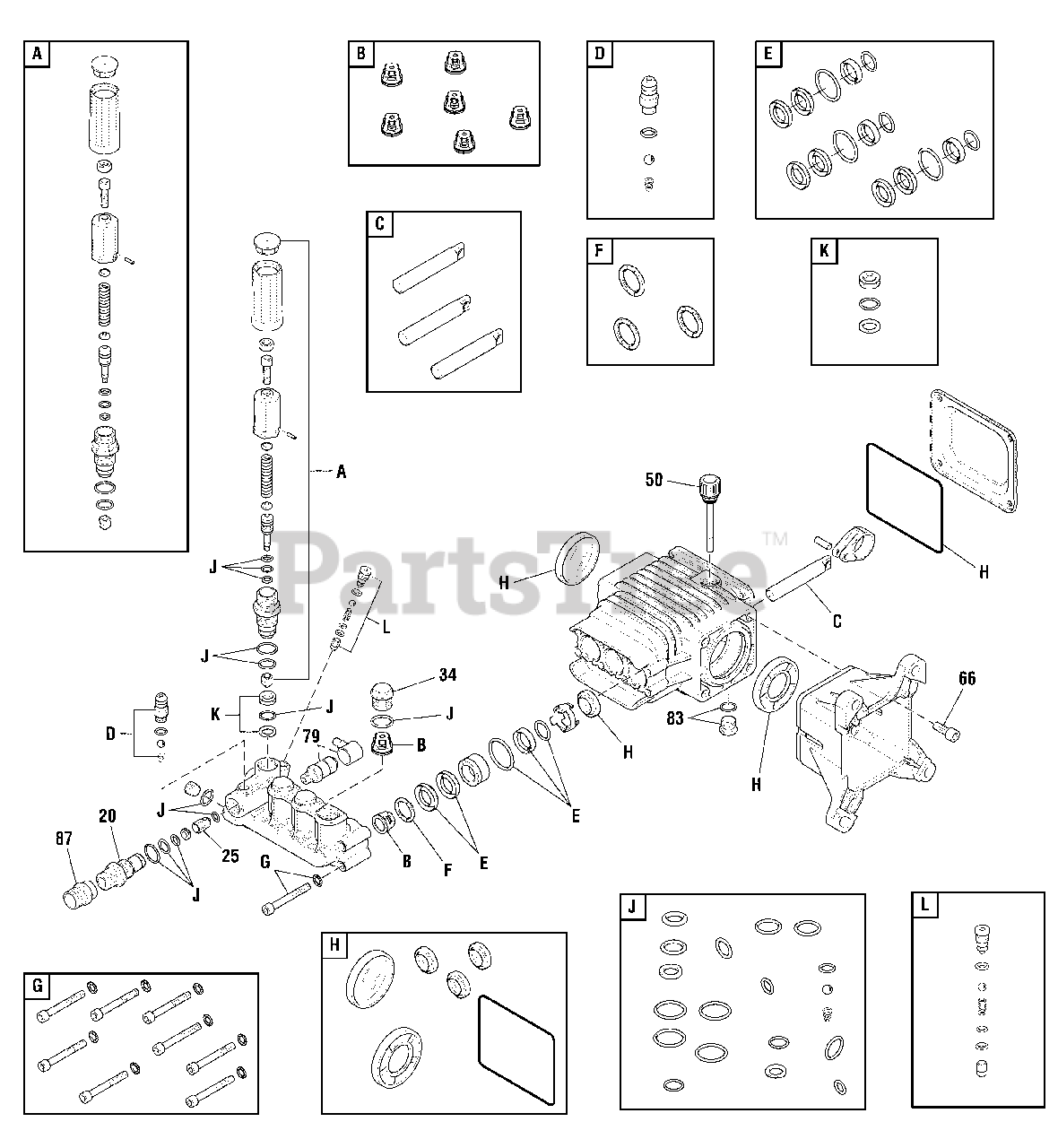

020583-00 - Diamond 3,400 PSI Pressure Washer Pump (80009384) Parts Diagram

3,400 PSI Pressure Washer

Pump (80009384) Parts Diagram

  • Title

20

Briggs & Stratton 198851GS

INJECTOR-DETERGENT

$48.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 204860GS

JET

$

$

Not available

34

Briggs & Stratton 317334GS

PLUG

$60.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 198849GS

DIPSTICK

$35.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 198297GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 208673GS

VALVE-THERMAL RELIEF

$15.99

$

In Stock, Qty 15

0

83

Briggs & Stratton 203034GS

KIT-DRAIN PLUG

$15.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 705929

FITTING

$22.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 198736GS

KIT-UNLOADER

$142.99

$

In Stock, only 4 left!

0

B

Briggs & Stratton 705928

KIT-VALVES
(Superseded to 317335GS)

$216.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 198844GS

KIT-PISTON

$303.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 192914GS

KIT-CHEMICAL INJ

$26.99

$

In Stock, only 3 left!

0

E

Briggs & Stratton 198845GS

KIT-WATER SEAL

$174.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 198848GS

KIT-SUPPORT RING

$14.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton 198852GS

KIT-HARDWARE

$34.99

$

In Stock, only 1 left!

0

H

Briggs & Stratton 198846GS

KIT-OIL SEAL

$107.99

$

Usually ships in 2-12 days

0

J

Briggs & Stratton 198847GS

KIT-O-RINGS

$28.99

$

In Stock, only 2 left!

0

K

Briggs & Stratton 202902GS

KIT-UNLOADER SEAT

$161.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 202800GS

KIT-UNLOADER

$73.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B2384

FILTER
(Superseded to B2384GS)

Note: (Not Illustrated)

$4.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0
