020588-00 - Briggs & Stratton 2,500 PSI Pressure Washer Main Unit (80009481) Parts Diagram

2,500 PSI Pressure Washer

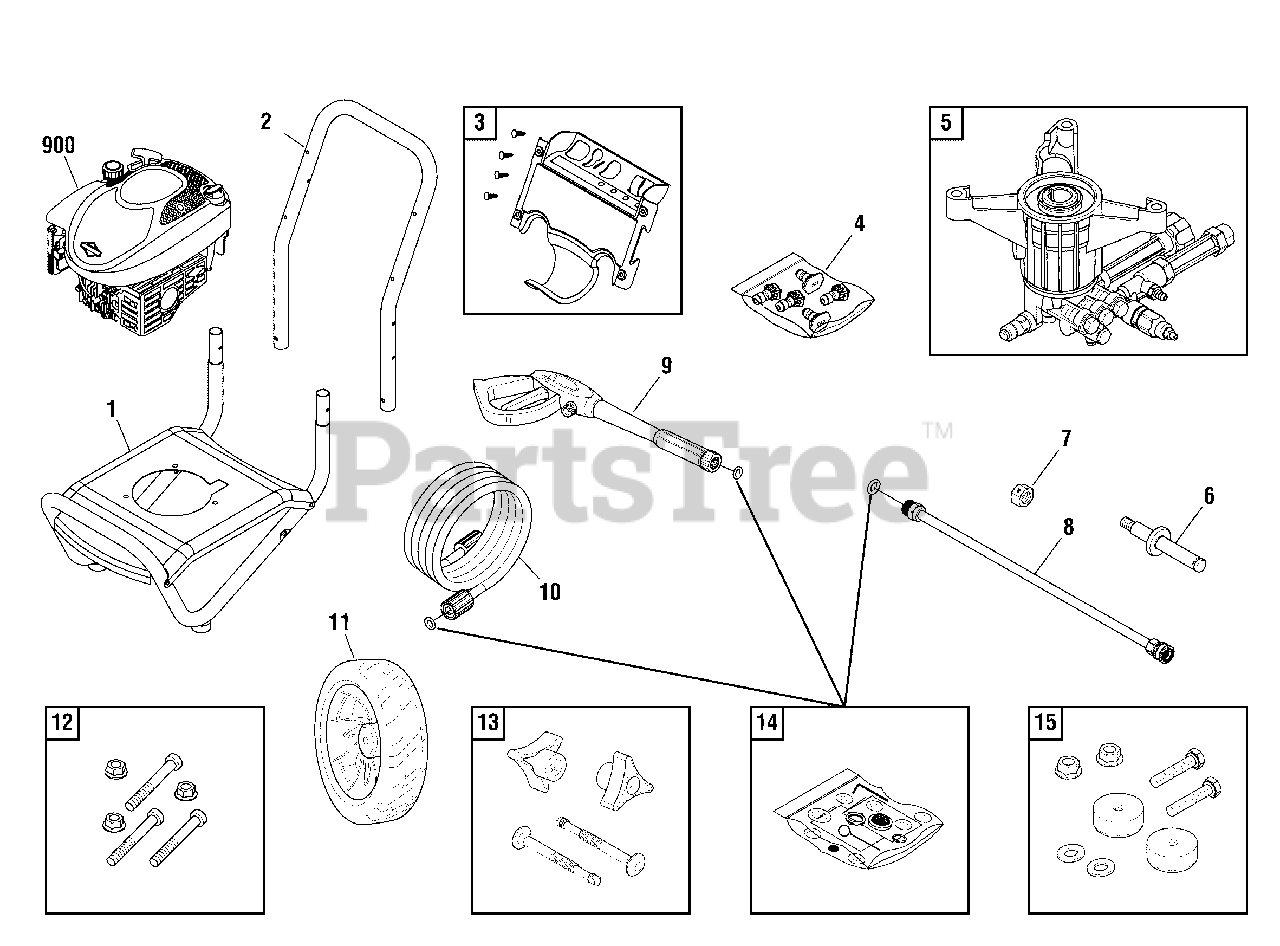

Main Unit (80009481) Parts Diagram

  • Title

1

Briggs & Stratton 703850

BASE

$486.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 199110BRGS

HANDLE

$80.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 705280

BILLBOARD

$106.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

CLIP

$4.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 705281

KIT-QC NOZZLES

$23.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 706517

NOZZLE-QC MAGENTA
(Superseded to 706155)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AEGS

NOZZLE-QC RED

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983YGS

NOZZLE-QC GREEN

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE-QC WHITE

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 706518

NOZZLE-QC CYAN

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 705445

PUMP

$241.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 315134GS

AXLE

$30.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 703347

NUT

$4.99

$

In Stock, Qty 8

0

8

Briggs & Stratton 207784GS

EXTENSION-QC
(Superseded to 706595)

$50.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 319853GS

GUN
(Superseded to 84003228)

$

$

Not available

10

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$63.99

$

In Stock, Qty 7

0

11

Briggs & Stratton 705282

WHEEL

$54.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 315139GS

KIT-HARDWARE, PUMP MOUNTING

$10.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton B2203GS

KIT-HARDWARE HANDLE

$5.99

$

In Stock, Qty 9

0

14

Briggs & Stratton 705001

KIT-O-RING

$19.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 192310GS

MOUNT-VIBRATION

$10.99

$

In Stock, only 4 left!

0

900

-----

** ENGINE

$

$

Not available

--

Murray 794693

LABEL-WARNING

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705076

HOSE-CHEMICAL

Note: (Not Illustrated)

$13.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 704293

E-RING

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL-Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100005GS

OIL
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 194256GS

TAG-WARNING
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0
