020636-00 - Briggs & Stratton 3,000 PSI Pressure Washer Main Unit (80014633) Parts Diagram

3,000 PSI Pressure Washer

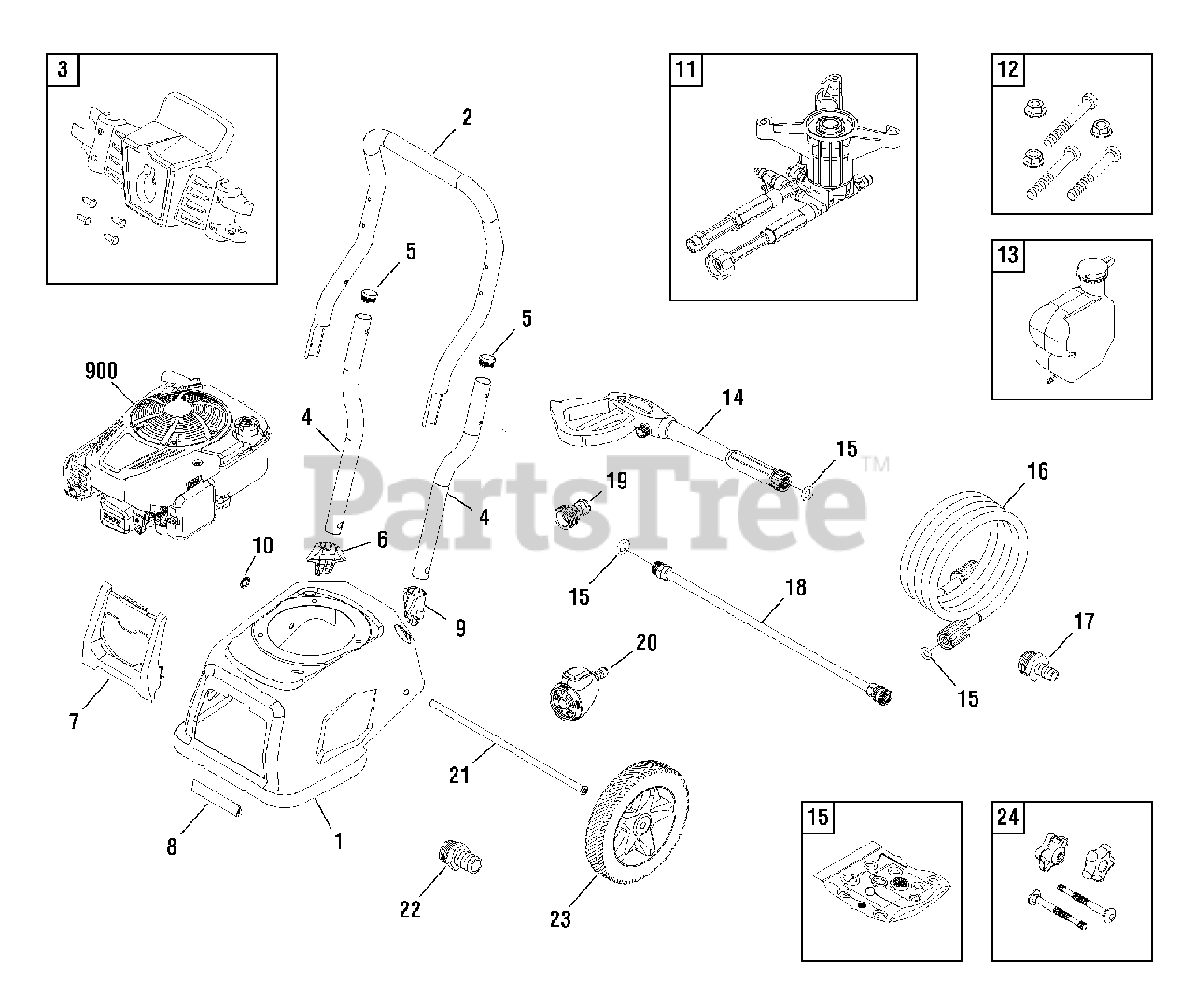

Main Unit (80014633) Parts Diagram

  • Title

1

Briggs & Stratton 707438

BASE

Note: (Includes Ref. No. 10)

$223.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 707441

HANDLE

$130.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 707771

BILLBOARD

$116.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 5

0

4

Briggs & Stratton 707448

BRACKET

Note: (Includes Ref. No. 10)

$31.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189332GS

PLUG-HOLE

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 707446

GROMMET

Note: (Includes Ref. No. 10)

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 707445

SHROUD-FRONT

$22.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 707443

MOUNT-VIBRATION

$

$

Not available

9

Briggs & Stratton 707449

GROMMET

Note: (Includes Ref. No. 10)

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 707773

PUMP
(Superseded to 771492)

$328.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 315139GS

KIT-HARDWARE PUMP MOUNTING

$9.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 707473

TANK-CHEMICAL
(Superseded to 708963)

$54.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 312369GS

CAP-TANK

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 319853GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 705001

KIT-0-RING

$18.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 192014GS

FITTING-1/2

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 706595

EXTENSION-QC

$47.99

$

In Stock, Qty 8

0

19

Briggs & Stratton 95456GS

QUICK CONNECT
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 706995

NOZZLE

$119.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 707447

AXLE

Note: (Includes Ref. No. 10)

$29.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192015GS

FITTING- 3/4

$8.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 707442

WHEEL

Note: (Includes Ref. No. 10)

$44.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 705848

KIT-HANDLE

$12.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705076

HOSE-CHEMICAL

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 706602

TAG-WARNING

Note: (Not Illustrated)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, only 2 left!

0
