020641-00 - Troy-Bilt 3,100 PSI Pressure Washer Main Unit (80014771) Parts Diagram

3,100 PSI Pressure Washer

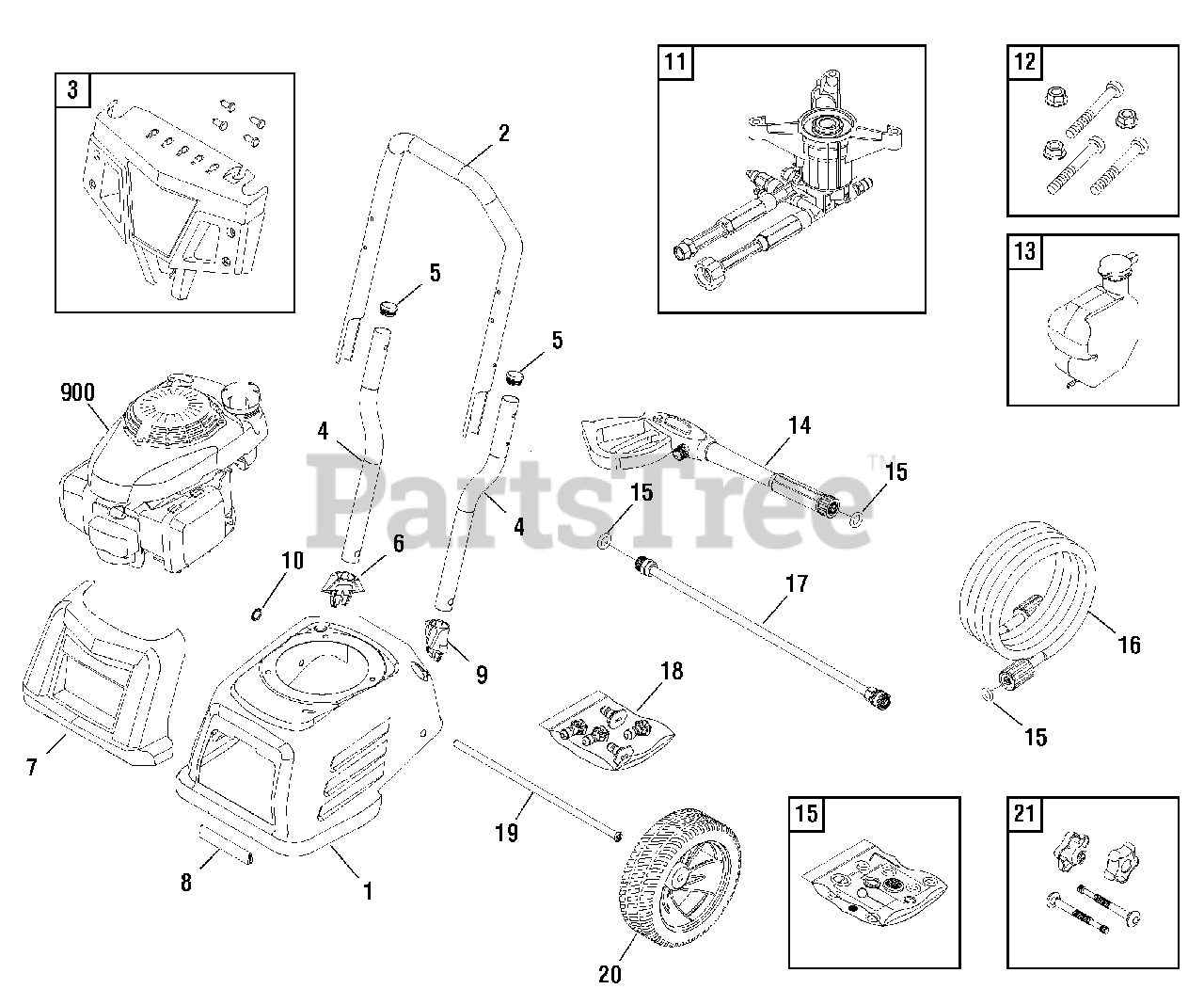

Main Unit (80014771) Parts Diagram

  • Title

1

Briggs & Stratton 708719

BASE

Note: (Includes Ref. No. 10)

$187.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 708725

HANDLE

$114.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 708722

BILLBOARD

$58.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$4.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 708726

BRACKET

Note: (Includes Ref. No. 10)

$40.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189332GS

PLUG-HOLE

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 707446

GROMMET

Note: (Includes Ref. No. 10)

$8.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 708721

SHROUD-FRONT

$46.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 707443

MOUNT-VIBRATION

$

$

Not available

9

Briggs & Stratton 707449

GROMMET

Note: (Includes Ref. No. 10)

$16.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 707773

PUMP
(Superseded to 771492)

$348.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 315033GS

KIT-HARDWARE PUMP MOUNTING

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 707473

TANK-CHEMICAL
(Superseded to 708963)

$57.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 312369GS

CAP-TANK

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 708720

GUN

$91.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 705001

KIT-0-RING

$19.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 708723

HOSE
(Superseded to 84006753)

$63.99

$

In Stock, Qty 6

0

17

Briggs & Stratton 706595

EXTENSION-QC

$50.99

$

In Stock, only 3 left!

0

18

Briggs & Stratton 708724

KIT-QC NOZZLE

$28.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AAGS

NOZZLE-QC RED

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983TGS

NOZZLE-QC YELLOW

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 707480

NOZZLE-QC WHITE

$8.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 706518

NOZZLE-QC CYAN

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 706517

NOZZLE-QC MAGENTA
(Superseded to 706155)

$12.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 707447

AXLE

Note: (Includes Ref. No. 10)

$30.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 313837GS

WHEEL

Note: (Includes Ref. No. 10)

$59.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 312099GS

KIT-HANDLE

$27.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 319068GS

OIL

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL-Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705076

HOSE-CHEMICAL

Note: (Not Illustrated)

$13.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 707165

TAG-WARNING

Note: (Not Illustrated)

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0
