020656-00 - Briggs & Stratton 3,000 PSI Pressure Washer Main Unit (80016707) Parts Diagram

3,000 PSI Pressure Washer

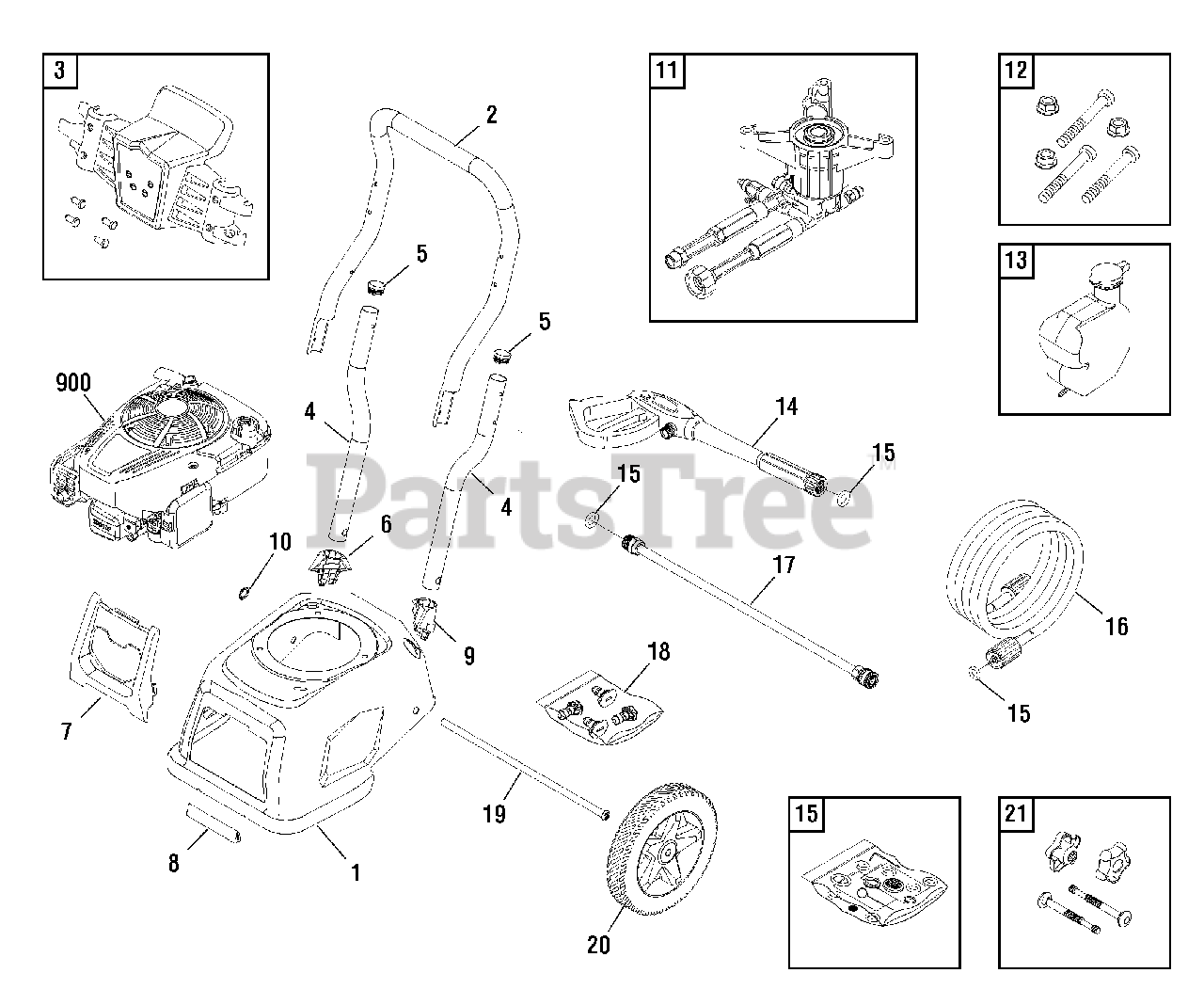

Main Unit (80016707) Parts Diagram

  • Title

1

Briggs & Stratton 708716

BASE

Note: (Includes Ref. No. 10)

$173.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 707441

HANDLE

$130.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 707477

BILLBOARD

$81.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 4 left!

0

4

Briggs & Stratton 707448

BRACKET

Note: (Includes Ref. No. 10)

$31.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189332GS

PLUG-HOLE

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 707446

GROMMET

Note: (Includes Ref. No. 10)

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 709545

SHROUD-FRONT

$18.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 707443

MOUNT-VIBRATION

$

$

Not available

9

Briggs & Stratton 707449

GROMMET

Note: (Includes Ref. No. 10)

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 707773

PUMP
(Superseded to 771492)

$328.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 315139GS

KIT-HARDWARE PUMP MOUNTING

$9.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 707473

TANK-CHEMICAL
(Superseded to 708963)

$54.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 312369GS

CAP-TANK

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 319853GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 705001

KIT-0-RING

$18.99

$

In Stock, only 3 left!

0

16

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 706595

EXTENSION-QC

$47.99

$

In Stock, Qty 7

0

18

Briggs & Stratton 707478

KIT-QC NOZZLE

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AJGS

NOZZLE-QC RED

$9.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983TGS

NOZZLE-QC YELLOW

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 707480

NOZZLE-QC WHITE

$8.49

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

NOZZLE-QC BLACK

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 707447

AXLE

Note: (Includes Ref. No. 10)

$29.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 707442

WHEEL

Note: (Includes Ref. No. 10)

$44.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 705848

KIT-HANDLE

$12.99

$

Usually ships in 2-12 days

0

900

-----

* ENGINE

$

$

Not available
