020662-01 - Briggs & Stratton 2,800 PSI Pressure Washer Main Unit (80017461) Parts Diagram

2,800 PSI Pressure Washer

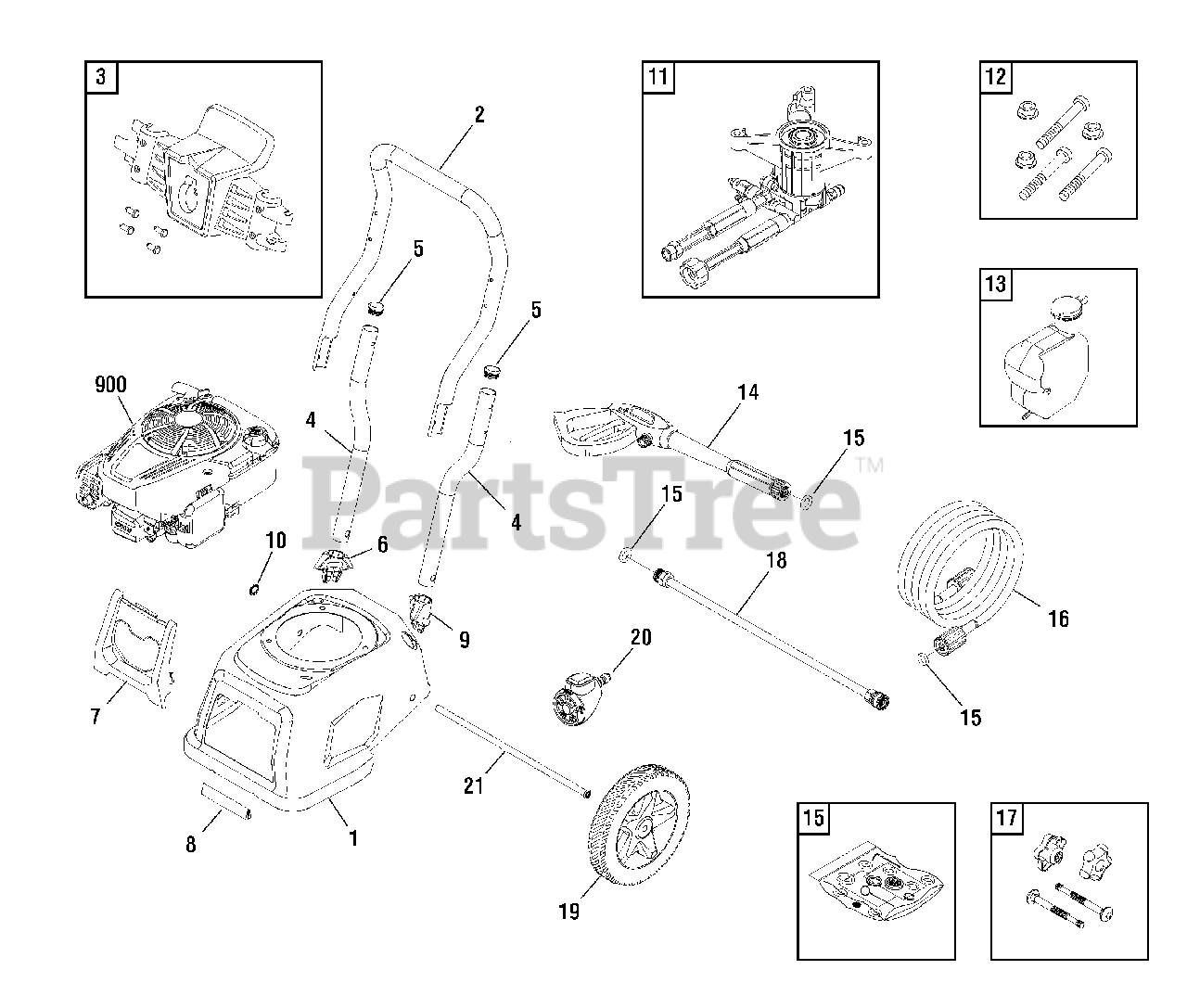

Main Unit (80017461) Parts Diagram

  • Title

1

Briggs & Stratton 708716

BASE

Note: (Includes Ref. No. 10)

$184.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 707441

HANDLE-UPPER

$138.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 708960

BILLBOARD

$115.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$4.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 707448

HANDLE-LOWER

Note: (Includes Ref. No. 10)

$32.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 707446

GROMMET

Note: (Includes Ref. No. 10)

$8.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 709545

SHROUD-FRONT

$19.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 707443

MOUNT-VIBRATION

$

$

Not available

9

Briggs & Stratton 707449

GROMMET

Note: (Includes Ref. No. 10)

$16.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 707476

PUMP
(Superseded to 771698)

$242.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 700223

KIT, Hardware, Pump Mounting

$7.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 708963

TANK-CHEMICAL

$57.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 312369GS

CAP, Chemical Tank

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 708807

GUN
(Superseded to 84003228)

$

$

Not available

15

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$19.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 708962

HOSE
(Superseded to 708723)

$63.99

$

In Stock, Qty 11

0

17

Briggs & Stratton 705848

KIT, Hardware, Handle

$13.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 706595

EXTENSION, QC

$50.99

$

In Stock, Qty 7

0

19

Briggs & Stratton 707442

KIT, Wheel

Note: (Includes Ref. No. 10)

$47.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 708961

NOZZLE

$54.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 707447

AXLE

Note: (Includes Ref. No. 10)

$30.99

$

Usually ships in 2-12 days

0

900

** ENGINE

$

$

Not available

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

Note: (Not Illustrated)

$13.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 705854

TAG, Warning, English

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705859

DECAL-Warning Spark

Note: (Not Illustrated)

$8.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 6160

Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner

Note: (Optional Accessory)

$

$

Not available
