020678A-00 - Troy-Bilt 3,100 PSI Pressure Washer Main Unit (80027811) Parts Diagram

3,100 PSI Pressure Washer

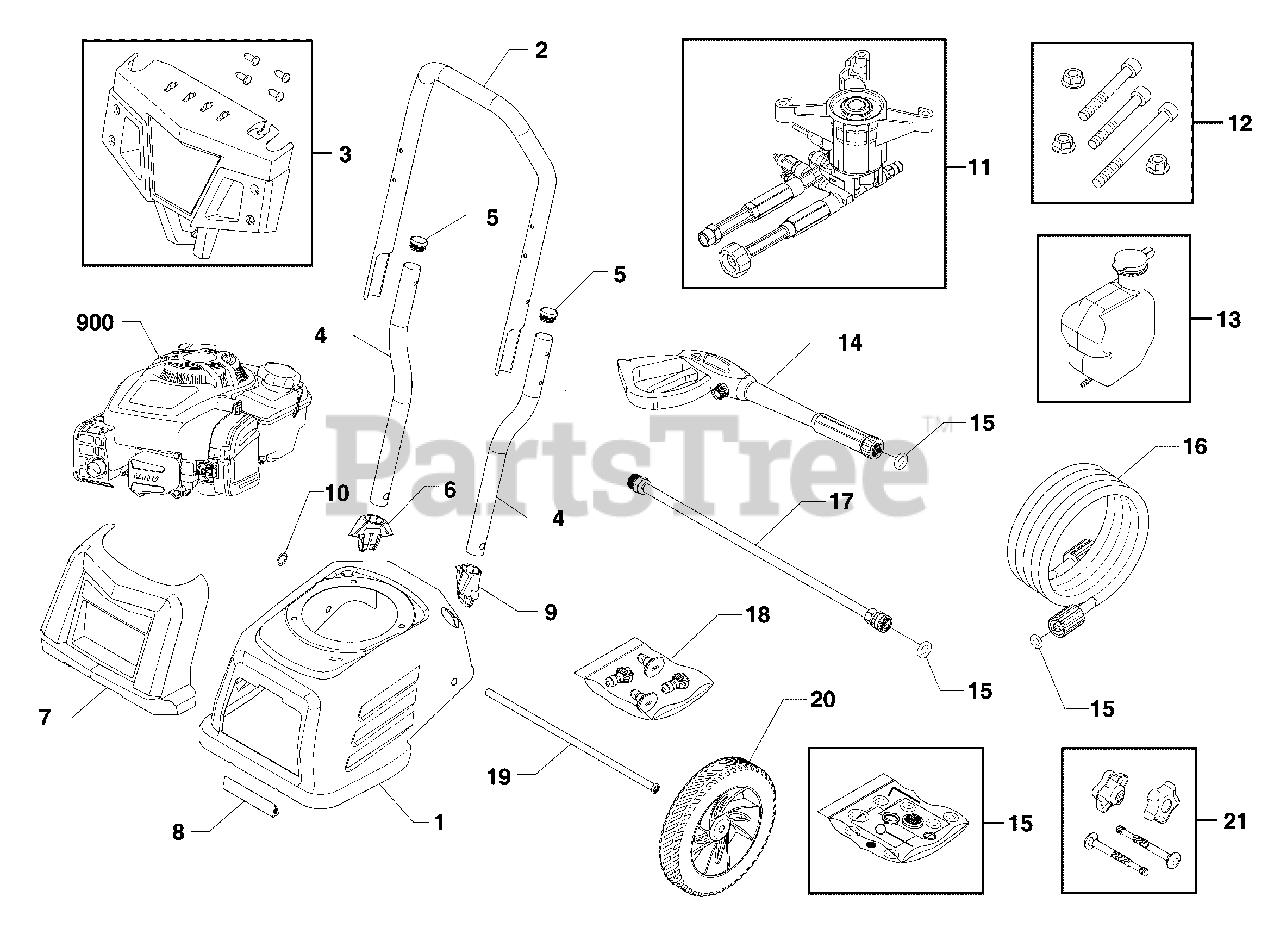

Main Unit (80027811) Parts Diagram

  • Title

1

Briggs & Stratton 705382

BASE

Note: (Includes Ref. No. 10)

$179.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704442

ASSEMBLY, Handle

$110.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 705749

BILLBOARD

$88.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 706146

BRACKET

Note: (Includes Ref. No. 10)

$26.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 707446

GROMMET

Note: (Includes Ref. No. 10)

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 707479

SHROUD-FRONT

$18.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 707443

MOUNT-VIBRATION

$

$

Not available

9

Briggs & Stratton 707449

GROMMET

Note: (Includes Ref. No. 10)

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 706015

PUMP

$328.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 700223

KIT, Hardware, Pump Mounting

$7.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 707473

TANK-CHEMICAL
(Superseded to 708963)

$54.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 312369GS

CAP, Chemical Tank

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 708807

GUN
(Superseded to 84003228)

$74.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$18.99

$

In Stock, Qty 7

0

16

Briggs & Stratton 708962

HOSE
(Superseded to 708723)

$59.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 9

0

18

Briggs & Stratton 707182

Kit, Quick Connect Nozzles

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 709745

NOZZLE-QC, RED

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AKGS

NOZZLE, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983VGS

Nozzle, QC, White

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 705397

AXLE

Note: (Includes Ref. No. 10)

$11.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 705405

WHEEL

Note: (Includes Ref. No. 10)

$53.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 705848

KIT, Hardware, Handle

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 124P02-0002-F1

*ENGINE

$553.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 705748

STRAP

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 709975

DECAL-WARNING

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 705854

TAG, Warning, English

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705853

TAG-HANG, QUICKSTART

$7.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP Saver

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

$

$

Currently unavailable

--

Briggs & Stratton 6160

Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner

$

$

Not available
