020766-00 - Troy-Bilt 3,100 PSI Pressure Washer Main Unit (80070022) Parts Diagram

3,100 PSI Pressure Washer

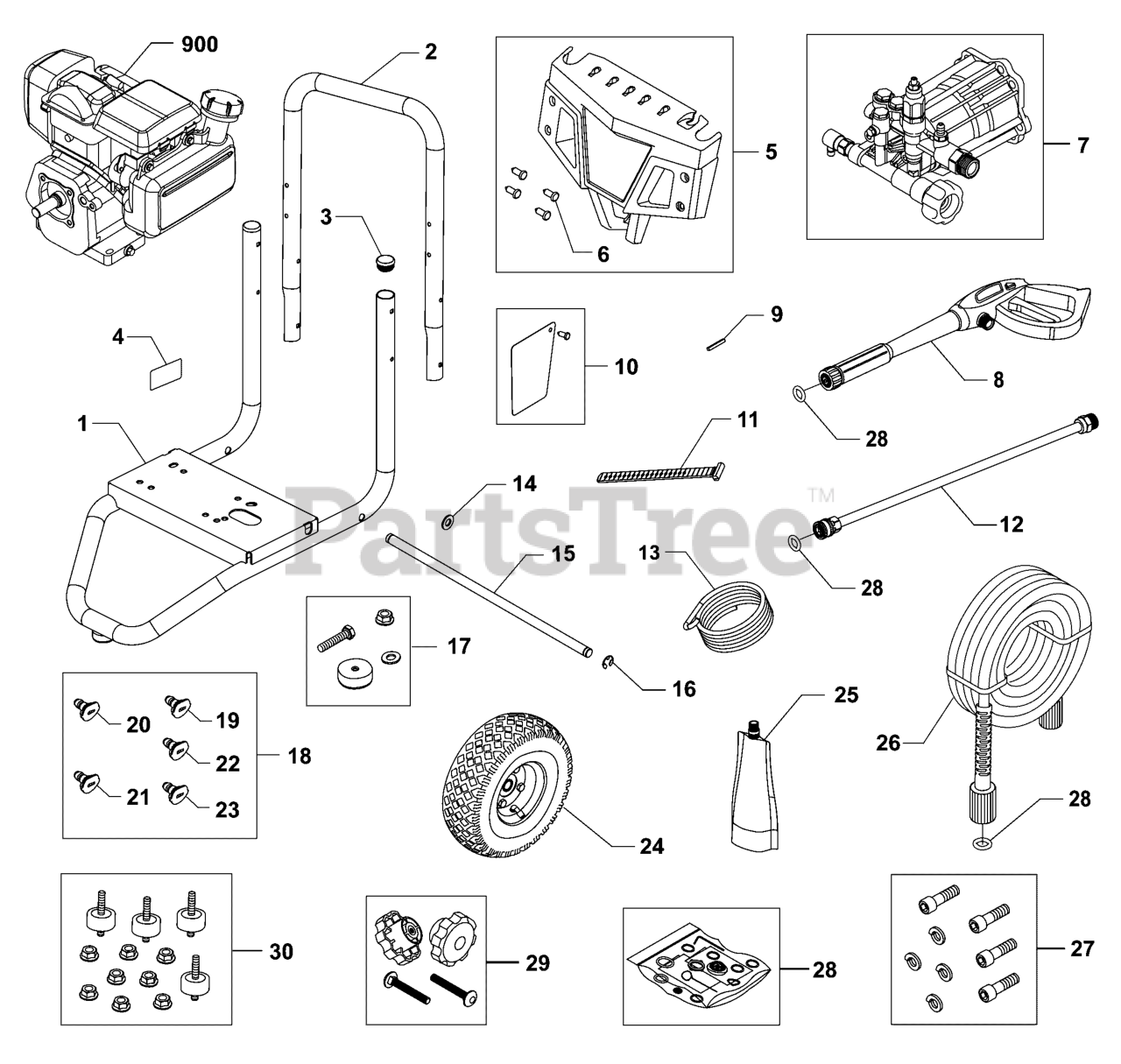

Main Unit (80070022) Parts Diagram

  • Title

1

Briggs & Stratton 84005271

BASE

Note: (Includes Item 3)

$

$

Currently unavailable

2

Briggs & Stratton 84005270

HANDLE

$78.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84005269

BILLBOARD

$84.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1797GS

CLIP

$4.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 84004774

PUMP
(Superseded to 709521)

$427.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84002234

GUN
(Superseded to 84003228)

$

$

Not available

9

Briggs & Stratton 23139DGS

KEY

$4.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 84002531

KIT-TAG, WARNING

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 705748

STRAP

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 706595

EXTENSION, QC

$50.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$13.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 17

0

15

Briggs & Stratton 84005274

AXLE

$32.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 703976

RETAINING RING, .392 ID EXT, .042 Thk

$4.49

$

In Stock, Qty 13

0

17

Briggs & Stratton 192310GS

KIT, Vibration Mount

$10.99

$

In Stock, only 3 left!

0

18

Briggs & Stratton 84004775

KIT-QC NOZZLES

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 195983AAGS

NOZZLE, QC, Red

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195983XGS

NOZZLE, QC, Yellow

$11.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 195983YGS

Nozzle, QC, Green

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 195983VGS

Nozzle, QC, White

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84004683

WHEEL

$

$

Currently unavailable

25

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 84002542

HOSE
(Superseded to 84006753)

$63.99

$

In Stock, Qty 7

0

27

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$6.49

$

In Stock, only 2 left!

0

28

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$19.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 84005294

KIT-HARDWARE HANDLE

$9.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 192134GS

KIT, Vibration Mount

$31.99

$

In Stock, only 4 left!

0

900

*ENGINE, HONDA, GC190, HS, Red, Tier III

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

$

$

Currently unavailable

--

Briggs & Stratton 6160

Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner

$

$

Not available
