020769-00 - Briggs & Stratton 2,200 PSI Pressure Washer Main Unit Parts Diagram

2,200 PSI Pressure Washer

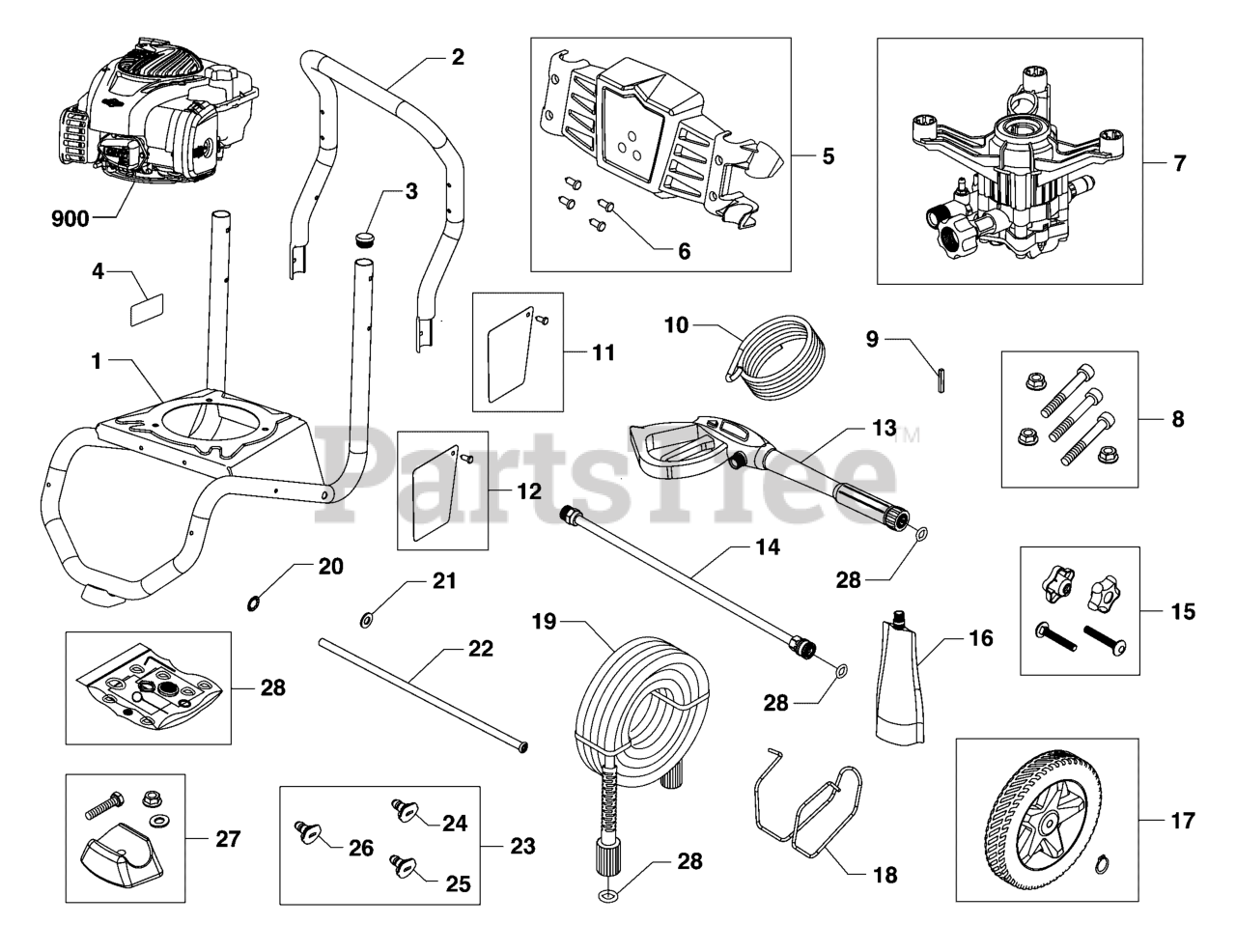

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84005175

BASE

Note: (Includes Items 3 & 27)

$322.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84005085

HANDLE

$88.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84005194

BILLBOARD

Note: (Includes item 6)

$54.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 6

0

7

Briggs & Stratton 771898

PUMP

$155.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 706617

KIT, Hardware, Pump Mounting

$8.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$12.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 84002158

KIT-TAG, WARNING

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84002539

KIT-TAG, WARNING, FRNCH

$25.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84002234

GUN
(Superseded to 84003228)

$74.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 84001720

KIT-HANDLE

$5.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 8

0

17

Briggs & Stratton 84005084

KIT-WHEEL

$52.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84001723

WIREFORM

$15.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 84002529

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 314957GS

AXLE

$15.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 84002156

KIT-NOZZLES

$7.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 195983AEGS

NOZZLE, QC, Red

$10.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 195983AGGS

NOZZLE, QC, Green

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 707979

MOUNT-VIBRATION

$11.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$18.99

$

In Stock, only 4 left!

0

900

Briggs & Stratton 09P702-0124-F1

*ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory Not Included)

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6160

Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner

Note: (Optional Accessory Not Included)

$

$

Not available
