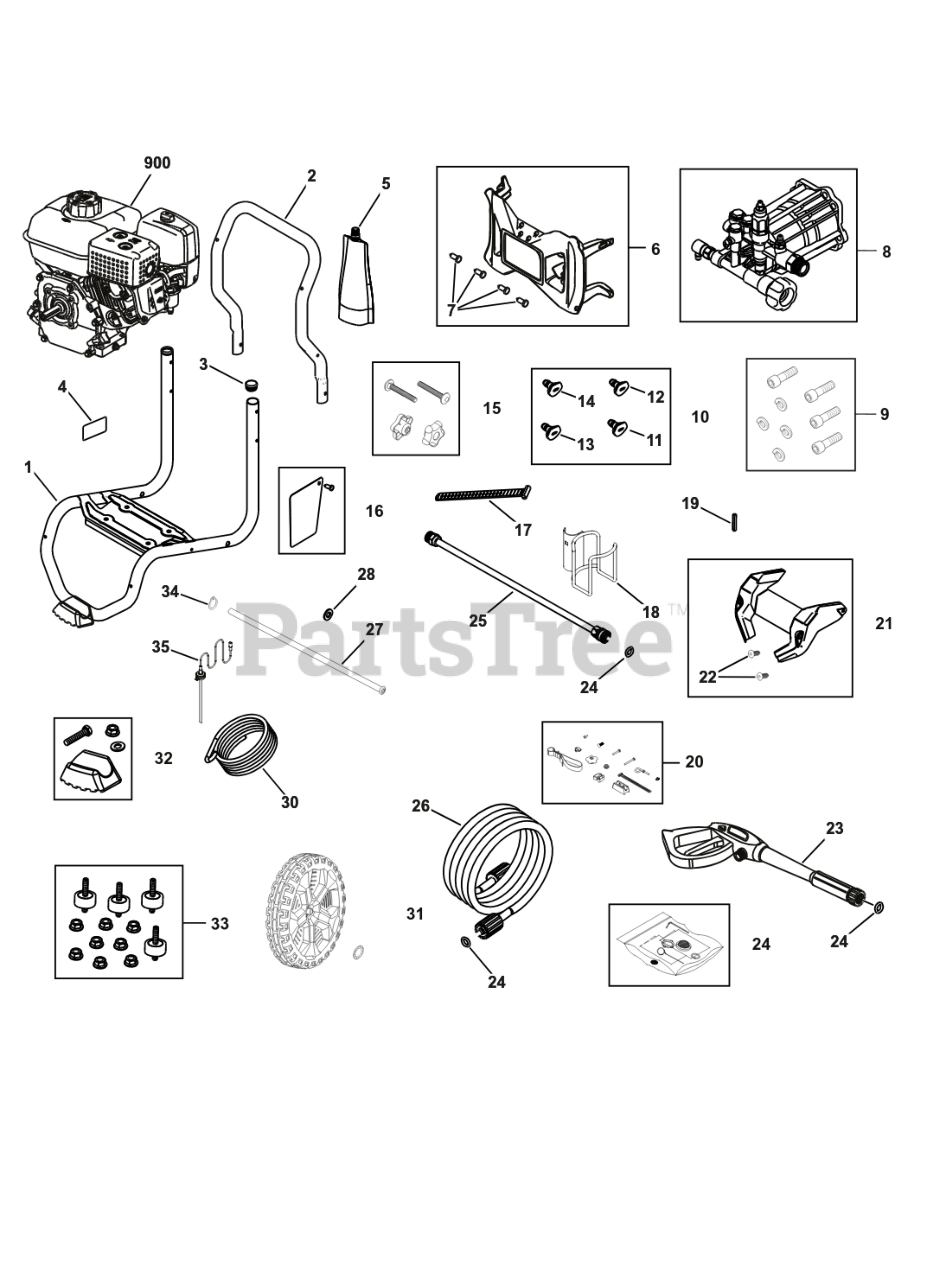

020793-00 - Brute 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84007076

BASE

Note: (Includes Item 3)

$

$

Currently unavailable

2

Briggs & Stratton 84007074

HANDLE

$

$

Currently unavailable

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 84007073

BILLBOARD

$61.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B1797GS

CLIP

$4.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 84006864

PUMP

$232.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$6.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 704973

KIT-QC NOZZLES

$19.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 195983AAGS

NOZZLE-QC RED

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 195983AKGS

NOZZLE, QC, Yellow

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 195983ZGS

Nozzle, QC White

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84001720

KIT-HANDLE

$6.49

$

In Stock, Qty 6

0

16

Briggs & Stratton 84002531

KIT-TAG, WARNING

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84001717

STRAP

$6.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 206566GS

WIREFORM

$28.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 23139DGS

KEY

$4.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 84007075

KIT, ACCESSORIES

$

$

Not available

21

Briggs & Stratton 84007077

SHROUD

$

$

Currently unavailable

22

Briggs & Stratton 195964GS

CLIP

Note: (Contains Qty. 4 Clips)

$4.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 84002234

GUN
(Superseded to 84003228)

$

$

Not available

24

Briggs & Stratton 705001

KIT-O-RING

$19.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 706595

WAND-QC

$50.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 84001989

HOSE, PRESSURE

$94.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 84003811

AXLE

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 17

0

30

Briggs & Stratton 84007003

HOSE-CHEMICAL

$

$

Currently unavailable

31

Briggs & Stratton 84006376

WHEEL

$26.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84006505

KIT-MOUNT, VIBRATION

$11.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 192134GS

KIT, Vibration Mount

$31.99

$

In Stock, only 4 left!

0

34

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, only 4 left!

0

35

Briggs & Stratton 204658GS

Hose, Chemical

$32.99

$

Usually ships in 2-12 days

0

900

ENGINE, 208CC, BLACK RECOIL

Note: (Not Serviced as a Complete Assembly. Refer to 80098013 Component Groups)

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
