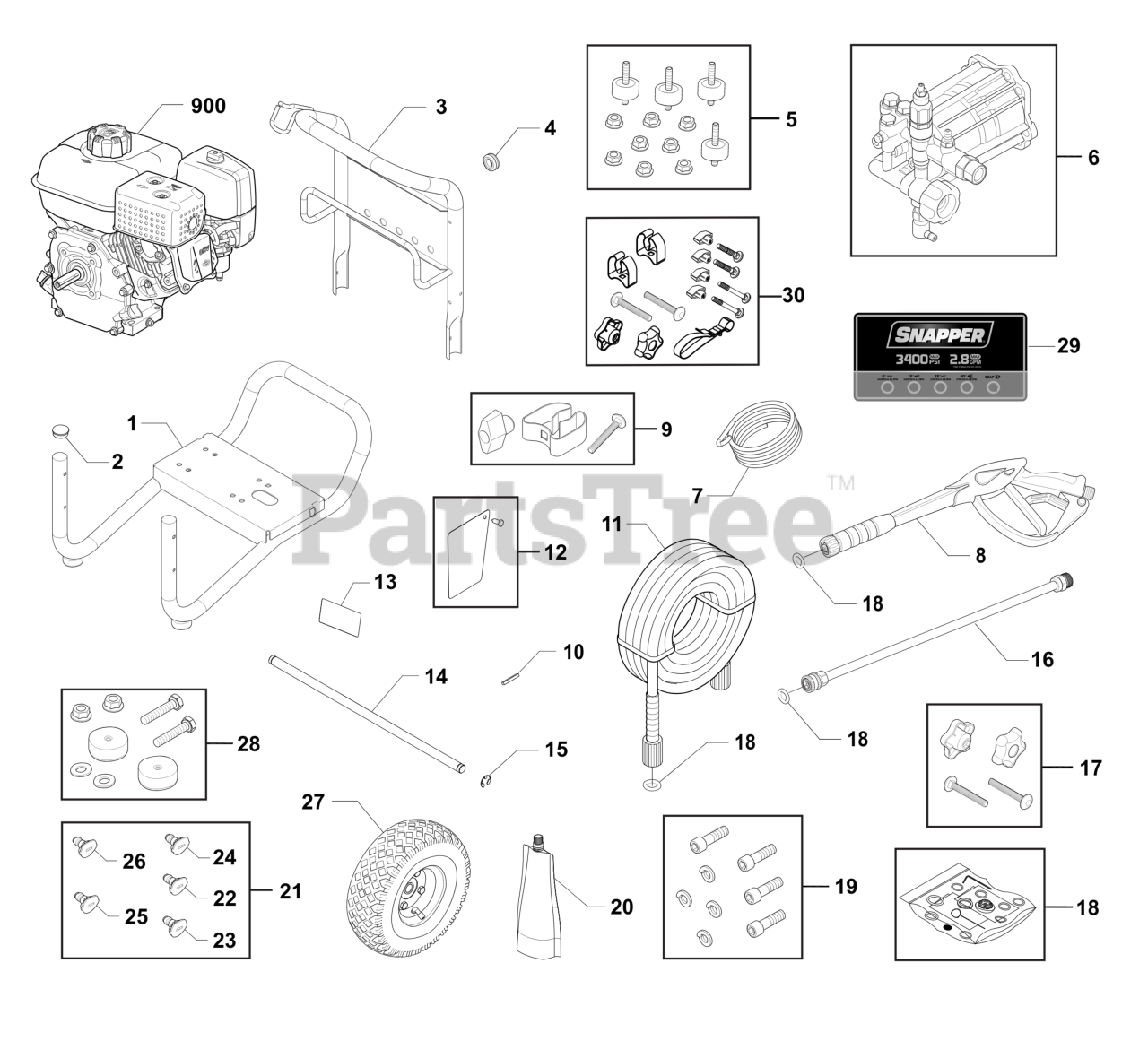

020797-00 - Snapper 3,400 PSI Pressure Washer Main Unit (80099245) Parts Diagram

3,400 PSI Pressure Washer

Main Unit (80099245) Parts Diagram

  • Title

1

Briggs & Stratton 84007102

BASE

Note: (Includes Item 2)

$

$

Currently unavailable

2

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 84007099

HANDLE

$139.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 317054GS

PUMP

$457.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$12.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 704312

GUN

$93.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 709493

KIT-CLIP

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84006757

HOSE

$

$

Not available

12

Briggs & Stratton 84002531

KIT-TAG, WARNING

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 191267ABGS

AXLE

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 703977

E-RING

$4.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 9

0

17

Briggs & Stratton 771929

KIT-HARDWARE, HANDLE

$6.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$18.99

$

In Stock, Qty 8

0

19

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 8

0

21

Briggs & Stratton 84004593

KIT-QC NOZZLES

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 195983AAGS

NOZZLE, QC, Red

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 195983ABGS

Nozzle, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 195983QGS

NOZZLE, QC, Green (BUSE-RACCORDS RAPIDES VERT)

$10.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 195983RGS

NOZZLE-QC WHITE (BUSE-RACCORDS RAPIDES BLANCHE)

$10.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 209885GS

WHEEL
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 84007100

DECAL, Billboard

$

$

Currently unavailable

30

Briggs & Stratton 84007101

KIT, Accessories Hardware

Note: (Contains Item 9, 17 & Additional items)

$

$

Currently unavailable

900

ENGINE, 208CC, BLACK RECOIL

Note: (Not Serviced as a Complete Assembly. Refer to 80098013 Component Groups)

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory)

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 6160

Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner

Note: (Optional Accessory)

$

$

Not available
