020831-00 - Briggs & Stratton 2,200 PSI Pressure Washer Main Unit (80104393) Parts Diagram

2,200 PSI Pressure Washer

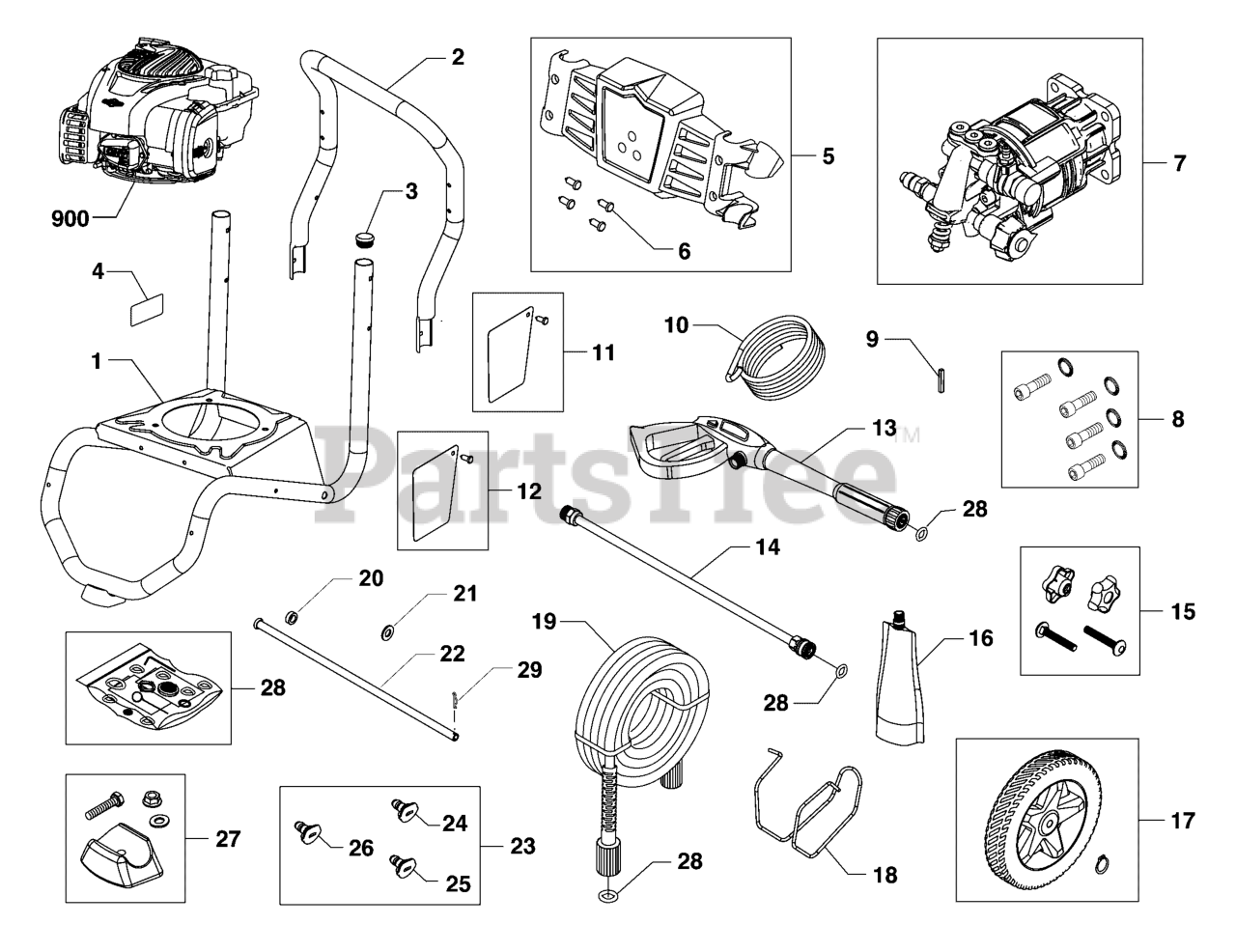

Main Unit (80104393) Parts Diagram

  • Title

1

Briggs & Stratton 84007076

BASE

Note: (Includes Items 3 & 27)

$

$

Currently unavailable

2

Briggs & Stratton 84007432

HANDLE

$

$

Currently unavailable

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84007439

BILLBOARD

Note: (Includes item 6)

$

$

Currently unavailable

6

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 6

0

7

Briggs & Stratton 84007438

PUMP

$

$

Currently unavailable

8

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 705076

HOSE-CHEMICAL

$12.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 84002531

KIT-TAG, WARNING

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84002541

KIT-TAG, WARNING

$25.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84002234

GUN, BIT
(Superseded to 84003228)

$74.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706595

EXTENSION

$47.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 84001720

KIT-HANDLE

$5.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 8

0

17

Briggs & Stratton 84006367

KIT-WHEEL

$27.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 84006499

WIREFORM

$12.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 84006842

HOSE

$64.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84006848

BUSHING

$2.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84007058

KIT, Axle

Note: (Includes Items 20, 21 and 29)

$

$

Currently unavailable

23

Briggs & Stratton 319856GS

KIT, QC Nozzles

$16.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 195983WGS

Nozzle, QC Red (Included in #10)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 195983YGS

Nozzle, QC, Green

$10.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 84006505

KIT-MOUNT, VIBRATION

$10.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 705001

O-RING, 0.706 ID X 0.097

$18.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 84006849

CLIP-RETAINER

$2.49

$

Usually ships in 2-12 days

0

900

ENGINE, 127CC, BLACK RECOIL

Note: (Complete Engine Not Servicable, Refer to Engine Component groups)

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory Not Included)

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6160

Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner

Note: (Optional Accessory Not Included)

$

$

Not available
