02600 - Toro HoverPro 400 Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Crankcase Cover Assembly Parts Diagram
HoverPro 400 Walk-Behind Mower

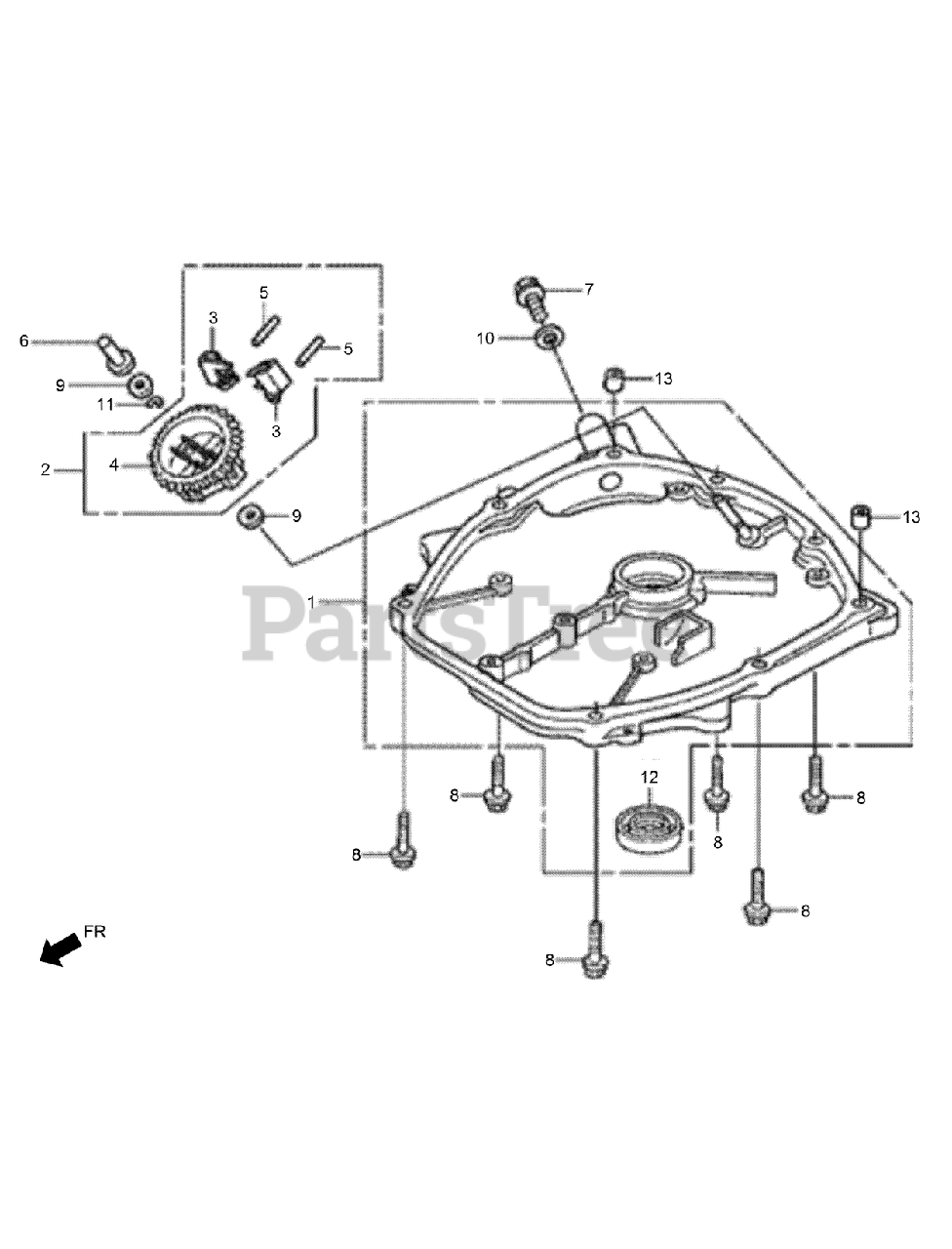

Crankcase Cover Assembly Parts Diagram
Toro 132-0107
CRANKCASE SIDE COVER ASM
$135.99
$
Usually ships in 3-6 days
Toro 132-0298
GOVERNOR ASM
$33.99
$
Usually ships in 3-6 days
Toro 132-0300
WEIGHT-GOVERNOR
$4.49
$
Usually ships in 3-6 days
Toro 132-0302
HOLDER-GOVERNOR WEIGHT
$12.99
$
Usually ships in 3-6 days
Toro 132-0303
PIN-GOVERNOR WEIGHT
$8.49
$
Usually ships in 3-6 days
Toro 132-0305
SLIDER-GOVERNOR
$6.49
$
Usually ships in 3-6 days
Toro 132-0576
BOLT-PLUG DRAIN-12MM
$11.99
$
Usually ships in 3-6 days
Toro 132-0587
BOLT-FLANGE-5X23
$8.99
$
Usually ships in 3-6 days
Toro 132-0633
WASHER-4.2X13
$8.99
$
Usually ships in 3-6 days
Toro 132-0638
WASHER-DRAIN PLUG-12MM
$3.49
$
Usually ships in 3-6 days
Toro 132-0643
CLIP-GOVERNOR HOLDER
$6.49
$
Usually ships in 3-6 days
Toro 132-0656
OIL SEAL-18.9X28X5
$13.99
$
Usually ships in 3-6 days
Toro 132-0694
DOWEL PIN-6X10
$7.49
$
Usually ships in 3-6 days
