02603 - Toro HoverPro 450 Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Carburetor Assembly Parts Diagram

HoverPro 450 Walk-Behind Mower

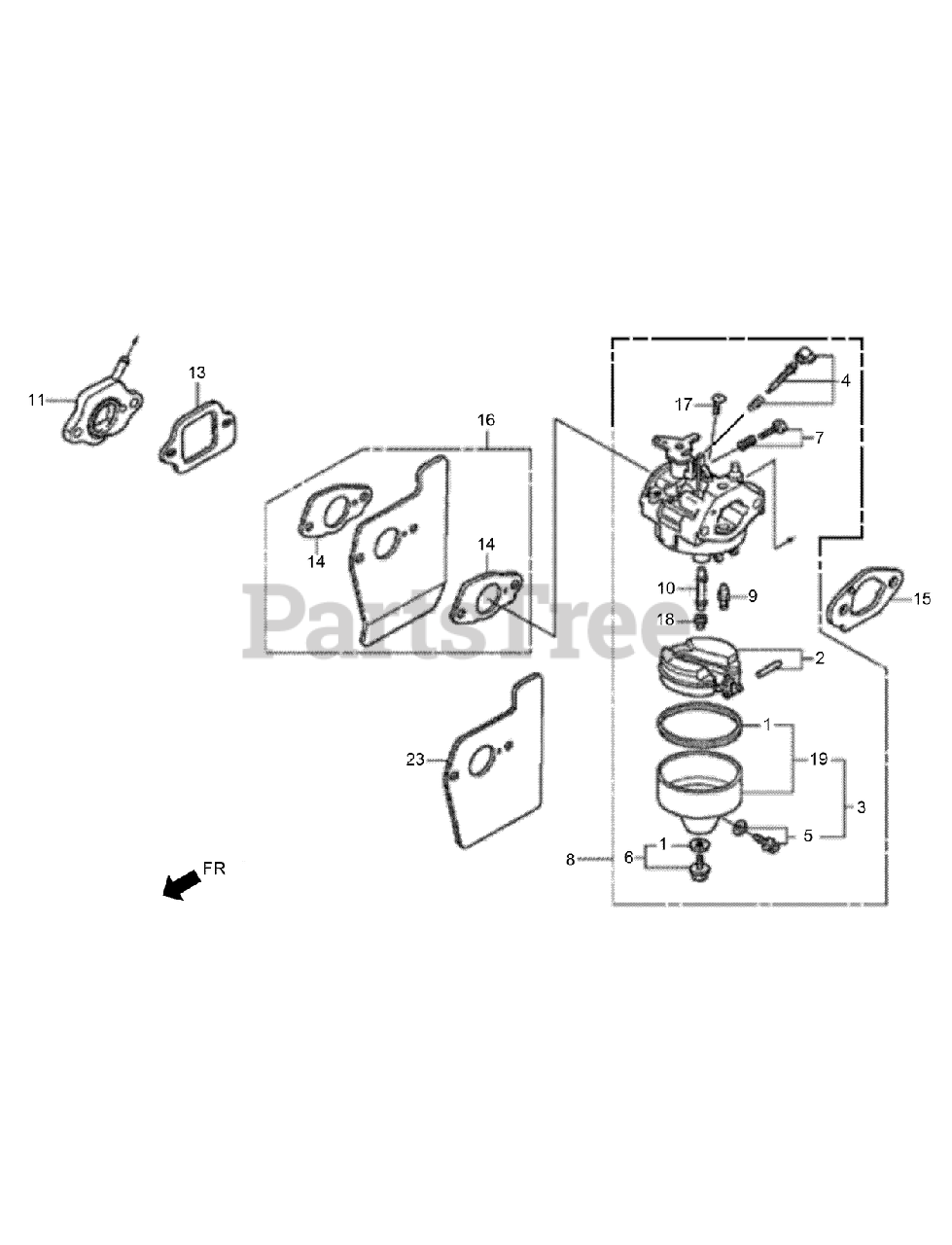

Carburetor Assembly Parts Diagram

  • Title

1

Toro 132-0238

PACKING SET

$21.99

$

Usually ships in 3-6 days

0

2

Toro 132-0244

FLOAT SET

$68.99

$

Usually ships in 3-6 days

0

3

Toro 132-0245

CHAMBER SET-FLOAT

$68.99

$

Usually ships in 3-6 days

0

4

Toro 132-0249

SCREW SET

$50.99

$

Usually ships in 3-6 days

0

5

Toro 132-0252

SCREW SET-DRAIN

$46.99

$

Usually ships in 3-6 days

0

6

Toro 132-0254

SCREW SET

$47.99

$

Usually ships in 3-6 days

0

7

Toro 132-0256

SCREW SET

$48.99

$

Usually ships in 3-6 days

0

8

Toro 132-0259

CARBURETOR ASM (to S/N 2017060)

$

$

Currently unavailable

8

Toro 132-0260

CARBURETOR ASM

$

$

Not available

8

Toro 132-0261

CARBURETOR ASM

$155.99

$

Usually ships in 3-6 days

0

8

Toro 132-0262

CARBURETOR ASM

$155.99

$

Usually ships in 3-6 days

0

9

Toro 132-0270

VALVE-FLOAT

$59.99

$

Usually ships in 3-6 days

0

9

Toro 132-0269

VALVE-FLOAT

$

$

Not available

10

Toro 132-0274

NOZZLE-MAIN

$50.99

$

Usually ships in 3-6 days

0

11

Toro 132-0277

CARBURETOR INSULATOR ASM

$49.99

$

Usually ships in 3-6 days

0

13

Toro 132-0282

PACKING-INSULATOR

$11.99

$

Usually ships in 3-6 days

0

14

Toro 132-0285

PACKING-CARBURETOR

$5.49

$

Usually ships in 3-6 days

0

15

Toro 132-0289

PACKING-CARBURETOR

$4.99

$

Usually ships in 3-6 days

0

16

Toro 132-0475

AIR GUIDE ASM

$18.99

$

Usually ships in 3-6 days

0

17

Toro 132-0677

SCREW-PAN-5X6

$2.99

$

Usually ships in 3-6 days

0

18

Toro 131-8234

JET-MAIN NO. 62

$23.99

$

Usually ships in 3-6 days

0

19

Toro 132-0246

CHAMBER SET-FLOAT

$73.99

$

Usually ships in 3-6 days

0

23

Toro 132-0476

GUIDE-AIR

$1.99

$

Usually ships in 3-6 days

0
