02603 - Toro HoverPro 450 Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Flywheel and Ignition Coil Assembly Parts Diagram

HoverPro 450 Walk-Behind Mower

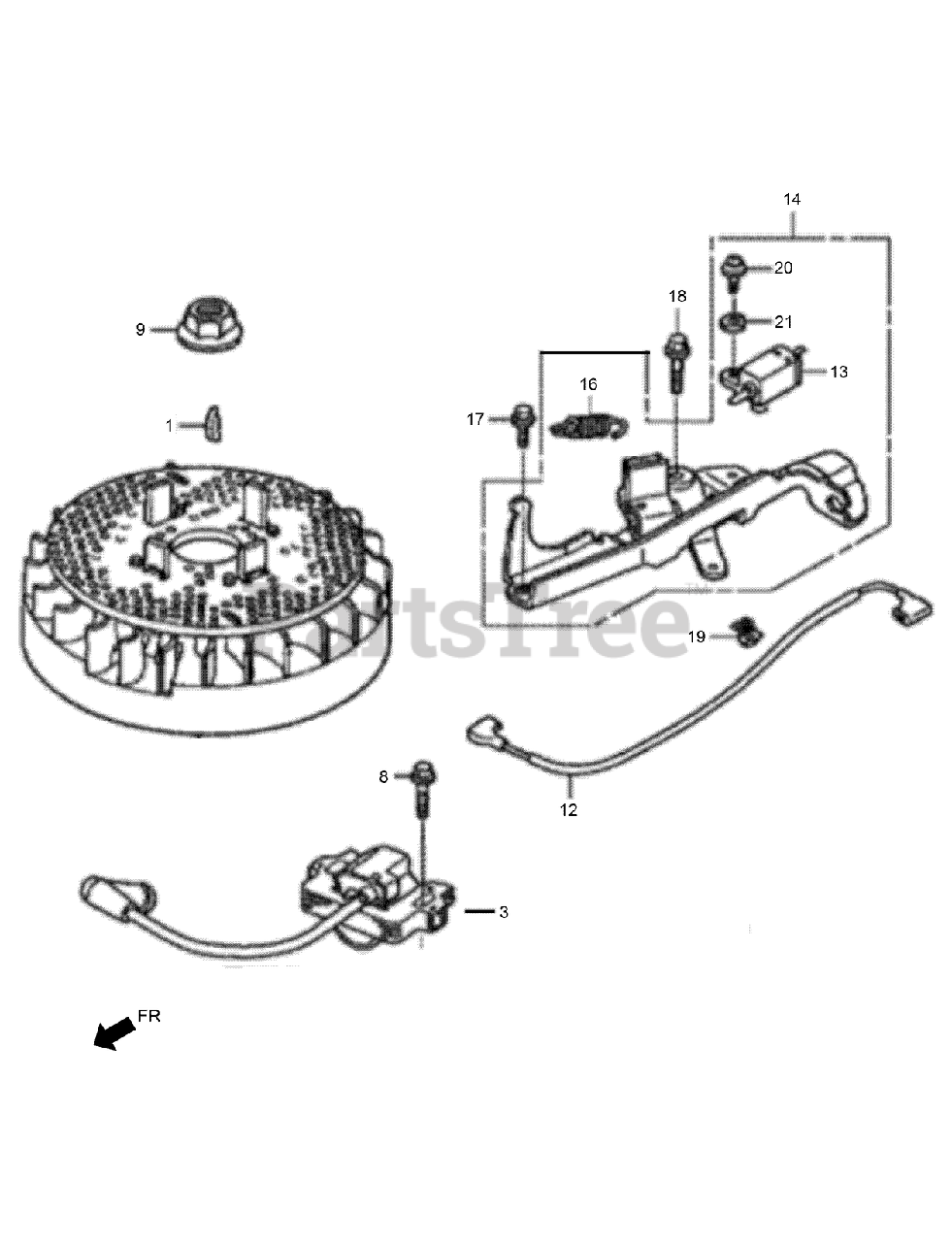

Flywheel and Ignition Coil Assembly Parts Diagram

  • Title

1

Toro 132-0167

KEY-SPECIAL WOODRUFF-25X18

$10.99

$

Usually ships in 3-6 days

0

3

Toro 132-0511

See Supercession: 132-0512
(Superseded to 132-0512)

$152.99

$

Usually ships in 3-6 days

0

3

Toro 132-0512

COIL ASM-IGNITION

$152.99

$

Usually ships in 3-6 days

0

8

Toro 132-0605

BOLT-FLANGE-6X20

$10.99

$

Usually ships in 3-6 days

0

9

Toro 132-0624

NUT-SPECIAL-14MM

$25.99

$

Usually ships in 3-6 days

0

12

Toro 132-0525

CORD-STOP SWITCH

$22.99

$

Usually ships in 3-6 days

0

13

Toro 132-0531

SWITCH ASM-ENGINE STOP

$24.99

$

Usually ships in 3-6 days

0

14

Toro 132-0535

BRAKE ASM

$74.99

$

Usually ships in 3-6 days

0

14

Toro 132-0536

BRAKE ASM

$51.99

$

Usually ships in 3-6 days

0

16

Toro 132-0538

SPRING-BRAKE LEVER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 132-0595

BOLT-FLANGE-6X14

$10.99

$

Usually ships in 3-6 days

0

18

Toro 132-0603

BOLT-FLANGE-6X23

$8.49

$

Usually ships in 3-6 days

0

19

Toro 132-0645

CLIP A-CABLE

$2.99

$

Usually ships in 3-6 days

0

20

Toro 132-0682

SCREW-WASHER-4X12

$8.49

$

Usually ships in 3-6 days

0

21

Toro 132-0689

WASHER-PLAIN-4MM

$9.49

$

Usually ships in 3-6 days

0
