02604 - Toro HoverPro 500 Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Carburetor Assembly Parts Diagram

HoverPro 500 Walk-Behind Mower

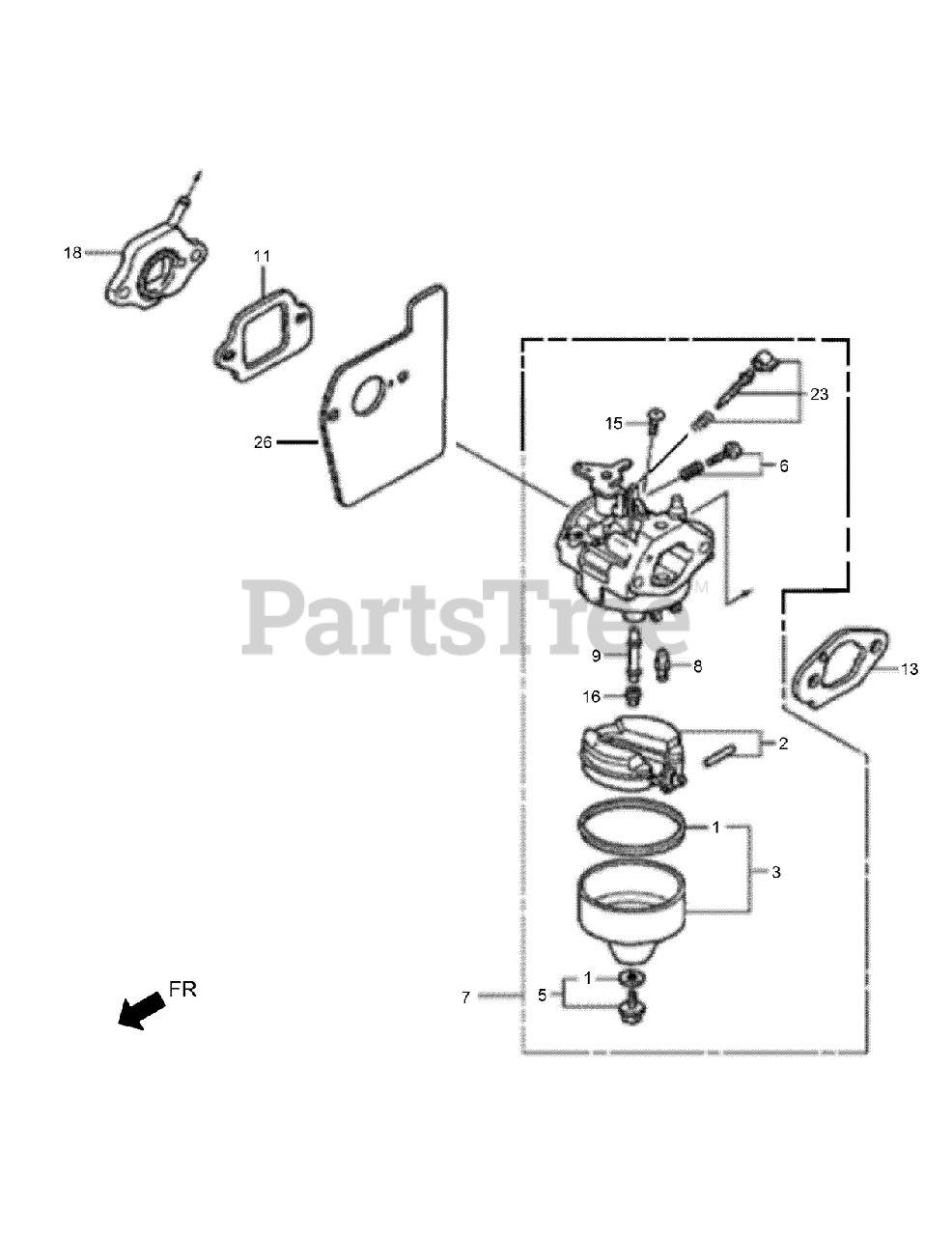

Carburetor Assembly Parts Diagram

  • Title

1

Toro 132-0238

PACKING SET

$21.99

$

Usually ships in 3-6 days

0

2

Toro 132-0244

FLOAT SET

$68.99

$

Usually ships in 3-6 days

0

3

Toro 132-0246

CHAMBER SET-FLOAT

$73.99

$

Usually ships in 3-6 days

0

5

Toro 132-0254

SCREW SET

$47.99

$

Usually ships in 3-6 days

0

6

Toro 132-0256

SCREW SET

$48.99

$

Usually ships in 3-6 days

0

7

Toro 132-0264

CARBURETOR ASM (BB62Y C)

$51.99

$

Usually ships in 3-6 days

0

8

Toro 132-0270

VALVE-FLOAT

$59.99

$

Usually ships in 3-6 days

0

9

Toro 132-0273

NOZZLE-MAIN (BB62W C)

$

$

Not available

11

Toro 132-0282

PACKING-INSULATOR

$11.99

$

Usually ships in 3-6 days

0

13

Toro 132-0289

PACKING-CARBURETOR

$4.99

$

Usually ships in 3-6 days

0

15

Toro 132-0677

SCREW-PAN-5X6

$2.99

$

Usually ships in 3-6 days

0

16

Toro 131-8234

JET-MAIN NO. 62

$23.99

$

Usually ships in 3-6 days

0

16

Toro 131-8235

JET-MAIN NO. 65

$26.99

$

Usually ships in 3-6 days

0

18

Toro 132-0277

CARBURETOR INSULATOR ASM

$49.99

$

Usually ships in 3-6 days

0

23

Toro 132-0249

SCREW SET

$50.99

$

Usually ships in 3-6 days

0

26

Toro 132-0476

GUIDE-AIR

$1.99

$

Usually ships in 3-6 days

0
