02604 - Toro HoverPro 500 Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Control Assembly Parts Diagram

HoverPro 500 Walk-Behind Mower

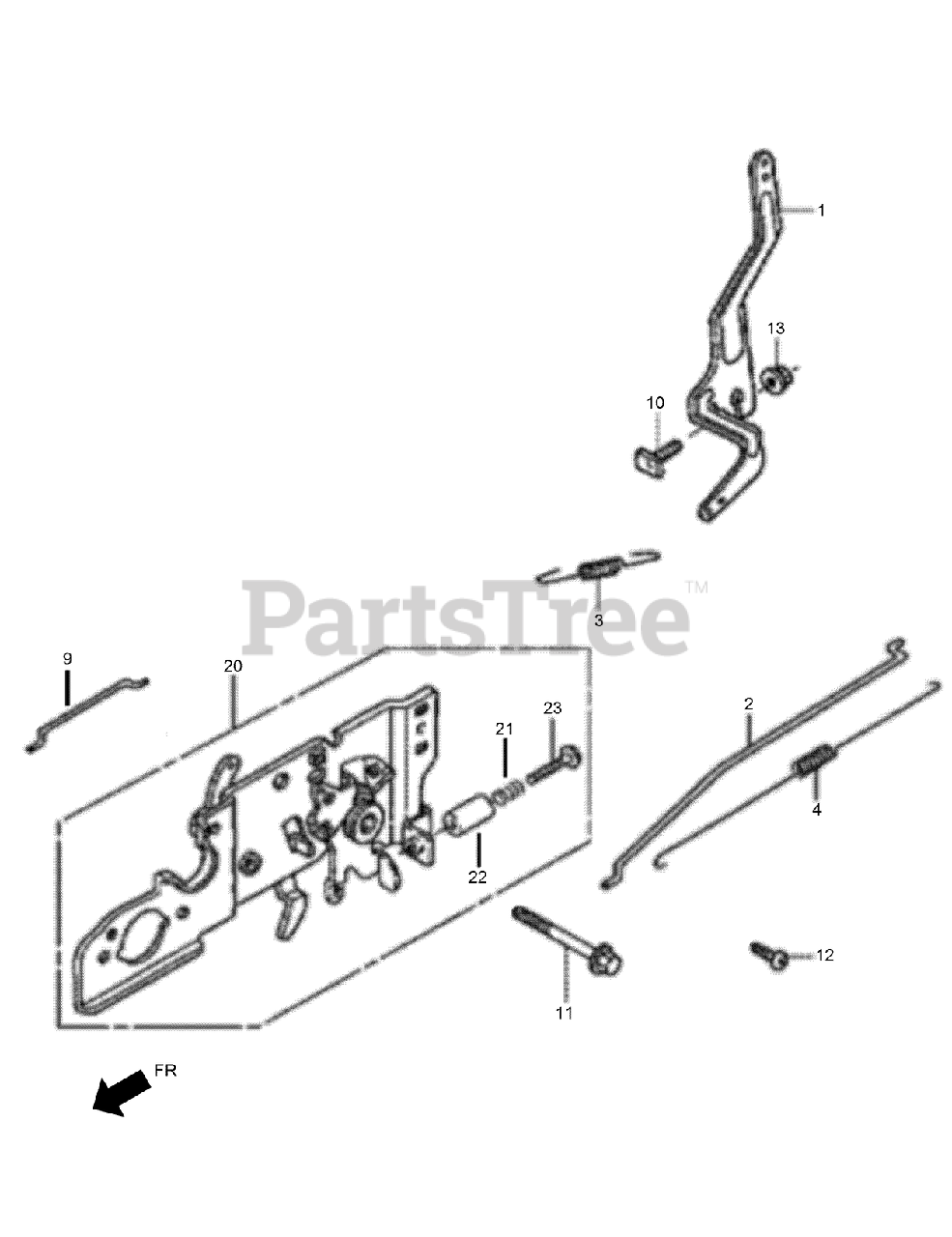

Control Assembly Parts Diagram

  • Title

1

Toro 132-0312

ARM-GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

2

Toro 132-0317

ROD-GOVERNOR

$

$

Not available

3

Toro 132-0321

SPRING-GOVERNOR

$8.49

$

Usually ships in 3-6 days

0

4

Toro 132-0325

SPRING-THROTTLE RETURN

$6.99

$

Usually ships in 3-6 days

0

9

Toro 132-0345

ROD-CHOKE

$5.99

$

Usually ships in 3-6 days

0

10

Toro 132-0598

BOLT-GOVERNOR ARM

$11.99

$

Usually ships in 3-6 days

0

11

Toro 132-0602

BOLT-FLANGE-6X45

$

$

Not available

12

Toro 132-0678

SCREW-PAN-5X16

$3.49

$

Usually ships in 3-6 days

0

13

Toro 132-4881

NUT-FLANGE-6MM

$3.49

$

Usually ships in 3-6 days

0

20

Toro 132-0336

CONTROL BASE ASM

$63.99

$

Usually ships in 3-6 days

0

21

Toro 132-0340

SPRING-CONTROL ADJUSTING

$9.49

$

Usually ships in 3-6 days

0

22

Toro 132-0342

COLLAR-STOPPER

$7.99

$

Usually ships in 3-6 days

0

23

Toro 132-0601

SCREW-RECESSED-5X28

$53.99

$

Usually ships in 3-6 days

0
