02657 - Toro ProStripe 560 Walk-Behind Mower (SN: 407000000 - 410069999) Handle Assembly Parts Diagram

ProStripe 560 Walk-Behind Mower

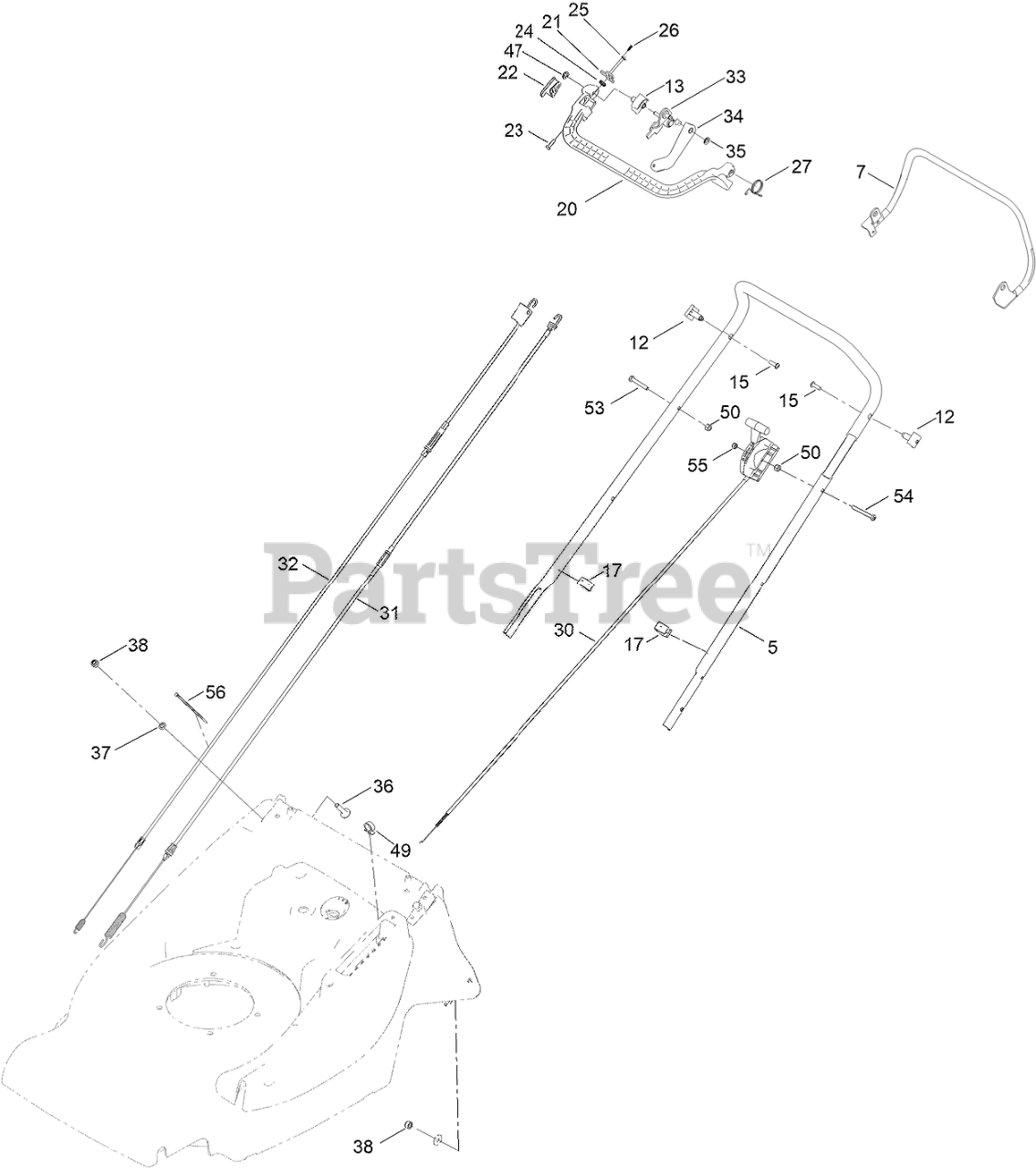

Handle Assembly Parts Diagram

  • Title
5

Toro 134-2722-03

HANDLEBAR-UPPER

$

$

Currently unavailable

7

Toro 111-9381-03

LEVER-CLUTCH, GEARBOX

$

$

Currently unavailable

12

Toro 340182

PIN-PIVOT

$

$

Currently unavailable

13

Toro 111-8990

CLAMP-BAR

$

$

Currently unavailable

15

Toro 09687

SCREW

$

$

Currently unavailable

17

Toro 410037

GUIDE-CABLE

$

$

Currently unavailable

20

Toro 134-2608

ARM-BAIL

$

$

Currently unavailable

21

Toro 111-8903

LEVER-CATCH

$

$

Currently unavailable

22

Toro 134-3190

LATCH-BUTTON

$

$

Currently unavailable

23

Toro 111-8908

LATCH-PIN

$

$

Currently unavailable

24

Toro 111-8906

LEVER-BAIL, SPRING

$

$

Currently unavailable

25

Toro 111-0718

FASTENER-STARLOCK, PUSH-ON

$

$

Currently unavailable

26

Toro 134-2027

CLIP-TREE

$

$

Currently unavailable

27

Toro 134-2284

LEVER-BAIL ARM, SPRING

$

$

Currently unavailable

30

Toro 111-8959

THROTTLE-CONTROL

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Toro 111-8962

CLUTCH-CABLE, 3 SPEED

$

$

Currently unavailable

33

Toro 134-2660

ANCHOR PLATE WELDED

$

$

Currently unavailable

34

Toro 134-2662

BBC LINKAGE ASSEMBLY

$

$

Currently unavailable

35

Toro 0201086

WASHER-STARLOCK

$

$

Not available

36

Toro 09379

BOLT-COACH

$

$

Currently unavailable

37

Toro 04020

GRIP-FIX

$

$

Not available

38

Toro 09441

NUT-HEX, NI

$

$

Not available

47

Toro 134-3208

STARLOCK-DOMED

$

$

Currently unavailable

49

Toro 111-8696

CLIP-CONDUIT, TWIN

$

$

Currently unavailable

50

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

53

Toro 05010

BOLT

$

$

Currently unavailable

54

Toro 09780

SETSCREW

$

$

Currently unavailable

55

Toro 09438

NUT-NYLOC

$

$

Not available

56

Toro HY3966

TIE-CABLE

$

$

Not available
