02710 - Toro 32" Rear-Discharge Mower Deck (SN: 410000000 - 999999999) 32in Deck Assembly Parts Diagram

32" Rear-Discharge Mower Deck

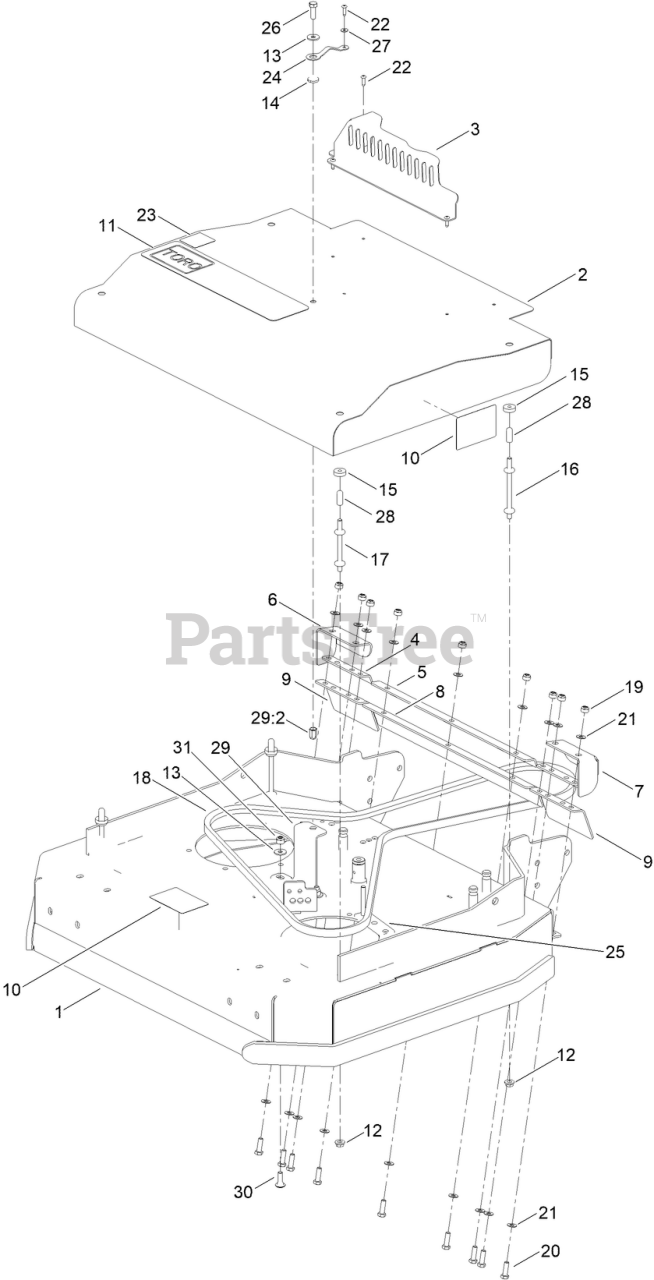

32in Deck Assembly Parts Diagram

  • Title
1

Toro 111-2835-01

32 INCH DECK ASM

$

$

Currently unavailable

2

Toro 111-3923-01

COVER-DECK

$

$

Currently unavailable

3

Toro 111-4929-01

GUARD-PIPE, EXHAUST

$

$

Currently unavailable

4

Toro 111-2851-01

BRACKET-DEFLECTOR, SIDE

$

$

Currently unavailable

5

Toro 111-1545-01

BRACKET-DEFLECTOR, CENTER

$

$

Currently unavailable

6

Toro 111-1643-01

GUARD-DISCHARGE, RH

$

$

Currently unavailable

7

Toro 111-1644-01

GUARD-DISCHARGE, LH

$

$

Currently unavailable

8

Toro 111-1547

DEFLECTOR-CENTRE, RUBBER

$

$

Currently unavailable

9

Toro 111-2848

DEFLECTOR-SIDE, RUBBER

$

$

Currently unavailable

10

Toro 139-5557

DECAL-DANGER, CE

$22.99

$

Usually ships in 3-6 days

0

11

$

$

Currently unavailable

12

Toro 32128-20

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 09267

WASHER

$

$

Currently unavailable

14

Toro 111-3697

NUT-RETAINER

$

$

Currently unavailable

15

Toro 1-323417

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$6.99

$

In Stock, Qty 20+

0

17

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$5.99

$

In Stock, Qty 20+

0

18

Toro 110-9594

BELT-V

$90.99

$

Usually ships in 3-6 days

0

19

Toro ZNN3E000U

NUT-NYLOC

$

$

Currently unavailable

20

Toro ZDH3E016U

SCREW-HH

$

$

Currently unavailable

21

Toro 09475

WASHER

$

$

Currently unavailable

22

Toro 09320

RIVET

$

$

Not available

23

Toro 111-1979

DECAL-NOISE

$

$

Currently unavailable

24

Toro 117-8339

LANYARD-3 INCH

$4.99

$

Usually ships in 3-6 days

0

25

Toro 111-2470-03

GUIDE-BELT

$

$

Currently unavailable

26

Toro 03162

SCREW-HH

$

$

Not available

27

Toro 09257

WASHER

$

$

Not available

28

Toro 111-3882

CAP-END, RUBBER

$

$

Currently unavailable

29

Toro 111-3887

BRACKET-GUARD

$

$

Currently unavailable

29:2

Toro 111-7683

NUT-RIVET

$

$

Not available

30

Toro 09373

BOLT-COACH

$

$

Currently unavailable

31

$

$

Not available
