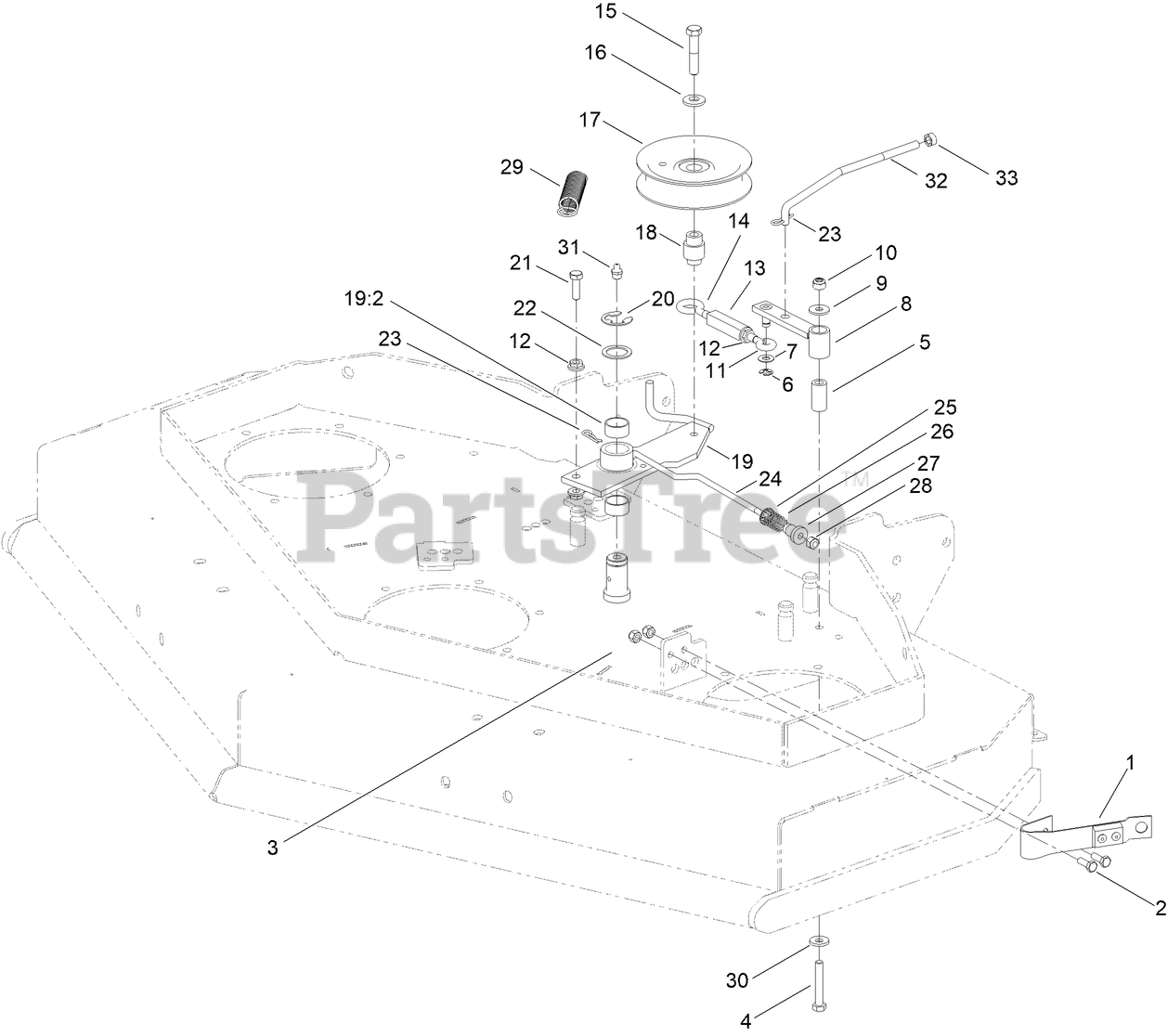

02712 - Toro 48" Rear-Discharge Mower Deck (SN: 410000000 - 999999999) Idler Arm Assembly Parts Diagram

48" Rear-Discharge Mower Deck

Idler Arm Assembly Parts Diagram

  • Title

1

Toro 1-324372

PAD AND SPRING ASM

$66.99

$

In Stock, Qty 9

0

1:1

Toro 1-323709

PAD-BRAKE

Note: Not illustrated

$18.99

$

In Stock, Qty 6

0

1:2

Toro 1-323710

SPRING

Note: Not illustrated

$

$

Not available

1:3

Toro 103-0138

RIVET-POP

Note: Not illustrated

$1.49

$

In Stock, Qty 19

0

2

Toro 09821

SCREW-HH

$

$

Currently unavailable

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

5

Toro 1-403179

TUBE-PIVOT

$18.99

$

In Stock, only 2 left!

0

6

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 12

0

7

Toro ZWP1H000U

WASHER-PLAIN

$

$

Currently unavailable

8

Toro 1-322235

ARM-ASSIST, 32/36

$53.99

$

In Stock, only 1 left!

0

9

Toro 09267

WASHER

$

$

Currently unavailable

10

Toro ZNN3E000U

NUT-NYLOC

$

$

Currently unavailable

11

Toro 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 14

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-303236

BODY-TURNBUCKLE

$21.99

$

In Stock, Qty 9

0

14

Toro 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 17

0

15

Toro 702809

SCREW-HH

$5.49

$

In Stock, Qty 11

0

16

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

17

Toro 132-4718

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

18

Toro 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, Qty 14

0

19

Toro 103-3600

IDLER ARM ASM

$129.99

$

In Stock, only 1 left!

0

19:2

Toro 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

20

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

21

Toro ZDH3E016U

SCREW-HH

$

$

Currently unavailable

22

Toro 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 5

0

23

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

24

Toro 111-1355

ROD-BRAKE

$

$

Currently unavailable

25

Toro 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 17

0

26

Toro 1-323747

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 8

0

27

Toro 1-323746

SPACER-FLANGED

$1.49

$

In Stock, Qty 12

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

30

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

31

Toro 10-11-017

FITTING-STRAIGHT

$

$

Not available

32

Toro 111-1629

ROD-LINKAGE, DRIVE

$

$

Currently unavailable

33

Toro 09207

NUT

$

$

Currently unavailable
