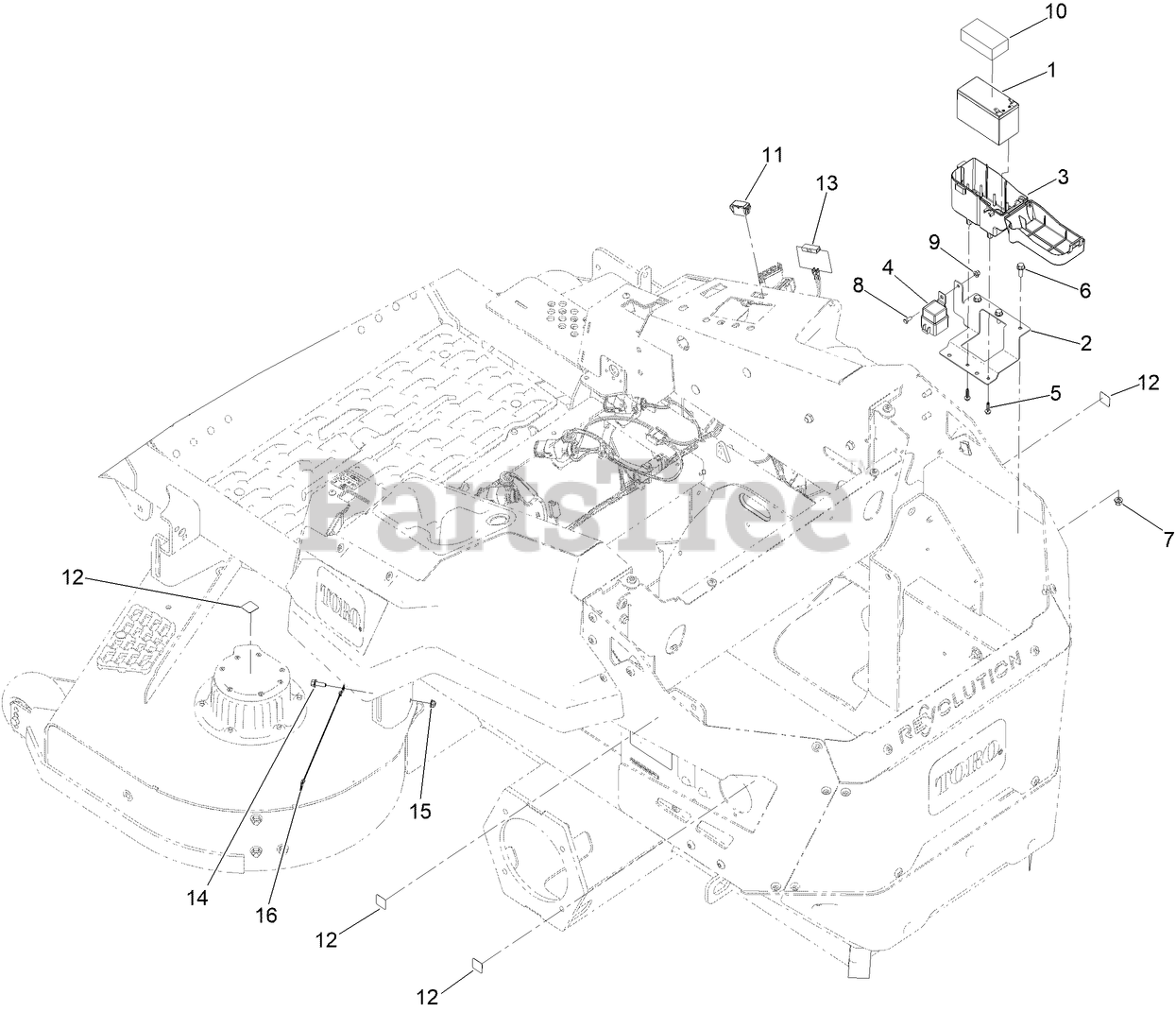

02938 - Toro Road Light Kit for eZ-Master Revolution Mowers (SN: 400000000 - 999999999) Battery Box Assembly Parts Diagram

Road Light Kit for eZ-Master Revolution Mowers

Battery Box Assembly Parts Diagram

  • Title

1

Toro 127-0694

BATTERY-NONSPILLABLE, 12 V

$87.99

$

In Stock, only 1 left!

0

2

Toro 162-0333-03

BRACKET-BATTERY

$

$

Currently unavailable

3

Toro 127-0695

BATTERY BOX ASM

$8.49

$

In Stock, only 1 left!

0

4

Toro 99-7430

RELAY-MINI

$26.99

$

In Stock, Qty 5

0

5

Toro 139-1690

SCREW-PLASTIC, HWH

$0.99

$

Usually ships in 3-6 days

0

6

Toro 134-3740

SCREW-HHF

$

$

Currently unavailable

7

Toro 134-3761

NUT-FLANGE, NI

$

$

Currently unavailable

8

Toro ZDH1E012U

SCREW-HH

$

$

Currently unavailable

9

Toro 134-3738

NUT-FLANGE, NI

$

$

Currently unavailable

10

Toro 107-3774

FOAM-BATTERY, TOP

$5.49

$

In Stock, Qty 12

0

11

Toro 122-3983

PLUG-HOLE

$

$

Currently unavailable

12

Toro 145-7345

DECAL-VOLTAGE, HIGH

$

$

Currently unavailable

13

Toro 32180-647

ADAPTER-TERMINAL, TAB-TO-TAB

$

$

Currently unavailable

14

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 122-3473

CABLE-STRAP, BRAIDED

$

$

Currently unavailable
