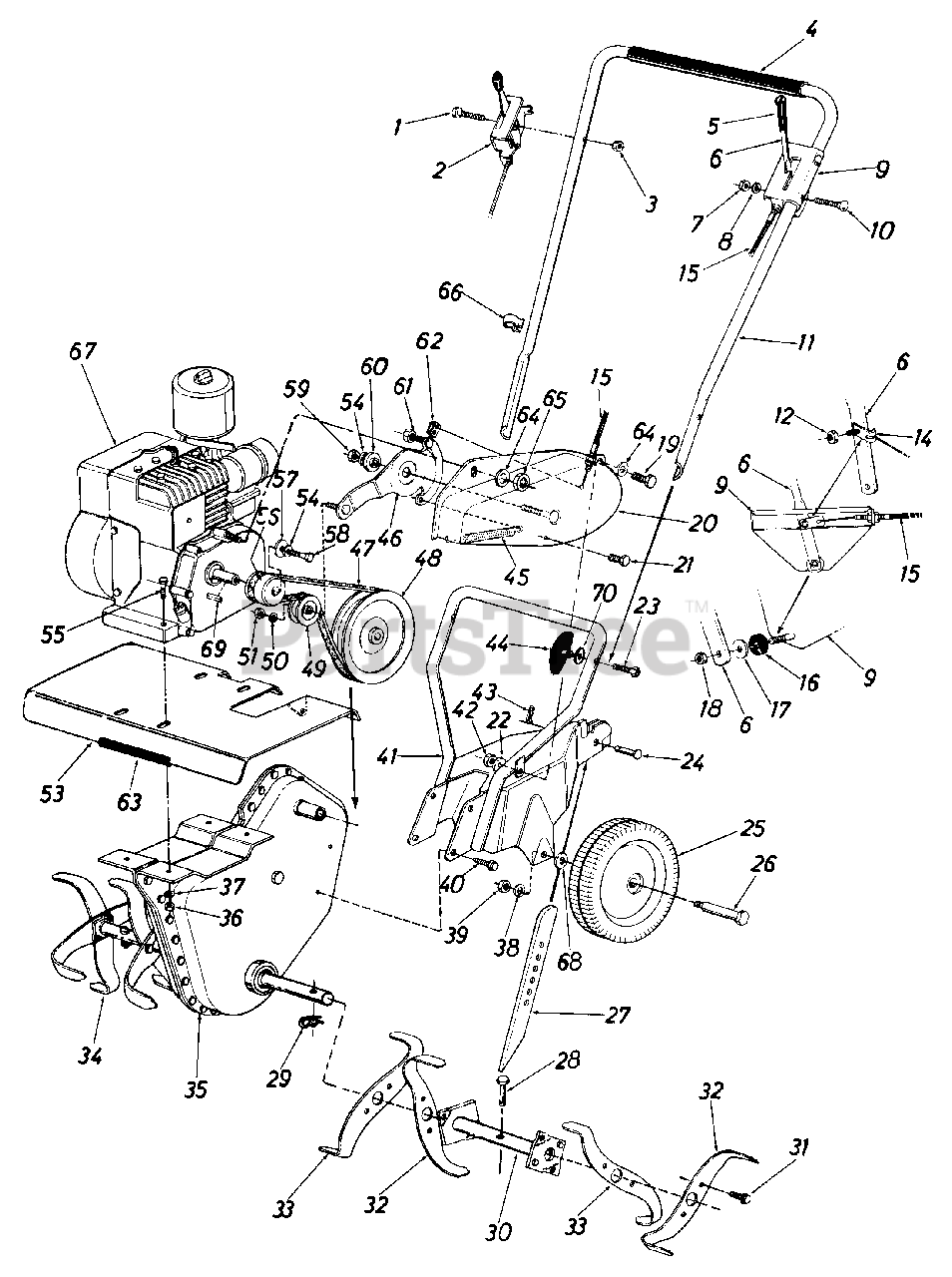

030 (215-030-100) - Cub Cadet Front-Tine Tiller (1985) Tiller Parts Diagram

Front-Tine Tiller

Tiller Parts Diagram

  • Title

1

Cub Cadet 710-0606

SCREW-HEX 1/4-20 X 1.50

$4.99

$

In Stock, Qty 15

0

2

Cub Cadet 746-0242

CONTROL-THROTTLE

$

$

Not available

3

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

$

$

Currently unavailable

5

Cub Cadet 720-0184

GRIP-BLACK

$

$

Currently unavailable

6

Cub Cadet 04773

HANDLE ASSY-CLUTCH

$

$

Currently unavailable

7

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 04771

BRACKET-CLUTCH HDLE

$

$

Currently unavailable

10

Cub Cadet 710-0111

BOLT-CARRIAGE 1/4-20 X 1.25

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 749-0246

HANDLE-UPPER

$

$

Not available

12

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 746-0260

FITTING-CLEVIS LANYARD

$

$

Not available

15

Cub Cadet 746-0294

CABLE-CLUTCH

$

$

Not available

16

Cub Cadet 735-0127

WASHER-RUBBER

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

18

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0252

SCREW-HEX 1/4-20 X .75
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 04768

COVER ASSY-BELT

$

$

Not available

21

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

23

Cub Cadet 710-0405

BOLT-CARRIAGE 5/16-18 X 1.75
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 711-0653

PIN-CLEVIS

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 734-0840

WHEEL ASSY

$

$

Not available

26

Cub Cadet 738-0126

SCREW-SHLD .498 DIA X 1.450 LG THD
(Superseded to 738-0213)

$7.49

$

In Stock, Qty 5

0

27

Cub Cadet 04764

BAR-DEPTH

Note: Color Code 499

$

$

Not available

28

Cub Cadet 711-0702

PIN-CLEVIS

$

$

Not available

29

Cub Cadet 714-0145

PIN-INTERN COT

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 04918

ADAPTER ASSY-TINE
(Superseded to 04918-0637)

Variations

Cub Cadet 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 04923

TINE-LH
(Superseded to 04923-0637)

Variations

Cub Cadet 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 04922

TINE-RH

$

$

Not available

34

Cub Cadet 04921

TINE ASSY-COMP

$

$

Not available

35

Cub Cadet 04924

CASE ASSY-CHAIN COMP

Note: Color Code 499

$

$

Currently unavailable

36

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0199

WASHER-FL-.344ID X .75OD X .250 SP

$

$

Currently unavailable

38

Cub Cadet 736-0217

WASHER-HDL 3/8

$3.99

$

In Stock, Qty 13

0

39

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 12

0

40

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$3.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 04762

BRACKET ASSY-SUPPORT

Note: Color Code 499

Variations

Cub Cadet 04762-0637

BRACKET ASSEMBLY-SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 09966

KNOB-HANDLE ASSY
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

45

Cub Cadet 732-0199

SPRING-EXTENSION

$

$

Not available

46

Cub Cadet 04865

ARM ASSY-IDLER

$

$

Currently unavailable

47

Cub Cadet 754-0216

BELT-V 3/8 X 29
(Superseded to 954-0216)

$30.99

$

In Stock, only 1 left!

0

48

Cub Cadet 756-0287

PULLEY

$

$

Not available

49

Cub Cadet 756-0199

PULLEY-IDLER-FLAT W/FLANGES

$23.99

$

In Stock, only 2 left!

0

50

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

53

Cub Cadet 04765

SHIELD-TINE

Note: Color Code 499

Variations

Cub Cadet 04765-0498

TINE SHIELD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04765-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

56

Cub Cadet 756-0286

PULLEY

$

$

Not available

57

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.49

$

In Stock, only 2 left!

0

58

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

59

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0289

WASHER-BUSHING
(Superseded to 936-0289)

$6.49

$

In Stock, only 1 left!

0

61

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

62

Cub Cadet 746-0260

FITTING-CLEVIS LANYARD

$

$

Not available

63

Cub Cadet 731-0511

STRIP-TRIM-12IN

$3.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

65

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

66

Cub Cadet 725-0157

TIE-CABLE

$3.49

$

In Stock, only 4 left!

0

67

Note: ENGINE

$

$

Not available

68

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

69

Cub Cadet 714-0122

KEY-SQ 3/16 X .75

$3.49

$

In Stock, Qty 17

0

70

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.99

$

In Stock, Qty 20+
