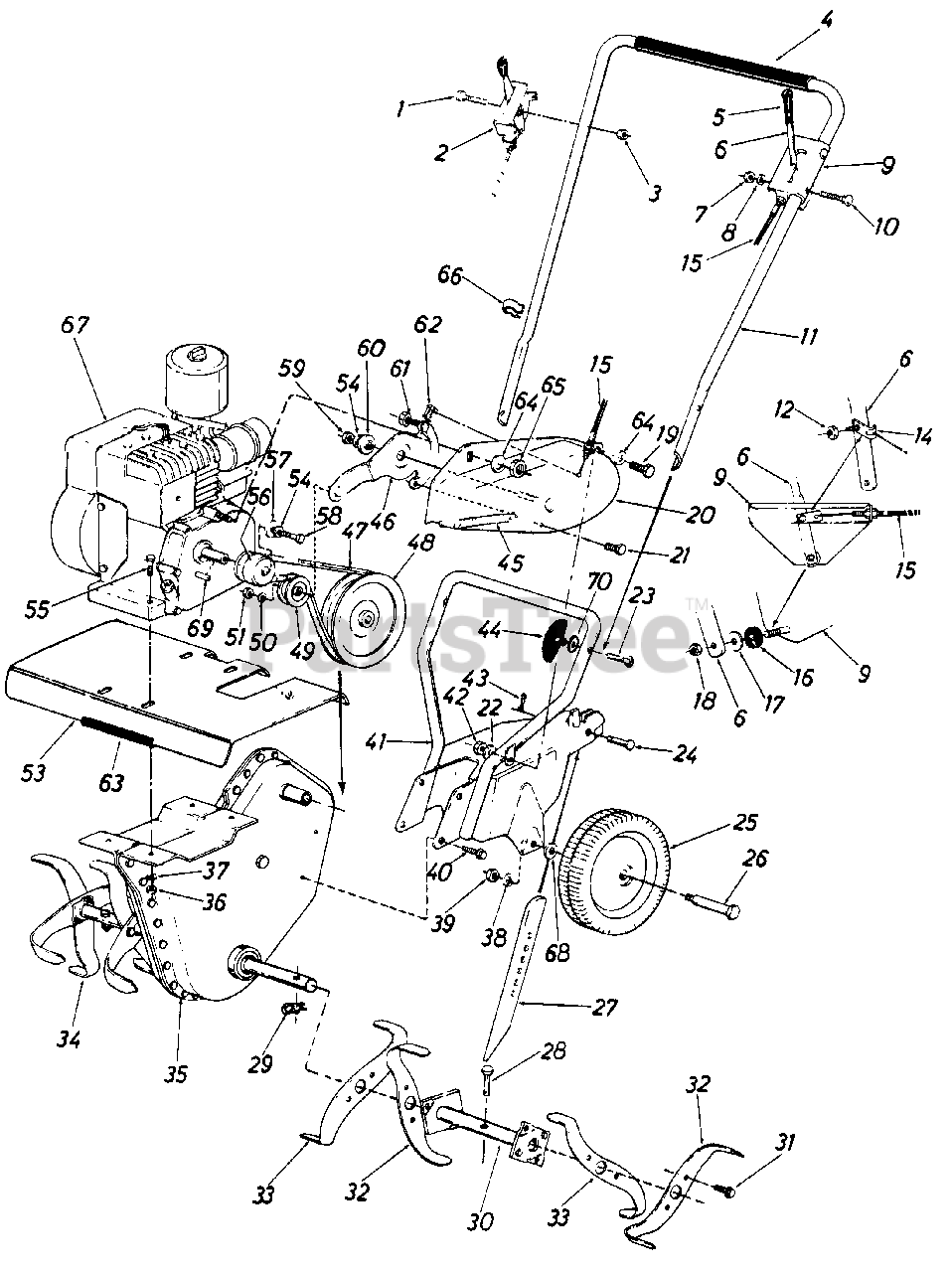

030 (217-030-100) - Cub Cadet Front-Tine Tiller (1987) Tiller Parts Diagram

Front-Tine Tiller

Tiller Parts Diagram

  • Title

1

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$4.99

$

In Stock, Qty 15

0

2

Cub Cadet 746-0242

Throttle Control Ass'y. Comp.

$

$

Not available

3

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 718-0145

Grip-14" Lg.

$

$

Currently unavailable

5

Cub Cadet 720-0184

Handle Grip

$

$

Currently unavailable

6

Cub Cadet 04773

Clutch Handle Ass'y.

$

$

Currently unavailable

7

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0142

Fl-Wash. 1/4" I.D. x .50" O.D. x .063

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 04771

Clutch Handle Brkt. Ass'y.

$

$

Currently unavailable

10

Cub Cadet 710-0111

Carr. Bolt 1/4-20 X 1.25" Lg.

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 749-0246

Upper Handle

$

$

Not available

12

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 746-0260

Clevis

$

$

Not available

15

Cub Cadet 746-0294

Clutch Cable

$

$

Not available

16

Cub Cadet 735-0127

Rubber Wash.

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0173

Fl-Wash. 1/4" I.D. x .75" O.D. x .063

$3.99

$

In Stock, Qty 10

0

18

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 04768

Belt Cover Ass'y.

Note: Color Code 498

$

$

Not available

21

Cub Cadet 710-0599

Hex Wash. Hd. Tap Scr. 1/4 x .50"

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

23

Cub Cadet 710-0405

Curved Hd. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 734-1176

Wheel Ass'y.-7"

$

$

Not available

26

Cub Cadet 738-0126

Shoulder Bolt
(Superseded to 738-0213)

$7.49

$

In Stock, Qty 5

0

27

Cub Cadet 04764

Depth Bar

Note: Color Code 498

$

$

Not available

28

Cub Cadet 711-0702

Clevis Pin .31 Dia. x 1.5"

$

$

Not available

29

Cub Cadet 714-0145

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 04918

Tine Adapter Ass'y.
(Superseded to 04918-0637)

Variations

Cub Cadet 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 04923

Tine Blade-L.H.
(Superseded to 04923-0637)

Variations

Cub Cadet 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 04922

Tine Blade-R.H.

$

$

Not available

34

Cub Cadet 04921

Tine Ass'y. Comp.

$

$

Not available

35

Cub Cadet 04924

Chain Case Ass'y. Comp.

Note: Color Code 498

$

$

Currently unavailable

36

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0217

L-Wash. 3/8" Scr. H.D.

$3.99

$

In Stock, Qty 13

0

39

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

40

Cub Cadet 710-0600

Hex Wash. SF-Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 04762

Support Brkt. Ass'y.

Variations

Cub Cadet 04762-0637

BRACKET ASSEMBLY-SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet 714-0104

Intern. Cotter Pin

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 09966

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

45

Cub Cadet 732-0199

Extension Spring 4.88" Lg.

$

$

Not available

46

Cub Cadet 04865

Idler Arm Ass'y.

$

$

Currently unavailable

47

Cub Cadet 754-0216

Belt 318" x 29" Lg.
(Superseded to 954-0216)

$30.99

$

In Stock, only 1 left!

0

48

Cub Cadet 756-0287

Chain Case Pulley 5-1/2 x 1/2"

$

$

Not available

49

Cub Cadet 756-0199

Fl-ldler 2"

$23.99

$

In Stock, only 2 left!

0

50

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0116

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

53

Cub Cadet 04765

Tine Shield

Note: Color Code 498

Variations

Cub Cadet 04765-0498

TINE SHIELD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04765-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

56

Cub Cadet 756-0286

Engine Pulley 3/8 V x .7525 I.D. x 2" O.D.

$

$

Not available

57

Cub Cadet 736-0258

Fl-Wash. .385 I.D. x 1.00" O.D. x .135

$4.49

$

In Stock, Qty 5

0

58

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

59

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0289

Shld. Spacer .50" Dia. x .133
(Superseded to 936-0289)

$6.49

$

In Stock, only 1 left!

0

61

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

62

Cub Cadet 746-0260

Clevis

$

$

Not available

63

Cub Cadet 731-0511

Trim Strip-4"

$3.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

65

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

66

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 2 left!

0

67

Engine

$

$

Not available

68

Cub Cadet 736-0219

Bell-Wash.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

69

Cub Cadet 714-0122

Square Key 3/16 x 3/4" Lg.

$3.49

$

In Stock, Qty 17

0

70

Cub Cadet 736-0242

Belleville Washer

$3.99

$

In Stock, Qty 20+

0
