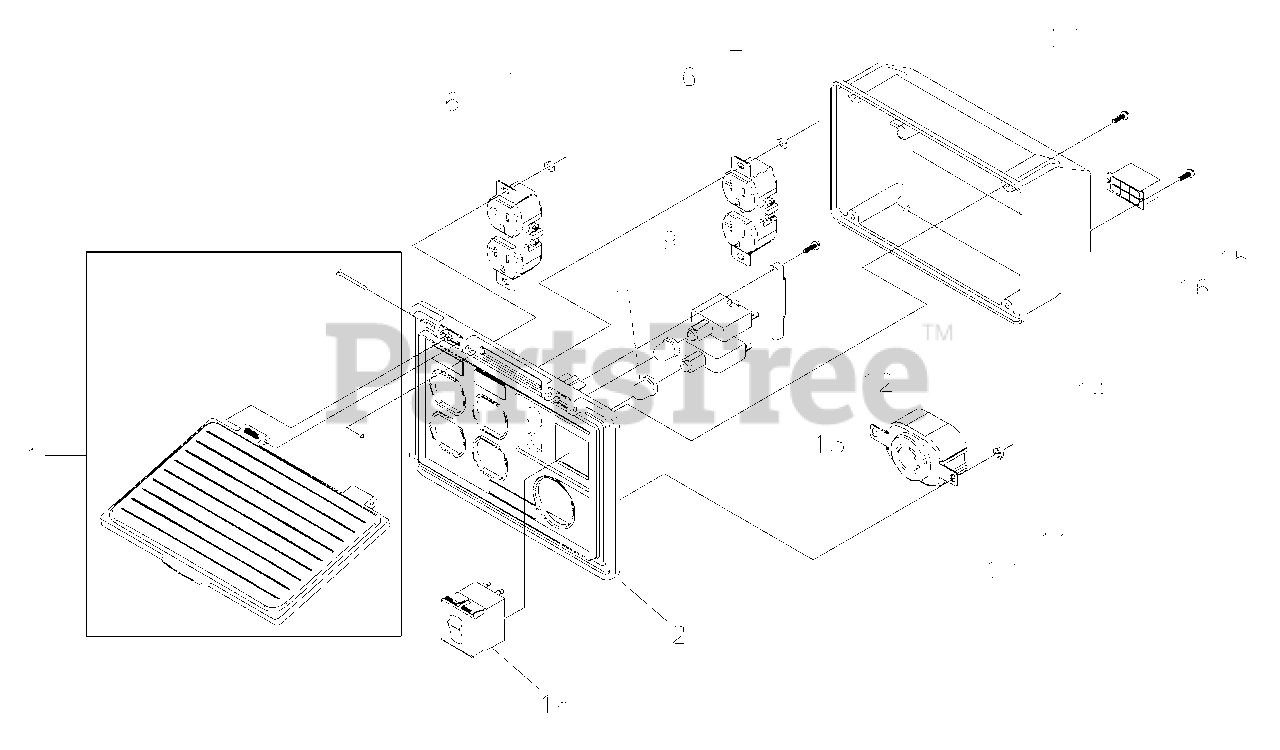

030205-0 - Briggs & Stratton 5,800 Watt Portable Generator Control Panel (199731) Parts Diagram

5,800 Watt Portable Generator

Control Panel (199731) Parts Diagram

  • Title

1

Briggs & Stratton 195112GS

ASSY, Control Lid Panel

$

$

Not available

2

Briggs & Stratton 192273EGS

PANEL, Control, Compact

$28.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20A, Duplex

$24.99

$

In Stock, only 4 left!

0

7

-----

NUT, Palnut, Pushnut, 5/32

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 84198GS

CAP, Breaker, Circuit

$4.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 75207PGS

BREAKER, Circuit
(Superseded to 706175)

$31.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 43437GS

OUTLET, 120/240V Locking, 30A

$17.99

$

Usually ships in 2-12 days

0

11

-----

NUT, Palnut, Pushnut, 3/16

Note: (Purchase locally)

$

$

Not available

12

-----

PPHMS, 3.5 x 18

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192274GS

BOX, Rear Cover

$32.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 82308GS

SCREW,Tapping, STC 3 x 18

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192241GS

SCREW,Tapping, 3.5 x 14

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 191479BGS

BREAKER, Circuit, 25A

$

$

Not available
