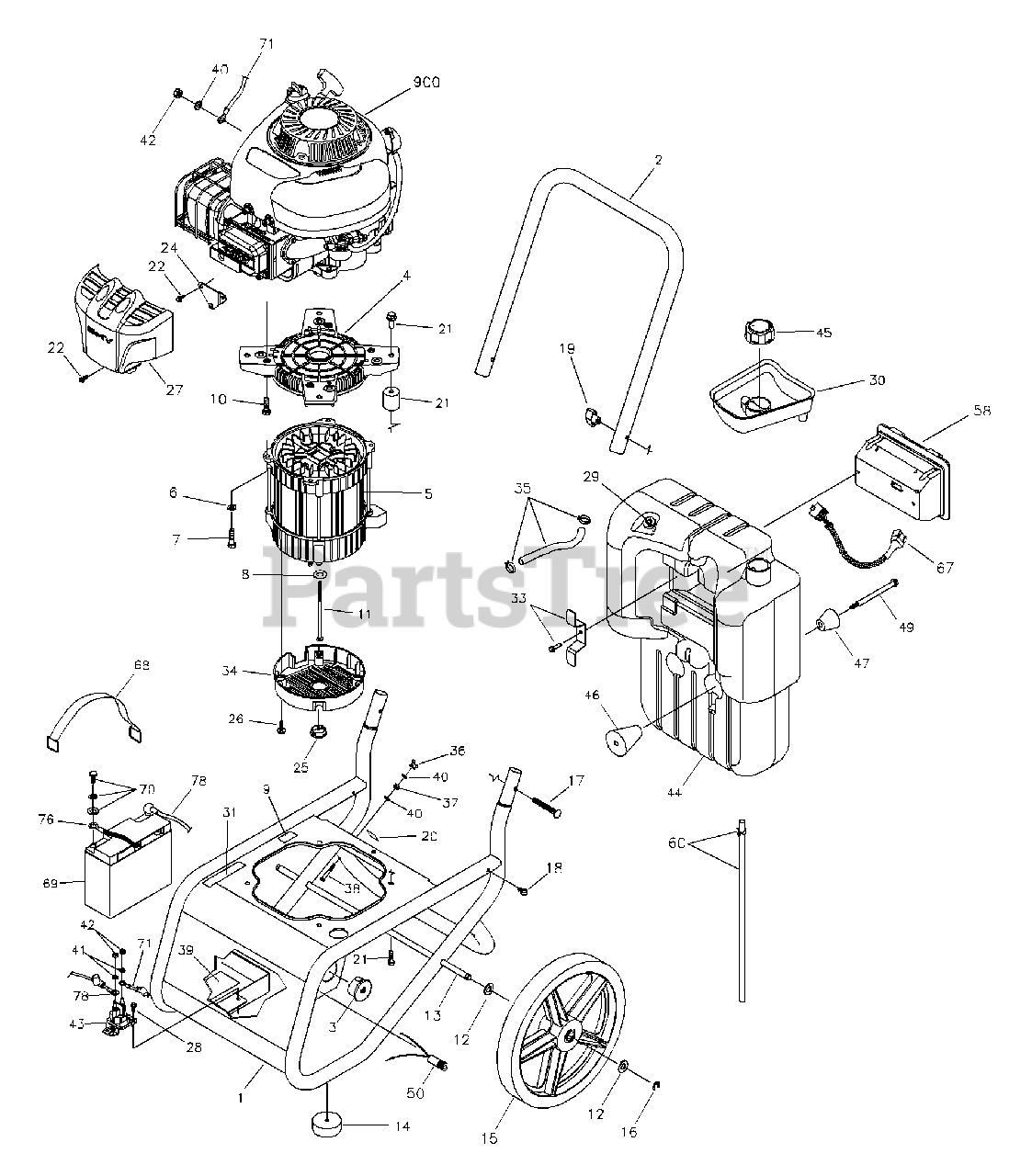

030205-0 - Briggs & Stratton 5,800 Watt Portable Generator Main Unit (199730) Parts Diagram

5,800 Watt Portable Generator

Main Unit (199730) Parts Diagram

  • Title

1

Briggs & Stratton J199622GS

KIT, Cradle

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton J194925GS

HANDLE

$

$

Not available

3

Briggs & Stratton 199507GS

SWITCH, Key

$23.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

-----

WASHER, Lock, 5/16 - M8

Note: (Purchase locally)

$

$

Not available

7

-----

HHCS, 5/16-18 x 1

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75246GS

TAPTITE, 3/8 - 16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365BGS

HHCS, 5/16-24 x 8.62

$26.99

$

Usually ships in 2-12 days

0

12

-----

WASHER, 1/2

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 196914GS

AXLE

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192553GS

KIT, Vibration Mount Hardware

Note: (2 sets)

$16.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 191908GS

WHEEL
(Superseded to 193548GS)

$

$

Not available

16

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

17

Briggs & Stratton 31669GS

BOLT, Carriage, 1/4-20 x 1-3/4

$3.49

$

In Stock, only 2 left!

0

18

Briggs & Stratton 195733GS

MOUNT, Tiewrap

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 194289GS

KNOB, Handle

$7.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194727GS

KIT,Vibration Mount

$32.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93343GS

SCREW, Hex Head Tapping
(Superseded to 690297)

$3.49

$

In Stock, Qty 9

0

24

Briggs & Stratton 198975GS

BRACKET, Mounting Head Guard

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP, Bolt, Rotor

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 199496GS

GUARD, Head

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B4300GS

HHS, Trilobular, 1/4 - 20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 196063GS

ASSY, Tube Lift

$

$

Not available

30

Briggs & Stratton 192921GS

SHIELD, Fuel Fill

$24.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Caution Exhaust

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 193504GS

DECAL, Battery Instructions

$12.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194721GS

KIT, Retaining Brckt with Hardware

$21.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 191029GS

COVER, RBC, Plastic

$23.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Line w/ Clamps (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

37

-----

NUT, M6 - 1.0 Lock

Note: (Purchase locally)

$

$

Not available

38

-----

HHCS, M6-1.0 x 55

Note: (Purchase locally)

$

$

Not available

39

Briggs & Stratton 198874GS

TAPE, Foam, Battery Tray

$8.99

$

Usually ships in 2-12 days

0

40

-----

WASHER, Shakeproof, Ext. M6 - 1/4

Note: (Purchase locally)

$

$

Not available

41

-----

WASHER, Lock, 1/4 - M6

Note: (Purchase locally)

$

$

Not available

42

NUT, 1/4-20

Note: (Purchase locally)

$

$

Not available

43

Briggs & Stratton 691656

SOLENOID/BRACKET

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 193345GS

ASSY,Tank, 7-Gallon, with Labels

$

$

Not available

45

Briggs & Stratton 90878GS

CAP, Fuel Tank

$

$

Not available

46

Briggs & Stratton 195340GS

MOUNT, Vibration, Inner

$8.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 195341GS

MOUNT, Vibration, Outer

$12.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 195342GS

SCREW, 5/16 - 18 x 5.25,Taptite

$4.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 198925GS

ASSY, Jack Coaxial, DC

$14.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 199463GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

60

Briggs & Stratton 200445GS

KIT, Overflow Fuel Hose w/ Clamp

$15.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 192809GS

HARNESS, AC

$55.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 196569GS

STRAP, Battery Hold Down

$32.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193463GS

BATTERY, 12V w/Hardware

$172.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 189302JGS

CABLE, Red, Solenoid to Starter

$22.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939SGS

CABLE, Blk, Battery to Engine

$15.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302MGS

CABLE, Red, Battery to Solenoid

$22.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 196997GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5936

MANUAL, Engine

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 28739AGS

TIEWRAP, Overflow Hose

Note: Not Illustrated

$1.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 200446GS

KIT, Decals

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199384GS

DECAL, Family, CA, EVP

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195247GS

DECAL,Warning

Note: Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 192808GS

DECAL, Instructions Fuel Level

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGE, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 691959

KEY, Ignition

Note: Not Illustrated

$7.99

$

In Stock, Qty 9

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0
