030207-01 - Briggs & Stratton 10,000 Watt Portable Generator Main Unit (317669) Parts Diagram

10,000 Watt Portable Generator

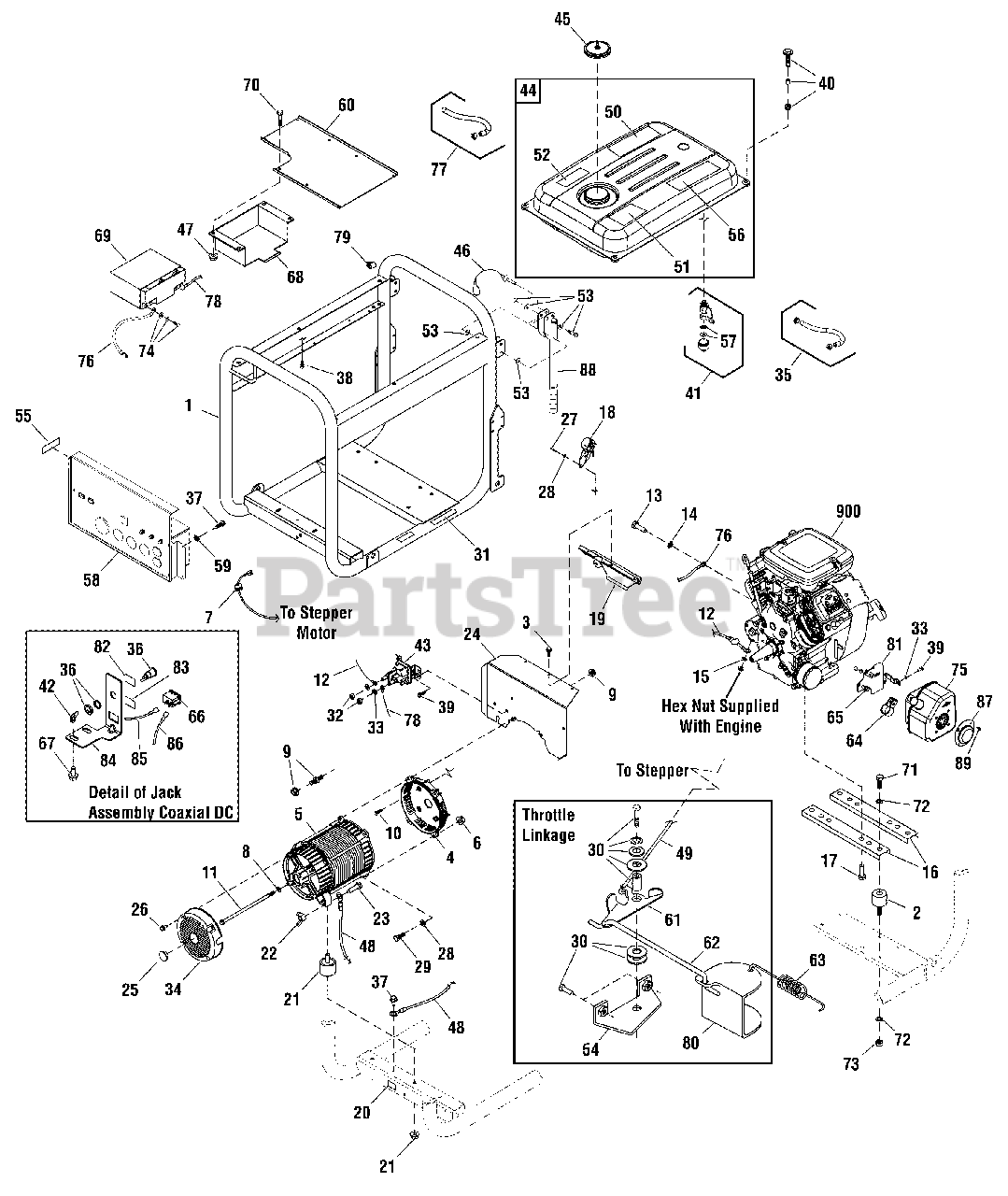

Main Unit (317669) Parts Diagram

  • Title

1

Briggs & Stratton 200968BNGS

KIT, Cradle

Note: (Includes Ref. Nos. 20 & 31)

$471.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 38353GS

MOUNT, Vibration

$39.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex, M8 - 1.25

$

$

Not available

7

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

KIT, Hardware, Heatshield

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

BOLT, Shoulder, 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365DGS

CAPSCREW, Hex Head, 5/16-24 x 10.28

$29.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302SGS

WIRE

$22.99

$

Usually ships in 2-12 days

0

13

-----

* CAPSCREW, Hex Head, M8 - 1.25 x 16

$

$

Not available

14

-----

* WASHER, Shakeproof, Ext. 5/16

$

$

Not available

15

-----

* WASHER, Shakeproof, Ext. M6

$

$

Not available

16

Briggs & Stratton 77304BNGS

SUPPORT, Engine

$

$

Currently unavailable

17

Briggs & Stratton 2830598SM

SCREW
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 195404GS

STEPPER MOTOR

$148.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 93074BRGS

SUPPORT, Heatshield

$45.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

KIT, Vibration Mount

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

-----

* CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

24

Briggs & Stratton 194951GS

HEAT SHEILD ASSEMBLY

$93.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

-----

* CAPSCREW, Hex Head, M8 - 1.25 x 20

$

$

Not available

28

-----

* WASHER, Lock, 5/16 M8

$

$

Not available

29

-----

* CAPSCREW, Hex Head, M8-1.25 x 25

$

$

Not available

30

Briggs & Stratton 194543GS

KIT, Hardware, Throttle Linkage

$25.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

32

-----

* NUT, 1/4-20

$

$

Not available

33

-----

* WASHER, Lock, 1/4

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic w/ Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 201348GS

JACK, Coaxial

$17.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

SCREW, Thread Forming, 12-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B4300GS

HHS, Trilobular, 1/4 - 20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 198221GS

KIT, Hardware, Fuel Tank

Note: (Includes Qty. 4)

$8.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 310574GS

VALVE-FUEL

$10.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 192351GS

LUG, 1/4

$2.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 691656

SOLENOID

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 202954GS

FUEL TANK ASSEMBLY

Note: (Includes Ref. No. 41)

$

$

Not available

45

Briggs & Stratton 314951GS

CAP, Tank Fuel

$

$

Not available

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

LOCKNUT, M6

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95920GS

LINKAGE, Stepper Motor

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction, Fuel

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Operating Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Hardware, Fold Down Handle

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 95349GS

PLATE, Adjust

$7.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

58

Briggs & Stratton 200326GS

CONTROL PANEL

$

$

Currently unavailable

59

-----

* WASHER, Ext #10, Shakeproof

$

$

Not available

60

Briggs & Stratton 193512GS

SUPPORT, Tray Battery

$98.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95348GS

BRACKET, Bell Crank

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95921GS

LINKAGE, Bell Crank

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96717GS

SPRING

$58.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 690898

CLAMP

$14.99

$

Usually ships in 2-12 days

0

65

-----

* CAPSCREW, Hex Head, M8-1.25 x 16

$

$

Not available

66

Briggs & Stratton 87799GS

SWITCH, Rocker

$7.49

$

In Stock, Qty 15

0

67

Briggs & Stratton 90388GS

SCREW, M6-1 x 12, Taptite

$2.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 192985GS

TRAY, Battery

$81.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 316345GS

BATTERY

$246.99

$

In Stock, only 1 left!

0

70

-----

* CAPSCREW, Hex Head, M6-1.0 x 12

$

$

Not available

71

-----

* CAPSCREW, Hex Head, 3/8-16 x 3/4

$

$

Not available

72

-----

* WASHER, Lock, 3/8

$

$

Not available

73

-----

* NUT, 3/8-16

$

$

Not available

74

Briggs & Stratton 315546GS

KIT, Hardware, Battery

$8.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 692099

MUFFLER

$184.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939TGS

WIRE

$16.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 315017GS

HOSE, Vapor

$28.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302RGS

WIRE

$26.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 315831GS

CLAMP

$3.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 200107GS

BRACKET

$31.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 691513

BRACKET

$55.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 198800GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 197159GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 200816GS

BRACKET

$10.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 312236GS

WIRE

$6.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 312239GS

WIRE

$6.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 794945

SPARK ARRESTER

$53.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton B193200GS

HANDLE

$39.99

$

In Stock, Qty 6

0

89

Briggs & Stratton 94896GS

SCREW

$

$

Currently unavailable

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 43438GS

PLUG

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 37806GS

PLUG
(Superseded to 100523GS)

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4767GS

COVER, Storage

Note: (Not Illustrated)

$108.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 65787GS

CABLE, Battery Charger

Note: (Not Illustrated)

$24.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 93568GS

PLUG

Note: (Not Illustrated)

$27.99

$

Usually ships in 2-12 days

0
