030210-1 - Briggs & Stratton 7,500 Watt Portable Generator Main Unit (196380) Parts Diagram

7,500 Watt Portable Generator

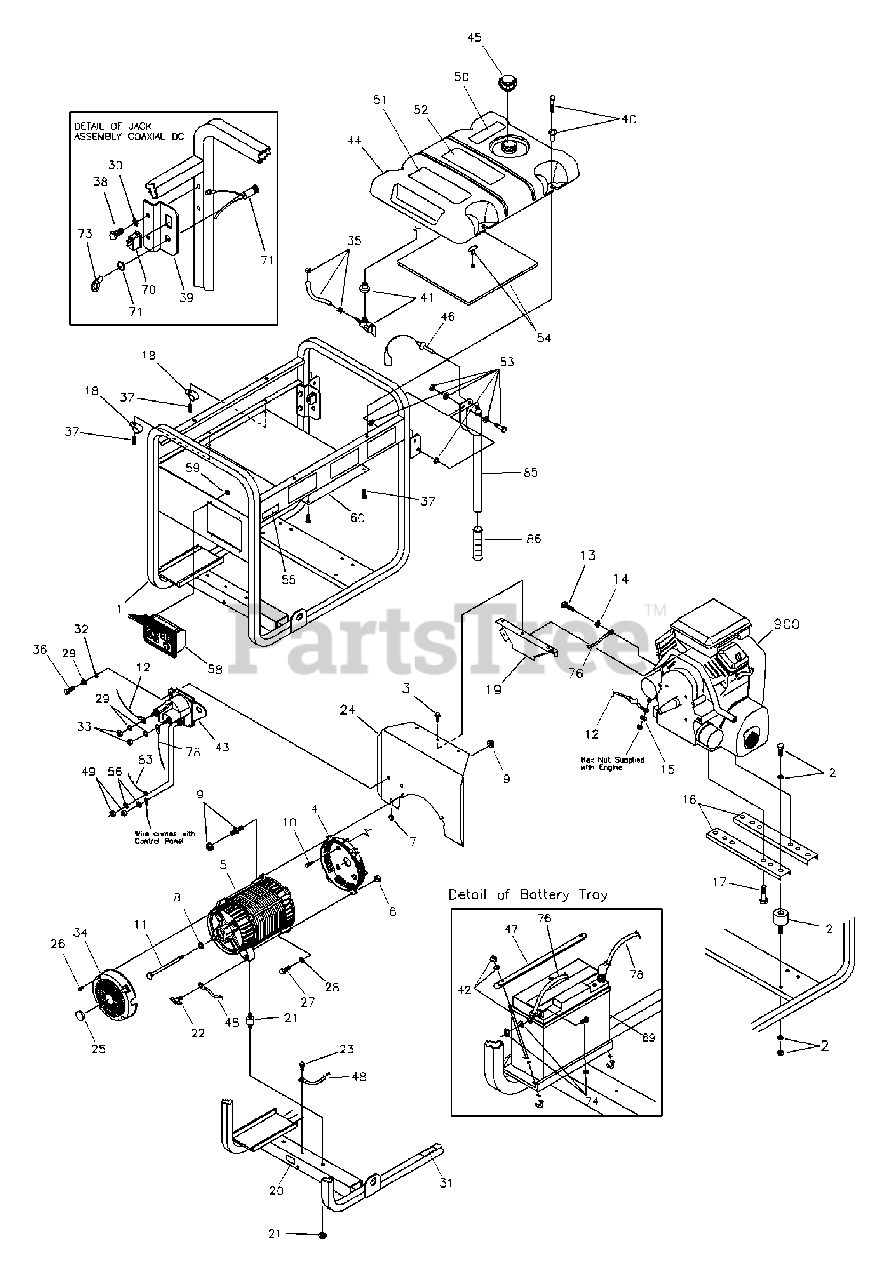

Main Unit (196380) Parts Diagram

  • Title

1

Briggs & Stratton M196373GS

CRADLE

$255.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194526GS

KIT, Engine Support Hardware

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

KIT, Alt to Heat Shield Hardware

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW, SBHC, 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365CGS

HHCS, 5/16 - 24 x 9.29

$26.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302BGS

ASSY, Wire, #16, Red

$17.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 - 1.25 x 16

Note: (Purchase locally)

$

$

Not available

14

WASHER, Shakeproof, Ext. 5/16

Note: (Purchase locally)

$

$

Not available

15

WASHER, Shakeproof, Ext. M6

Note: (Purchase locally)

$

$

Not available

16

Briggs & Stratton M77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75246GS

TAPTITE, 3/8 - 16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 55934TGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

SUPPORT, Heatshield

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

KIT, Vibration Mount

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton J194951GS

ASSY, Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

28

WASHER, Lock, M8 5/16

Note: (Purchase locally)

$

$

Not available

29

WASHER, Lock, 1/4

Note: (Purchase locally)

$

$

Not available

30

WASHER, Shakeproof, Ext. #10

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

WASHER, Flat, 1/4 - M6

Note: (Purchase locally)

$

$

Not available

33

NUT, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

HHCS, M6 - 1.0 x 20

Note: (Purchase locally)

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 195094GS

SCREW, 10-16 x .68 Self Drill

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 196492GS

ASSY, Switch Starter

$83.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

Note: (Includes Qty of 4)

$10.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 193986GS

KIT, Hardware J-Bolt

$16.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton B4769GS

CONTACTOR, Starter

$29.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 194217GS

ASSY, Tank Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton M96925GS

BRACKET, Battery Hold Down

$

$

Not available

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

NUT, 8 - 32

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Folddown Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 196725GS

KIT, Insulation w/ clip

$14.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

56

WASHER, #8 Lock

Note: (Purchase locally)

$

$

Not available

58

Briggs & Stratton 195661AGS

ASSY, Control Panel

Note: (see "Control Panel")

$195.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 196527GS

SHEILD, Heat

$94.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

Briggs & Stratton 192855GS

SWITCH, Rocker On/Off

$29.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 196659GS

ASSY, Jack, Coax, DC

$32.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

LUG, 5/16, #22/18

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

ASSY, Wire, #55 Blk

$

$

Not available

78

Briggs & Stratton 189302KGS

ASSY, Wire, #13 Red

$22.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 192403YGS

ASSY, Wire, 18 AWG, Red, 3.5"

$1.49

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY, Fold Down Handle

Note: (Includes Item 86)

$39.99

$

In Stock, Qty 6

0

86

Briggs & Stratton 198669GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 196377GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5375

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 197005GS

KIT, Decal Service

Note: Not Illustrated

$130.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690661

SCREW, Tapping Hex

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 392390

ARRESTER, Spark
(Superseded to 794945)

Note: Not Illustrated

$53.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692099

ASSY, Muffler

Note: Not Illustrated

$184.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 691513

BRACKET, Muffler

Note: Not Illustrated

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692056

SCREW

Note: Not Illustrated

$5.99

$

In Stock, Qty 6

0

Briggs & Stratton 690898

CLAMP, Muffler

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692539

SCREW
(Superseded to 841233)

Note: Not Illustrated

$3.49

$

In Stock, Qty 6

0

Briggs & Stratton 100031

STABLIZIER, Fuel
(Superseded to 100126)

Note: Optional Accessories Not Illustrated

$3.49

$

In Stock, Qty 20+

0
