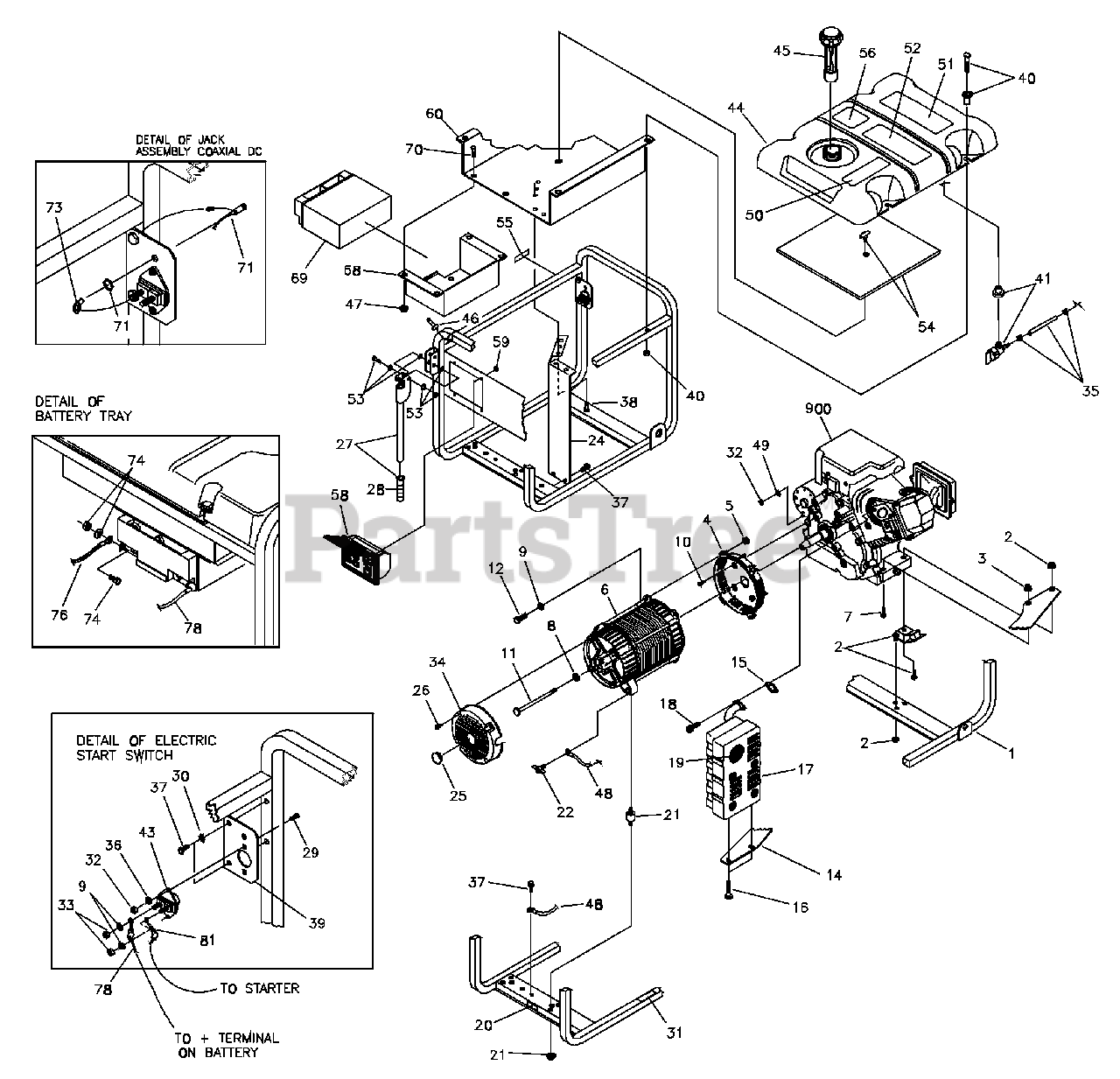

030211-1 - Briggs & Stratton 6,200 Watt Portable Generator Main Unit (196820) Parts Diagram

6,200 Watt Portable Generator

Main Unit (196820) Parts Diagram

  • Title

1

Briggs & Stratton M197464GS

CRADLE (Includes Items 20, 31 & 55)
(Superseded to 197464BNGS)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount

$13.99

$

In Stock, Qty 7

0

3

-----

NUT, M8 Flange Serrated

Note: Purchase locally

$

$

Not available

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

-----

NUT, Hex, M8-1.25

Note: Purchase locally

$

$

Not available

6

NSP

ASSY, Alternator (see page 4)

$

$

Not available

7

-----

TPHMS, M8 - 1.25 x 35

Note: Purchase locally

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

WASHER, Lock M8

Note: Purchase locally

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHCS, 3/8-16 x 7/8

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

-----

HHCS, M8 1.25 x 25

Note: Purchase locally

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

16

-----

HHCS, M6-1.0 x 12

Note: Purchase locally

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

SHCS, 5/16 - 18 x 7/8"

Note: Purchase locally

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration, Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B193200GS

ASSY, Handle/Grip

$39.99

$

In Stock, Qty 6

0

28

Briggs & Stratton 198669GS

GRIP

$8.99

$

Usually ships in 2-12 days

0

29

-----

HHCS, 1/4-20 x 3/4

Note: Purchase locally

$

$

Not available

30

-----

WASHER, Shakeproof, Ext #10

Note: Purchase locally

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

-----

NUT, 1/4 – 20

Note: Purchase locally

$

$

Not available

33

-----

NUT, 5/16-24

Note: Purchase locally

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

-----

WASHER, Lock, 1/4

Note: Purchase locally

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW, 10-24 x 1/2 Crimptite

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 188987GS

PLATE, Mounting Switch

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 195477GS

KIT, Hardware Tank Fuel (Includes Qty 4)

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve, Tank

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 194217GS

ASSY., Tank, Fuel (Includes Items 41, 50, 51, 52 & 56)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton B4135GS

PIN

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

-----

WASHER, M6 Shakeproof

Note: Purchase locally

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Handle Fold-down Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation with Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-off

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL, CO Warning

$13.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 191757GS

ASSY, Control Panel

$

$

Not available

59

-----

NUT, Palnut, 3/16"

Note: Purchase locally

$

$

Not available

60

Briggs & Stratton 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

-----

HHCS, M6 - 1.0 x 12

Note: Purchase locally

$

$

Not available

71

Briggs & Stratton 192531GS

ASM, Jack, DC

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

LUG, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

WIRE ASM, #55

$

$

Not available

78

Briggs & Stratton 189302CGS

WIRE ASM, #13

$

$

Not available

81

Briggs & Stratton 189302GGS

WIRE ASM, #16

$18.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS3430

MANUAL, Engine, B&S

Note: Parts Not Illustrated

$

$

Not available

Briggs & Stratton 195529GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 202180GS

DECAL, Family, CA EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195578GS

KIT, Decals Service

Note: Parts Not Illustrated

$89.99

$

Usually ships in 2-12 days

0
