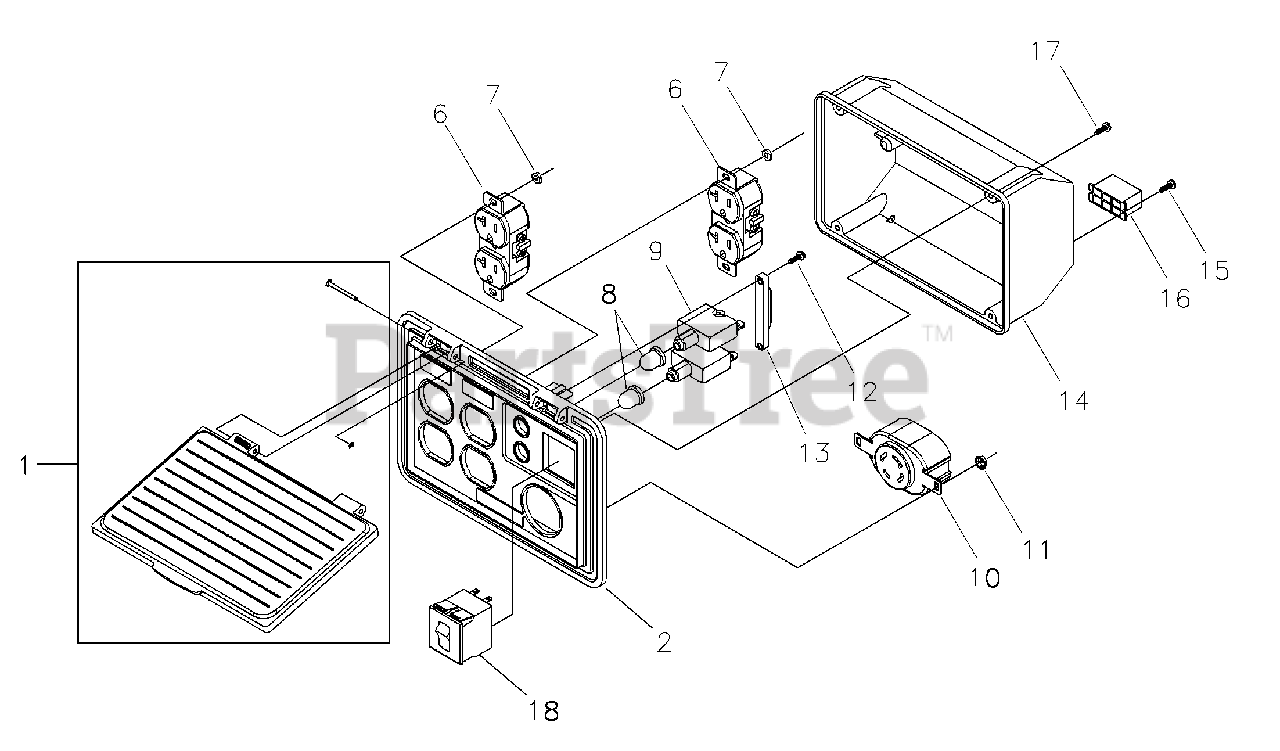

030220-0 - PowerBoss 7,000 Watt Portable Generator Control Panel (200065) Parts Diagram

7,000 Watt Portable Generator

Control Panel (200065) Parts Diagram

  • Title

1

Briggs & Stratton 195112GS

ASSY, Control Lid Panel

$

$

Not available

2

Briggs & Stratton 192273CGS

CONTROL PANEL, Compact

$

$

Not available

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20Amp, Duplex

$24.99

$

In Stock, only 4 left!

0

7

NUT, Palnut, Pushnut, 5/32

Note: Purchase locally

$

$

Not available

8

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 75207PGS

CIRCUIT BREAKER
(Superseded to 706175)

$31.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 43437GS

OUTLET, 120/240 Locking, 30A

$17.99

$

Usually ships in 2-12 days

0

11

NUT, Palnut, Pushnut, 3/16

Note: Purchase locally

$

$

Not available

12

PPHMS, 3.5 x 18

Note: Purchase locally

$

$

Not available

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 188890GS

BOX, Rear Cover

$15.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 82308GS

SCREW, Tapping, STC 3 x 18

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192241GS

SCREW, Tapping, 3.5 x 14

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 191479GGS

BREAKER, 30A
(Superseded to 192785GS)

$106.99

$

In Stock, only 2 left!

0
