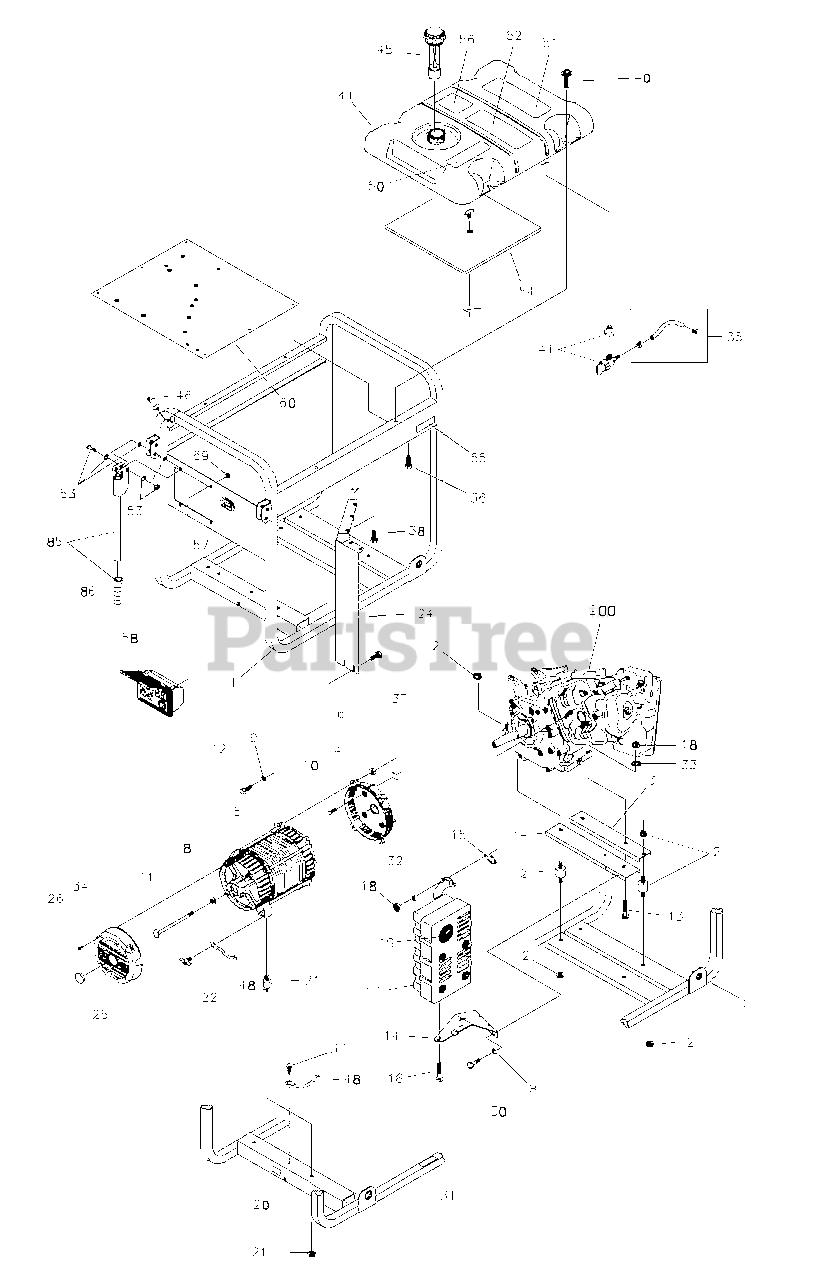

030220-0 - PowerBoss 7,000 Watt Portable Generator Main Unit (200060) Parts Diagram

7,000 Watt Portable Generator

Main Unit (200060) Parts Diagram

  • Title

1

Briggs & Stratton B200077GS

CRADLE (Includes #’s 20, 31 & 55)

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 196400GS

KIT, Vibration Mount

$12.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B92531GS

BRACKET, Support Engine

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY., Alt (see page 4)

$

$

Not available

6

NUT, Hex M8 1.25

Note: Purchase locally

$

$

Not available

7

Briggs & Stratton B92731GS

BRACKET, Support Eng/Muffler

$23.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Lock 5/16 M8

Note: Purchase locally

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHC, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 73068GS

HHCS, 5/16 - 24 x 8-7/8

$29.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: Purchase locally

$

$

Not available

13

HHCS, M8 - 1.25 x 40

Note: Purchase locally

$

$

Not available

14

Briggs & Stratton 193048GS

BRACKET, Muffler

$28.99

$

Usually ships in 2-12 days

0

15

NSP

GASKET, Exhaust

$

$

Not available

16

HHCS, M6 - 1.0 x 12

Note: Purchase locally

$

$

Not available

17

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 195625GS

KIT, Vibration Mount

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 194390GS

HEATSHIELD

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

30

HHCS, 5/16 - 18 x 3/4

Note: Purchase locally

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Warning Exhaust

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 31579GS

SPACER

$19.99

$

Usually ships in 2-12 days

0

33

WASHER, .34 x 1 x 10GA

Note: Purchase locally

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6 - 1.0 w/Washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194217GS

ASSY., Tank Fuel (Includes Items 41, 50, 51, 52 & 56)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Folddown Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/ Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL, Warning CO

$13.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 198245GS

METER, Hour
(Superseded to 202602GS)

$97.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 200062GS

ASSY. Control Panel

$

$

Not available

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 204594GS

HEATSHIELD

$98.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY,. Fold Down Handle

$39.99

$

In Stock, Qty 6

0

86

Briggs & Stratton 198669GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 199910GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202180GS

DECAL, Family CA, EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194274GS

HARNESS, Wire, Power Gen

Note: Parts Not Illustrated

$86.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199119GS

HARNESS, Monitor Load

Note: Parts Not Illustrated

$40.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton 200286GS

KIT, Decal Service

Note: Parts Not Illustrated

$18.99

$

Usually ships in 2-12 days

0
