030227-0 - PowerBoss 6,500 Watt Portable Generator Alternator Parts Diagram

6,500 Watt Portable Generator

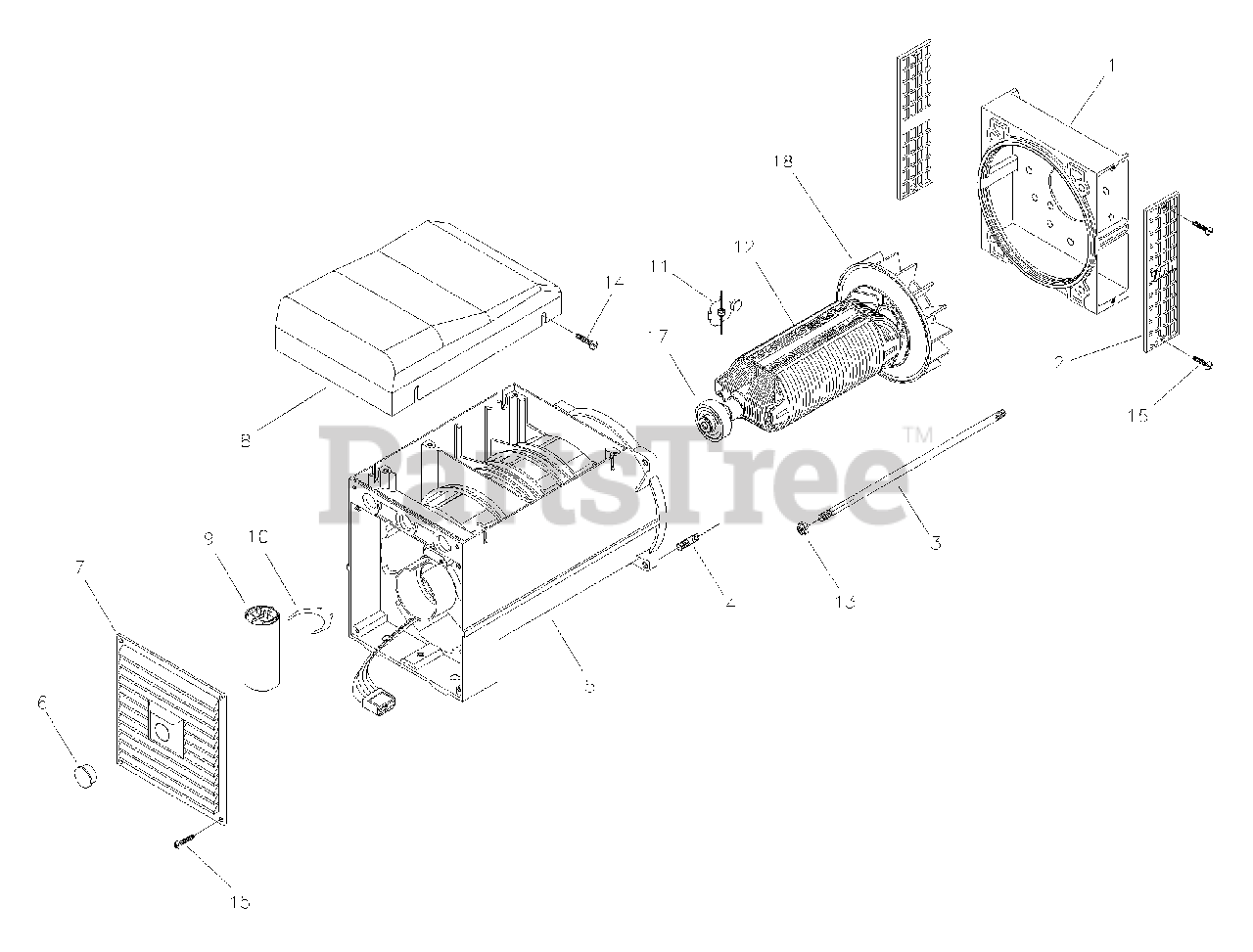

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 198360GS

SHIELD, Front

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B4907GS

GRID, Front

$18.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 198361GS

BOLT, Shaft Stay

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B4909GS

BOLT, Stay M8 x 30

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 197707GS

HOUSING

$651.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187049GS

PLUG, Domed

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4912GS

GRID, End

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 198362GS

COVER, Top Black

$76.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197708GS

CAPACITOR

$

$

Not available

10

Briggs & Stratton 197709GS

SPRING, Capacitor Block

$6.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4916GS

DIODE + Varistor + EMC Capacitor

$

$

Not available

12

Briggs & Stratton 198363GS

ASSY, Rotor

$446.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 49820GS

NUT, Lock, M8 - 1.25

$3.99

$

Usually ships in 2-12 days

0

14

SCREW, M6 - 1.0 x 10mm

Note: (Purchase locally)

$

$

Not available

15

SCREW, M5 - 0.8 x 10mm

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 197705GS

BEARING

$37.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197706GS

FAN

$35.99

$

Usually ships in 2-12 days

0
