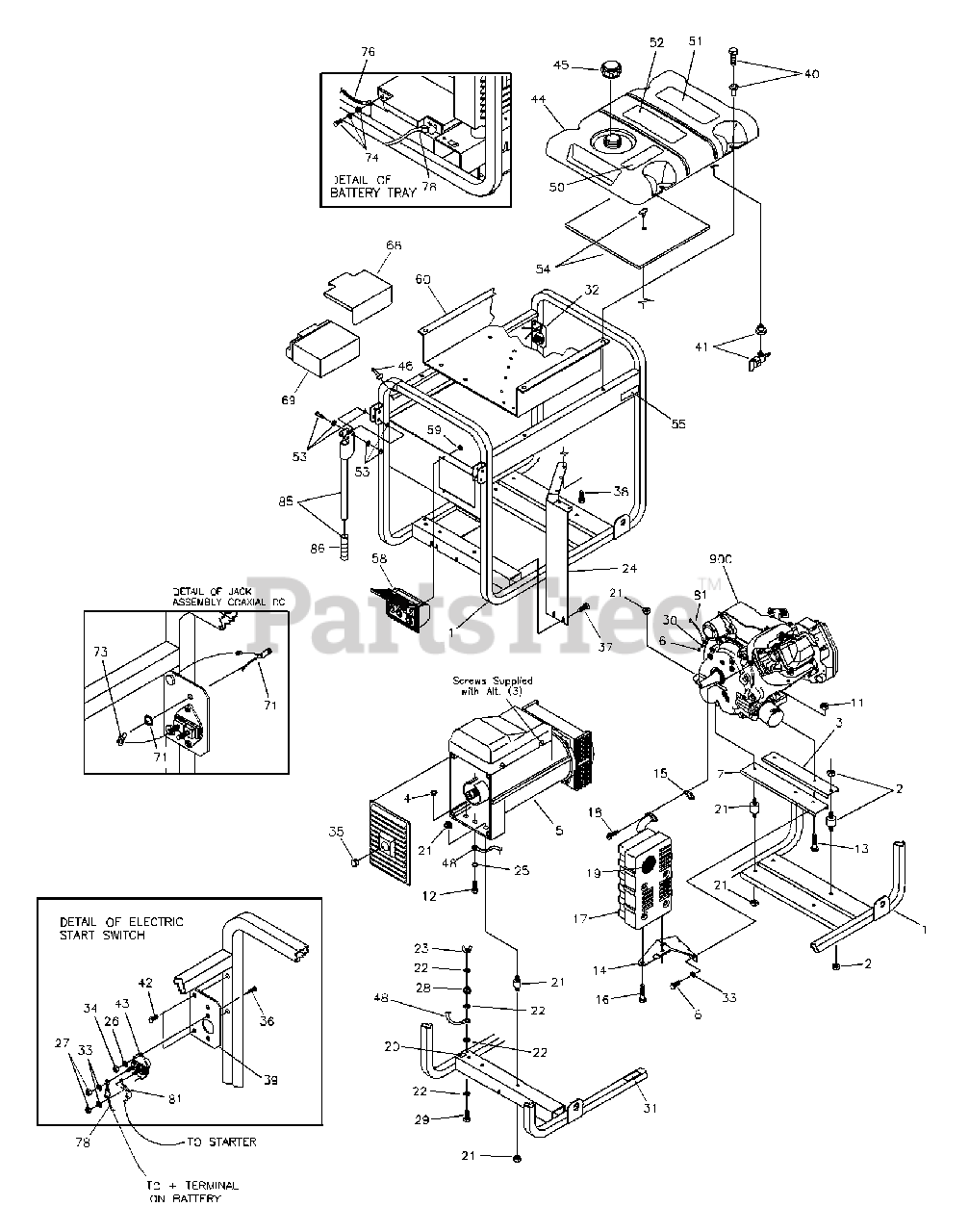

  • Title

1

Briggs & Stratton B196096GS

KIT, Cradle

$

$

Currently unavailable

2

Briggs & Stratton 194219GS

KIT, Vibration Mount

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B92531GS

BRACKET, Support Engine

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196869GS

PLUG, Hole

$4.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

-----

NUT, M6 - 1.0

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton B92731GS

BRACKET, Support Eng/Muffler

$23.99

$

Usually ships in 2-12 days

0

8

-----

HHCS, 5/16 - 18 x 3/4

Note: (Purchase locally)

$

$

Not available

9

Briggs & Stratton B4260GS

DISK, Rtr/Engine Air

$48.99

$

Usually ships in 2-12 days

0

10

-----

HHCS, 5/16-24 x 3/4"

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 189160GS

NUT, 5/16 - 18, Flange Serrated

$2.99

$

Usually ships in 2-12 days

0

12

-----

HHCS, M8 - 1.25 x 16

Note: (Purchase locally)

$

$

Not available

13

-----

HHCS, 5/16-18 x 1-3/4

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239GS

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

16

-----

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton A7433GS

MUFFLER

$

$

Not available

18

-----

SHCS, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194218GS

KIT, Vibration Mount

$16.99

$

Usually ships in 2-12 days

0

22

-----

WASHER, Shakeproof, Ext

Note: (Purchase locally)

$

$

Not available

23

Briggs & Stratton 87680GS

NUT, M6 Wing

$7.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

ASSY, Heat Shield Muffler

$86.99

$

Usually ships in 2-12 days

0

25

-----

WASHER, Shakeproof, Ext 5/16

Note: (Purchase locally)

$

$

Not available

26

-----

WASHER, 1/4 Lock

Note: (Purchase locally)

$

$

Not available

27

-----

NUT, 5/16 - 24

Note: (Purchase locally)

$

$

Not available

28

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

29

-----

HHCS, M6 - 1.0 x 25

Note: (Purchase locally)

$

$

Not available

30

-----

WASHER, Shakeproof, Ext. #10

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

33

-----

WASHER, M8 Lock

Note: (Purchase locally)

$

$

Not available

34

-----

NUT, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

35

Briggs & Stratton 187049GS

PLUG, Dome

$8.49

$

Usually ships in 2-12 days

0

36

-----

HHCS, 1/4 - 20 X 3/4

Note: (Purchase locally)

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 188987GS

BRACKET, Starter

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

Note: (Includes Qty of 4)

$10.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 195094GS

SCREW, Self Drill 10-16 x .68

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 197443GS

ASSY,Tank Fuel

Note: (Includes Items 41,50, 51 & 52)

$204.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 200095GS

CAP, Tank Fuel
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 19553621GS

WIRE, Ground

$7.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Folddown Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194498GS

KIT, Insulation w/clip

$

$

Currently unavailable

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 191757GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 194389GS

SHEILD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 196543GS

SHEILD, Heat, Battery

$86.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193463GS

BATTERY

$172.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 192531GS

ASSY, Jack, Coax, DC

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

LUG, 5/16, #22/18

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939JGS

ASSY, Wire, #55 Blk

$12.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302NGS

ASSY, Wire, #13 Red

$19.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 189302BGS

ASSY, Wire, #16, Red

$17.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY, Fold Down Handle

Note: (Includes Item 86)

$39.99

$

In Stock, Qty 6

0

86

Briggs & Stratton 198669GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 196415GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A8927GS

MANUAL, Engine

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 196569GS

STRAP, Battery Hold Down

Note: Not Illustrated

$32.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196127GS

DECAL, Control Panel

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189198GS

DECAL, Electric Start

Note: Not Illustrated

$8.99

$

In Stock, only 1 left!

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0
