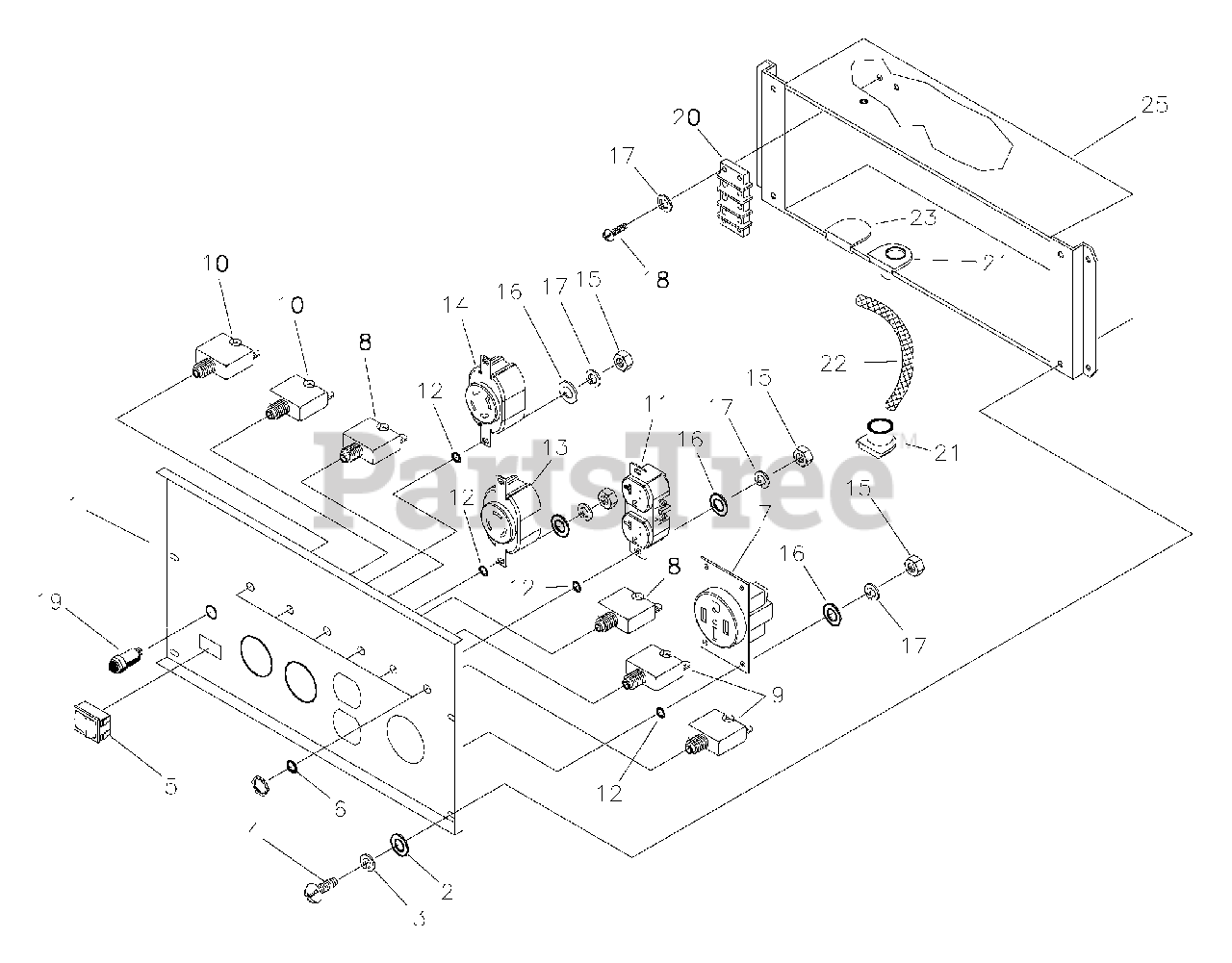

030228-0 - PowerBoss 8,000 Watt Portable Generator Control Panel (196893) Parts Diagram

8,000 Watt Portable Generator

Control Panel (196893) Parts Diagram

  • Title

1

Briggs & Stratton BB4461AGS

PANEL, Control

$

$

Currently unavailable

2

-----

WASHER, #10 M5 Flat

Note: (Purchase locally)

$

$

Not available

3

-----

WASHER, Lock, M5

Note: (Purchase locally)

$

$

Not available

4

-----

PPHMS, M5-0.8 x 12 mm

Note: (Purchase locally)

$

$

Not available

5

Briggs & Stratton 78653GS

SWITCH

$4.99

$

Usually ships in 2-12 days

0

6

-----

WASHER, Lock, 7/16" Int.

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton B4262GS

RECEPTACLE

$142.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 75207NGS

BREAKER, Circuit, 35A

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 68759GS

OUTLET, 20A, 120V

$24.99

$

In Stock, only 4 left!

0

12

-----

WASHER, #8 Shakeproof

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 68868GS

OUTLET, 30A, 120V Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437GS

OUTLET, 30A, 120V/240V Locking

$17.99

$

Usually ships in 2-12 days

0

15

-----

NUT, M4 - 0.7

Note: (Purchase locally)

$

$

Not available

16

-----

WASHER, M4 Flat

Note: (Purchase locally)

$

$

Not available

17

-----

WASHER, Lock, #8 M4

Note: (Purchase locally)

$

$

Not available

18

-----

PPHMS, M4 - 0.7 x 20 mm

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton B4694GS

JACK, Coaxial, DC
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 92953GS

BLOCK,Terminal, 50A

$17.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 188632GS

GROMMET, Rubber

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 77043BGS

CONDUIT, Flex, .50 ID

$1.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84135GS

ASSY,Wire Harness

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B189104GS

BOX, Control Panel

$94.99

$

Usually ships in 2-12 days

0
