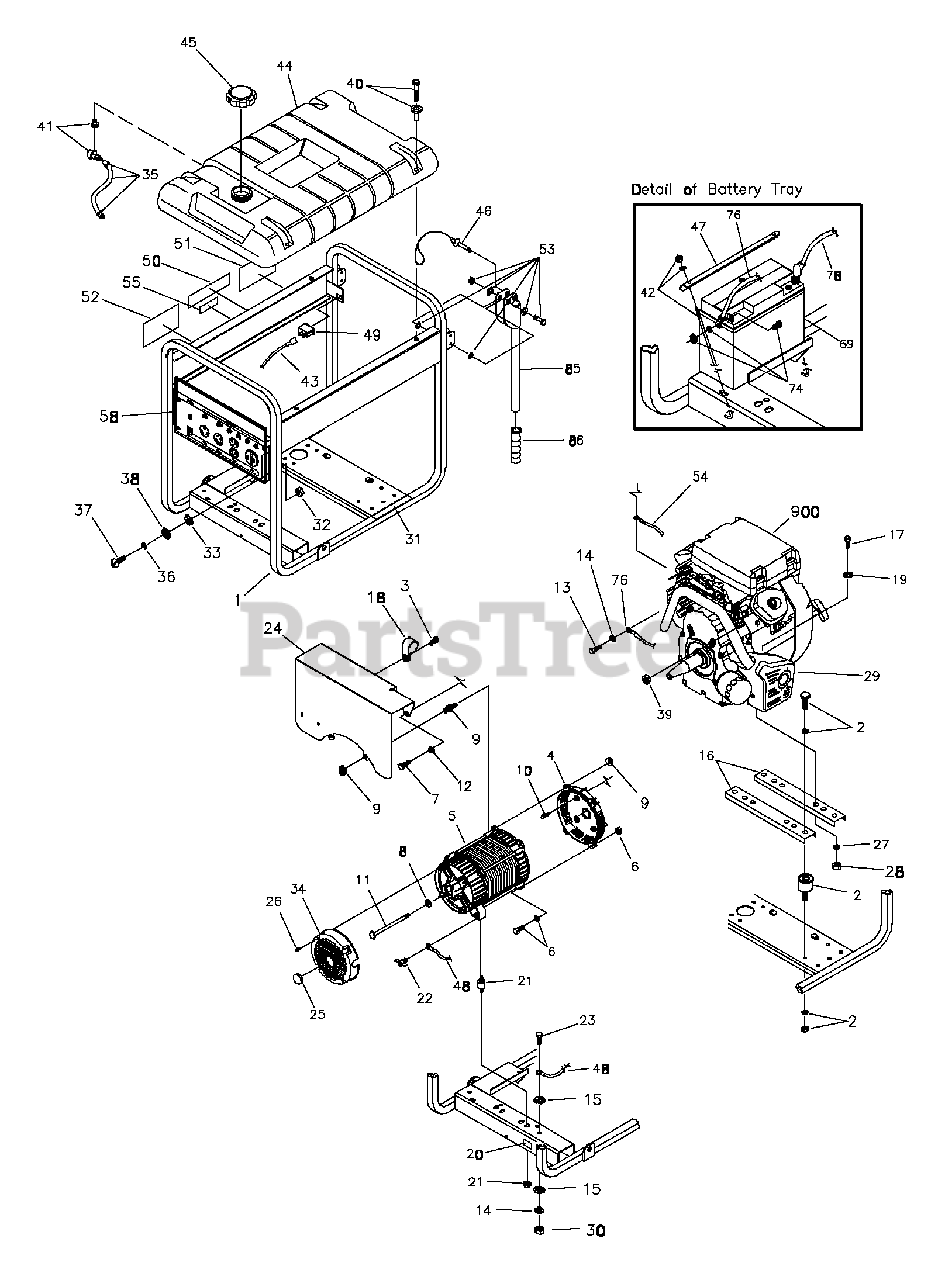

030228-0 - PowerBoss 8,000 Watt Portable Generator Main Unit (196676) Parts Diagram

8,000 Watt Portable Generator

Main Unit (196676) Parts Diagram

  • Title

1

Briggs & Stratton B196668GS

CRADLE

$

$

Not available

2

Briggs & Stratton 194209GS

KIT, Engine Support Hardware

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT,Adapter Mounting Hardware

$22.99

$

Usually ships in 2-12 days

0

7

-----

HHCS, M8 - 1.25 x 12

Note: (Purchase Locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

KIT,Alt to Heat Shield Hardware

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274DGS

SBHC, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 25254GS

HHCS, 5/16 - 24 x 9-7/8

$12.99

$

Usually ships in 2-12 days

0

12

-----

WASHER, M8 - 5/16, Lock

Note: (Purchase Locally)

$

$

Not available

13

-----

HHCS, M6 - 1.0 x 16

Note: (Purchase Locally)

$

$

Not available

14

-----

WASHER, 1/4 Lock

Note: (Purchase Locally)

$

$

Not available

15

-----

WASHER, Shakeproof, Ext. M6

Note: (Purchase Locally)

$

$

Not available

16

Briggs & Stratton B77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

17

-----

HHCS, 3/8 - 16 x 1-3/4

Note: (Purchase Locally)

$

$

Not available

18

Briggs & Stratton 55934TGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

19

-----

WASHER, Flat, 3/8

Note: (Purchase Locally)

$

$

Not available

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 196400GS

KIT,Vibration Mount

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

-----

HHCS, 1/4 - 20 x 3/4

Note: (Purchase Locally)

$

$

Not available

24

Briggs & Stratton 196672GS

ASSY, Heat Shield

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

-----

WASHER, 3/8, Lock

Note: (Purchase Locally)

$

$

Not available

28

-----

NUT, 3/8 - 16

Note: (Purchase Locally)

$

$

Not available

29

Briggs & Stratton 186989GS

KIT, Muffler

$533.99

$

Usually ships in 2-12 days

0

30

-----

NUT, 1/4 - 20

Note: (Purchase Locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 52856GS

NUT, M5 - 0.8 Lock

$3.49

$

Usually ships in 2-12 days

0

33

-----

WASHER, Shakeproof, Ext. #10

Note: (Purchase Locally)

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic

Note: (Includes Item 25)

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194265GS

KIT, Hose, Fuel
(Superseded to 791745)

$10.99

$

In Stock, Qty 6

0

36

-----

WASHER, #10 Lock

Note: (Purchase Locally)

$

$

Not available

37

-----

PPHMS, M5 - 0.8 x 12

Note: (Purchase Locally)

$

$

Not available

38

-----

WASHER, Flat #10

Note: (Purchase Locally)

$

$

Not available

39

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

40

Briggs & Stratton 195076GS

KIT, Fuel Tank Hardware

$5.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 193986GS

KIT, Hardware J-Bolt

$16.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 197273GS

HARNESS, Switch, Start/Run

$36.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B1997GS

ASSY,Tank Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4325GS

CAP,Tank Fuel

$93.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B96925GS

BRACKET, Battery Hold Down

$10.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 186790EGS

WIRE, Ground

$15.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 197509GS

ASSY, Switch Starter
(Superseded to 87799GS)

$7.49

$

In Stock, Qty 15

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 197445GS

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 196698GS

DECAL, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Folddown Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 197274GS

HARNESS, Battery Charge

$50.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 191435GS

DECAL, Fuel Shutoff

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 196892GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939PGS

ASSY,Wire, #55 Blk

$15.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302PGS

ASSY,Wire, #13 Red

$22.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY, Fold Down Handle

Note: (Includes Item 86)

$39.99

$

In Stock, Qty 6

0

86

Briggs & Stratton 189718GS

GRIP, Handle
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 196675GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS6497

MANUAL, Engine

Note: Not Illustrated

$0.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 198121GS

KIT, Decal Service

Note: Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690661

SCREW,Tapping Hex

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 392390

ARRESTER, Spark
(Superseded to 794945)

Note: Not Illustrated

$53.99

$

Usually ships in 2-12 days

0
