030237-0 - Troy-Bilt 7,800 Watt Portable Generator Main Unit (195595) Parts Diagram

7,800 Watt Portable Generator

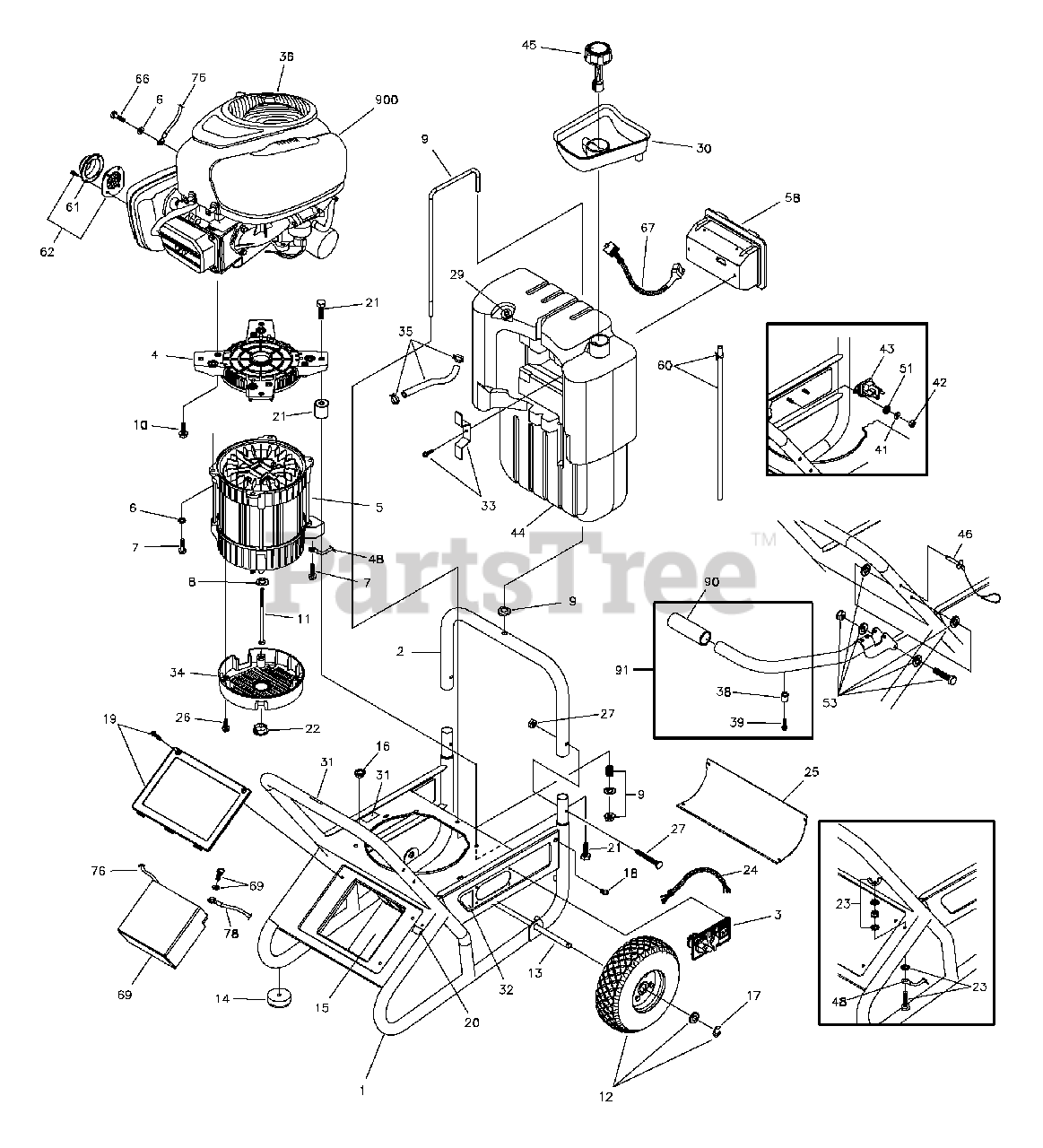

Main Unit (195595) Parts Diagram

  • Title

1

Briggs & Stratton P191821GS

CRADLE

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P193086GS

CRADLE,Top

$51.99

$

Usually ships in 2-12 days

0

3

NSP

ASSY, DC Control Panel

Note: (see "DC Control Panel")

$

$

Not available

4

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

WASHER, Lock, 5/16 - M8

Note: (Purchase locally)

$

$

Not available

7

HHCS, 5/16-18 x 1

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194726GS

KIT, Mounting Rod with Hardware

$46.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75246GS

TAPTITE, 3/8 - 16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365HGS

HHCS, 5/16-24 x 9.84

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194509GS

KIT,Wheel

$52.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 191267GGS

AXLE

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192553GS

KIT,Vibration Mount Hardware (2 sets)

$16.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 193320GS

STRIP, Foam 1/4 x 74 x 230

$12.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 186173GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 191265GS

E-RING, 5/8"
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 192940GS

CLIP, Retainer, Fuel Hose

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 194722GS

COVER, Billboard with Hardware

$15.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194727GS

KIT,Vibration Mount

$32.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 191190GS

CAP, Bolt, Rotor

$3.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 194533GS

KIT, Grounding Hardware

$

$

Not available

24

Briggs & Stratton 195558GS

HARNESS, DC

$56.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 193344GS

KIT, PLT, Skid, SRV

$39.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 194065GS

KIT, Handle Hardware

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 196063GS

ASSY,Tube Lift

$

$

Not available

30

Briggs & Stratton 192921GS

SHIELD, Fuel Fill

$24.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 193504GS

DECAL, Battery Instuctions

$12.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194721GS

KIT, Retaining Brckt with Hardware

$21.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 191029GS

COVER, RBC, Plastic

$23.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194265GS

KIT, Fuel Hose w/ Clamps
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 192251GS

GUARD, Recoil

$19.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 186569GS

BUMPER, Recess

$4.99

$

In Stock, only 1 left!

0

39

PPHMS, #10 x 1/2

Note: (Purchase locally)

$

$

Not available

41

WASHER, Lock, 1/4 - M6

Note: (Purchase locally)

$

$

Not available

42

NUT, 1/4-20

Note: (Purchase locally)

$

$

Not available

43

Briggs & Stratton 691656

SOLENOID/BRACKET

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 193345GS

ASSY,Tank, Fuel

$

$

Not available

45

Briggs & Stratton 191826GS

CAP, Fuel Gauge
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 192810GS

HARNESS, Ground

$40.99

$

Usually ships in 2-12 days

0

51

WASHER, Flat 1/4

Note: (Purchase locally)

$

$

Not available

53

Briggs & Stratton 194724GS

KIT, Folddown Handle Hardware

$6.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 192277GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

60

Briggs & Stratton 194730GS

KIT, Overflow Fuel Hose w/ Clamp

$23.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 396903

DEFLECTOR, Muffler

$14.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 392390

ARRESTOR, Spark with Screws
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

66

HHCS, 5/16-18 x 3/4

Note: (Purchase locally)

$

$

Not available

67

Briggs & Stratton 192809GS

HARNESS,AC

$55.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193463GS

BATTERY, 12V w/Hardware

$172.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939LGS

CABLE, Blk, Battery to Engine

$20.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302EGS

CABLE, Red, Battery to Solenoid

$18.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 192477GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton P193316GS

ASSY, Handle

Note: (Includes Item 90)

$

$

Not available

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 191824GS

TRAY, Oil Drain

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197325GS

MANUAL, Owners

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5936

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Currently unavailable

Briggs & Stratton BB3061GS

OIL, BOTTLE

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 188971GS

CORD, Extension
(Superseded to 191895DGS)

Note: Parts Not Illustrated

$231.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189302FGS

CABLE, Red, Solenoid to Starter

Note: Parts Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A3746GS

ASSY, Holder Fuse

Note: Parts Not Illustrated

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193347GS

KIT, Battery Term, Hardware

Note: Parts Not Illustrated

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197444GS

KIT, Decals

Note: Parts Not Illustrated

$57.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195247GS

DECAL,Warning

Note: Parts Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 192808GS

DECAL, Instructions Fuel Level

Note: Parts Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGE, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0
