030239-0 - Briggs & Stratton 2,000 Watt Portable Generator Main Unit (Part 1) Parts Diagram

2,000 Watt Portable Generator

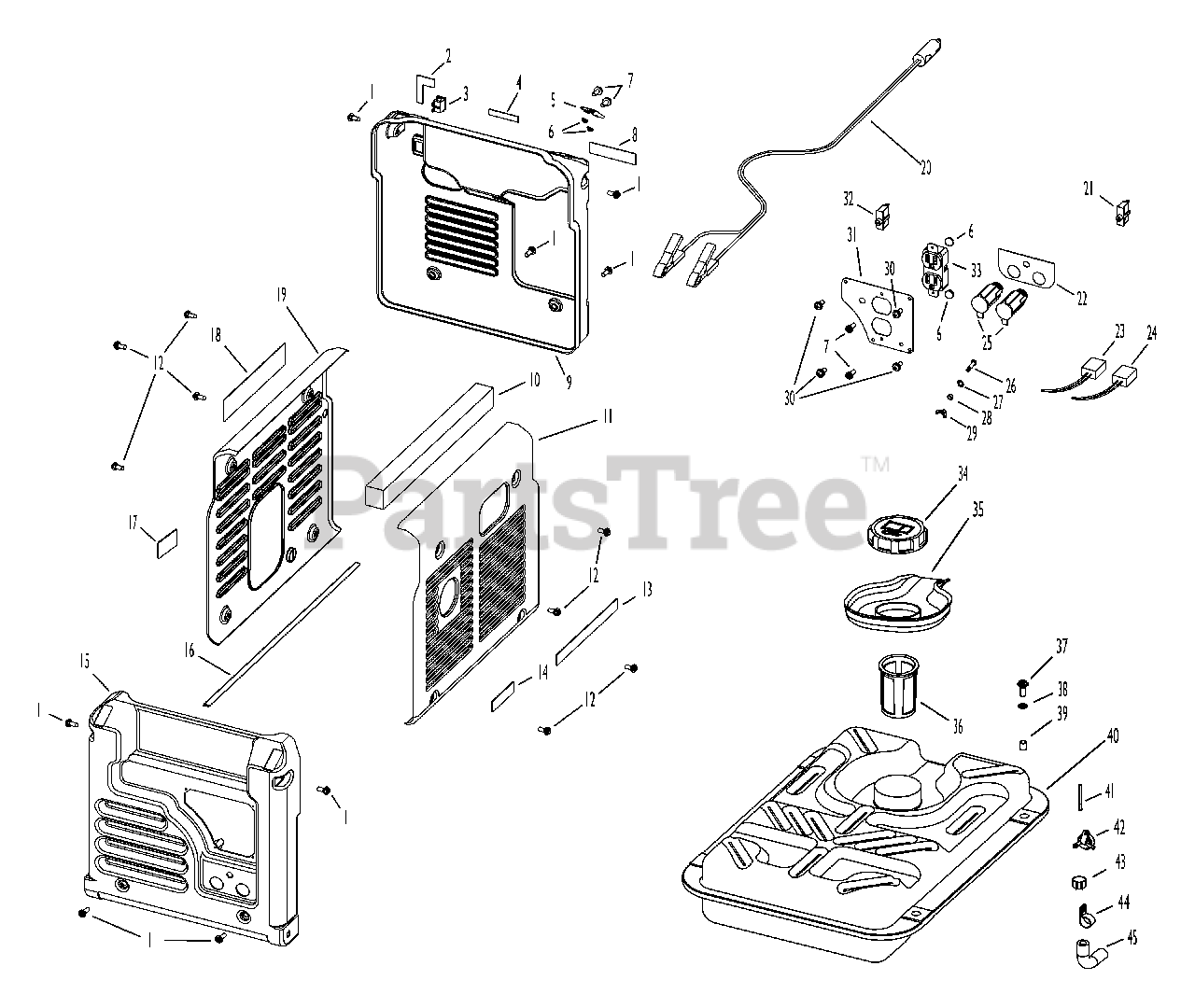

Main Unit (Part 1) Parts Diagram

  • Title

1

Briggs & Stratton 187757GS

BOLT, CVR, MFFLR

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 197871GS

DECAL, ON-OFF

$7.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187450GS

SWITCH, ENG, ON/OFF

$35.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187766GS

DECAL, CHOKE

$7.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 197843GS

SPPRT, RECOIL

$

$

Currently unavailable

6

Briggs & Stratton 187761GS

NUT, M4, FLNG

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 187760GS

SCREW, M4X12

$3.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 191545GS

DECAL, FUEL SHUTOFF, 4-L, CCW

$9.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197829GS

PNL, END, RECOIL

$91.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197882GS

FILLER, FOAM

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 197831GS

PNL, SIDE, MFFLR

$106.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 197860GS

BOLT, M6X16

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 197872GS

DECAL, SPECS

$

$

Currently unavailable

14

Briggs & Stratton 191436GS

DECAL, CAUTION, HOT MFFLR, 4 LANG

$8.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 197828GS

PNL, END, CNTRL

$86.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 197881GS

U-PACKING

$14.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 187763GS

DECAL, CAUTION, OIL

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197870GS

DECAL, UNIT

$26.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 197830GS

PNL, SIDE, OIL

$100.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 187876GS

CABLE, BTTRY CHARGE,ACC PLUG

$

$

Not available

21

Briggs & Stratton 187460GS

BRKR, CRCT, 10A, 125V

$30.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 197873GS

DECAL, DC OUT

$12.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 197875GS

CNNCTR

$8.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 197876GS

CNNCTR

$8.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 187873GS

OUTLET, 12V DC,ACCSSRY

$36.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 187415GS

PHMS, M5-0.8 X 20

$

$

Not available

27

Briggs & Stratton 197874GS

WSHR, LCK, INTRNL

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 187423GS

NUT, M5 X 0.8

$

$

Not available

29

Briggs & Stratton 187424GS

NUT,WING, M5 X 0.8

$

$

Not available

30

Briggs & Stratton 197863GS

SCREW, M4X12, SLFTAP

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 197854GS

PNL, CNTRL

$28.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 197855GS

BRKR, CRCT, 15A, 125V

$31.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 187456GS

RCPTCL, 15 A, 125 V

$111.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 187436GS

CAP, FUEL

$

$

Not available

35

Briggs & Stratton 197883GS

PACKING,TANK

$14.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 187438GS

STRAINER, FUEL
(Superseded to 710065)

$18.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 197864GS

BOLT, M6X20, FLNG

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 197865GS

SLEEVE

$6.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 197832GS

TANK, FUEL

$

$

Not available

41

Briggs & Stratton 187440GS

FLTR, FUEL
(Superseded to 711550)

$8.49

$

In Stock, Qty 9

0

42

Briggs & Stratton 187443GS

VLV, FUEL
(Superseded to 711547)

$

$

Not available

43

Briggs & Stratton 187579GS

CLIP, HOSE
(Superseded to 711549)

$4.99

$

In Stock, only 1 left!

0

44

Briggs & Stratton 197845GS

CLIP, NYLN

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 197844GS

HOSE, FUEL

$15.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197561GS

MANUAL, Owners

Note: Not Illustrated

$

$

Not available

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0
