030242-0 - Briggs & Stratton 6,200 Watt Portable Generator Control Panel (191780) Parts Diagram

6,200 Watt Portable Generator

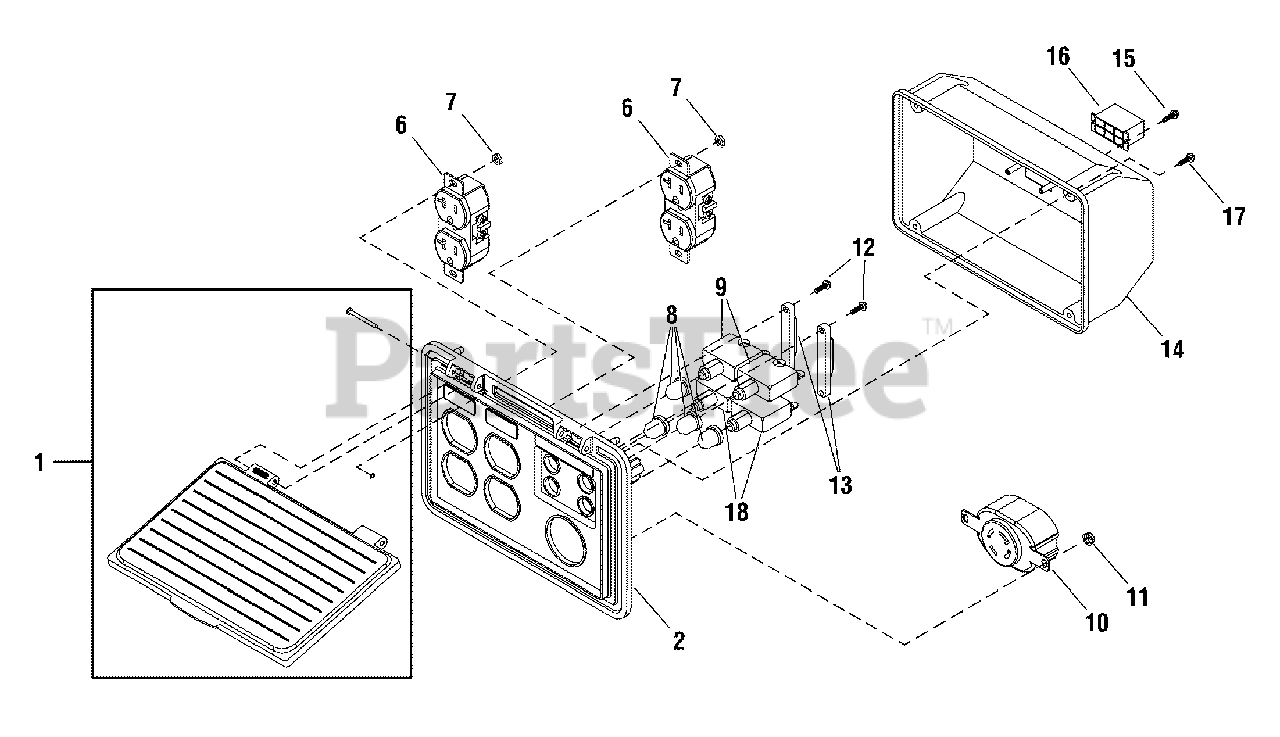

Control Panel (191780) Parts Diagram

  • Title

1

Briggs & Stratton 195112GS

COVER, Panel

$

$

Not available

2

Briggs & Stratton 191450GS

PANEL, Control

$

$

Not available

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20Amp

$24.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 189165GS

NUT, Palnut, 5/32

$3.49

$

In Stock, only 2 left!

0

8

Briggs & Stratton 84198GS

BOOT, Circuit Breaker

$4.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 43437GS

OUTLET, 120/240V TL30A

$17.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 189164GS

NUT, Palnut, 3/16

$3.99

$

Usually ships in 2-12 days

0

12

-----

* SCREW, Pan Head, M3- 0.5 x 18

$

$

Not available

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 188890GS

BOX, Control Panel

$15.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 82308GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22694GS

CONNECTOR

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192241GS

SCREW, Tapping, 3.5 x 14

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75207PGS

BREAKER, Circuit, 25A
(Superseded to 706175)

$31.99

$

Usually ships in 2-12 days

0
